*This setting requires use of “XS” (Extra Salt) cam and doubles the amount of the setting.
Splicing the Low Voltage Transformer Cord
If it is necessary to extend the length of the transformer
cord, an optional 15-foot (4.6-m) extension is available,
or the cord may be spliced as follows:
1. Strip insulation from wire 5/16 inch from wire end.
2. Insert stripped wire into barrel of connector and
crimp. For best results, crimp twice per wire as
shown in Figure 6.
Splice connectors or extension wire are not supplied.
They are available at hardware or electrical stores.
Table 1 - Suggested Salt Dial Settings (Pounds of Salt)
for Various Size Softeners
Resin Bed Volume
Capacity
Setting
Kilograins
.5 ft
3
.75 ft
3
1.0 ft
3
1.25 ft
3
1.5 ft
3
1.75 ft
3
2.0 ft
3
2.5 ft
3
124.5- ------
169.5------
20-8.56-----
24 - 14 8.5 7 - - - -
30 - - 15 11 9 - - -
32 - - 18.5 12.5 10 9 - -
35-- -1612109-
40 - - - 11.5* 17 14 12 -
48 - - - - 14* 10.5* 17 13
60 - - - - - - 15* 10.5*

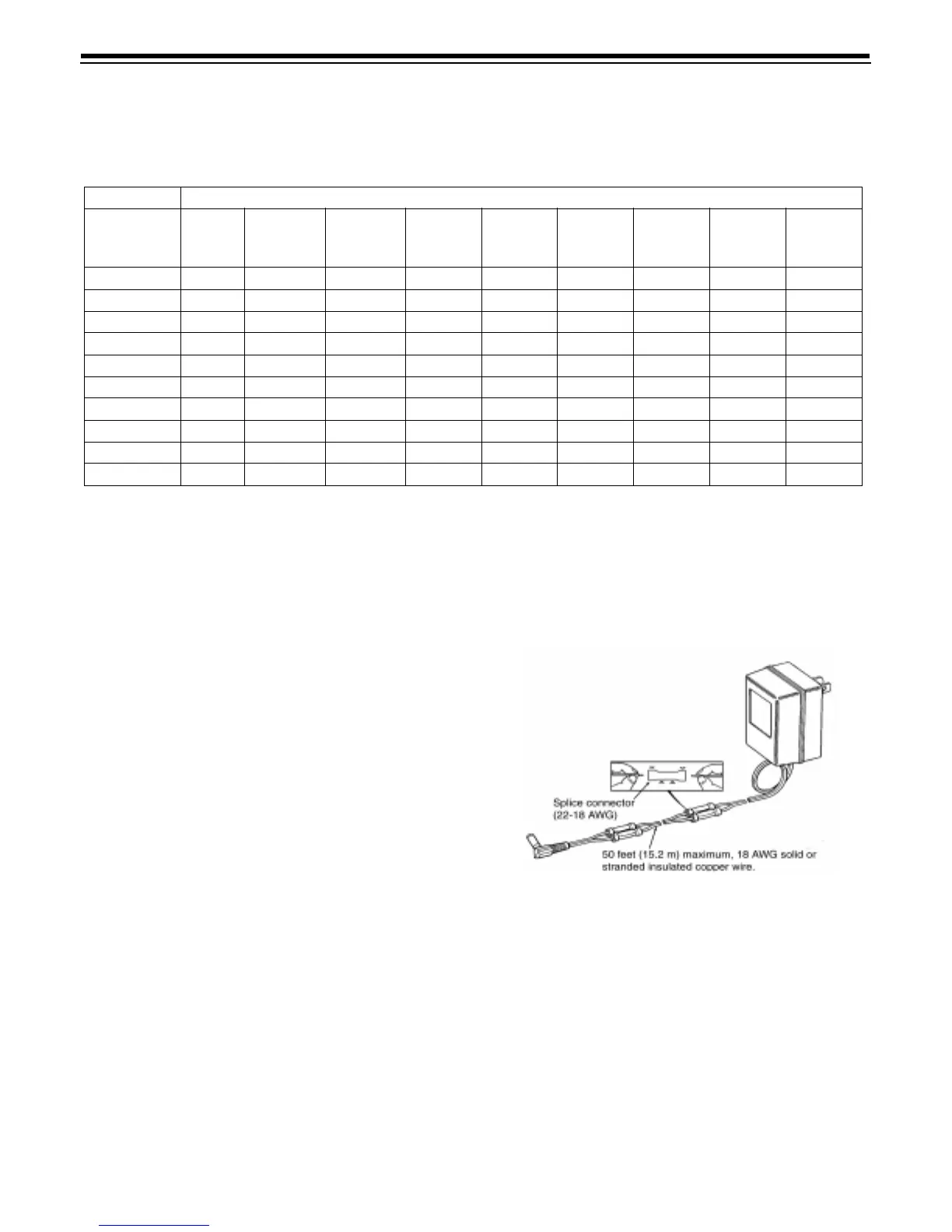

Figure 6
