3 METERS
MAXIMUM HEIGHT
1 METER
OR BELOW
FROST LINE
NOTE: INSTALLATIONS NEAR MAXIMUM HEIGHT TYPICALLY REQUIRE
BRACING TO ENSURE NO MOVEMENT OF THE HC800 DETECTOR.
A2666
IMMOVABLE
STRUCTURE

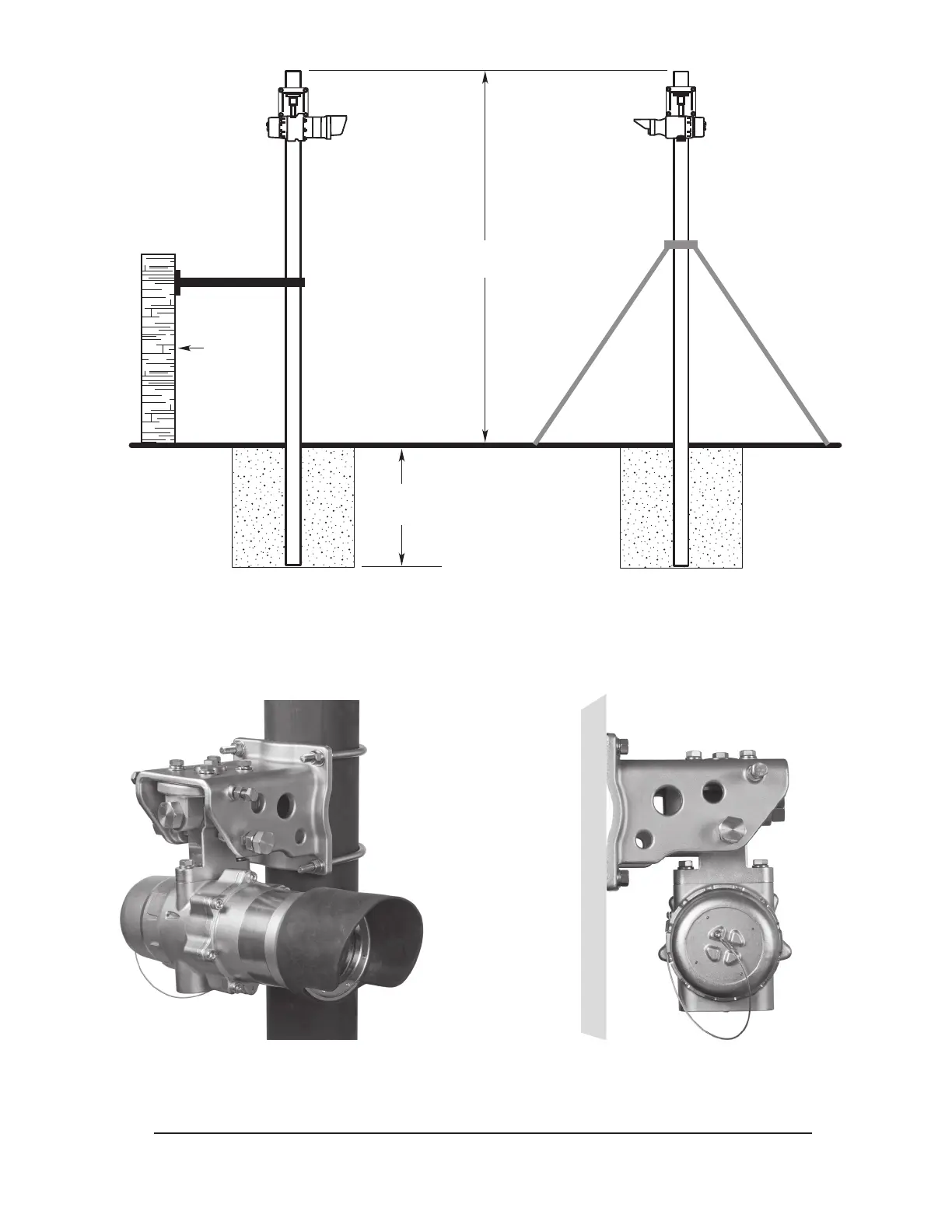

Figure 8—Example of Bracing Added to Vertical Mounting Poles for Increased Robustness of AutroPath HC800 Installation
Figure 9—AutroPath HC800 Gas Detector Mounted to Vertical Post
Figure 10—AutroPath HC800 Gas Detector Mounted to Flat Surface
(Refer to "Dimensions" in the “Specications” section for mounting
plate hole spacing dimensions.)
