AUX AM Series - Outdoor Unit Installation

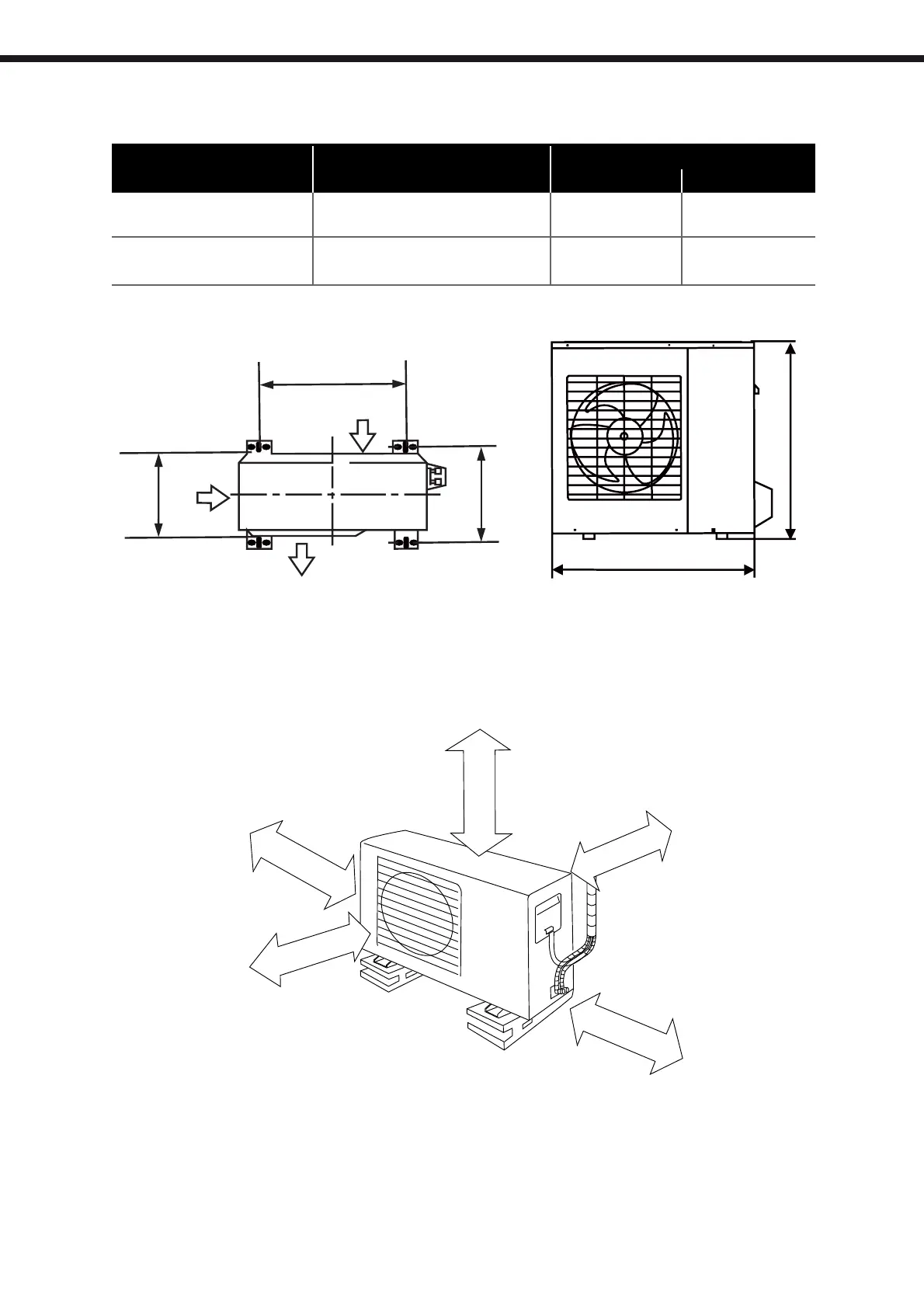

Dimensions
OUTDOOR UNIT INSTALLATION
Space for installation and maintenance
> 60 cm
> 60 cm
> 30 cm
> 30 cm
> 200 cm
O utdoor unit dimensions
W x H x D
Installation dimensions
Lenght A (mm)
Lenght B (mm)
824 x 655 x 302 540
334
AM2 (2 to 1)
Unit
AM3 (3 to 1)
824 x 655 x 302 540
334
W
A
B
D
Air inlet
Air outlet
H
Air
inlet
37
