AUX AM Series User Manual

DESCRIPTION AND OPERATING INSTRUCTIONS

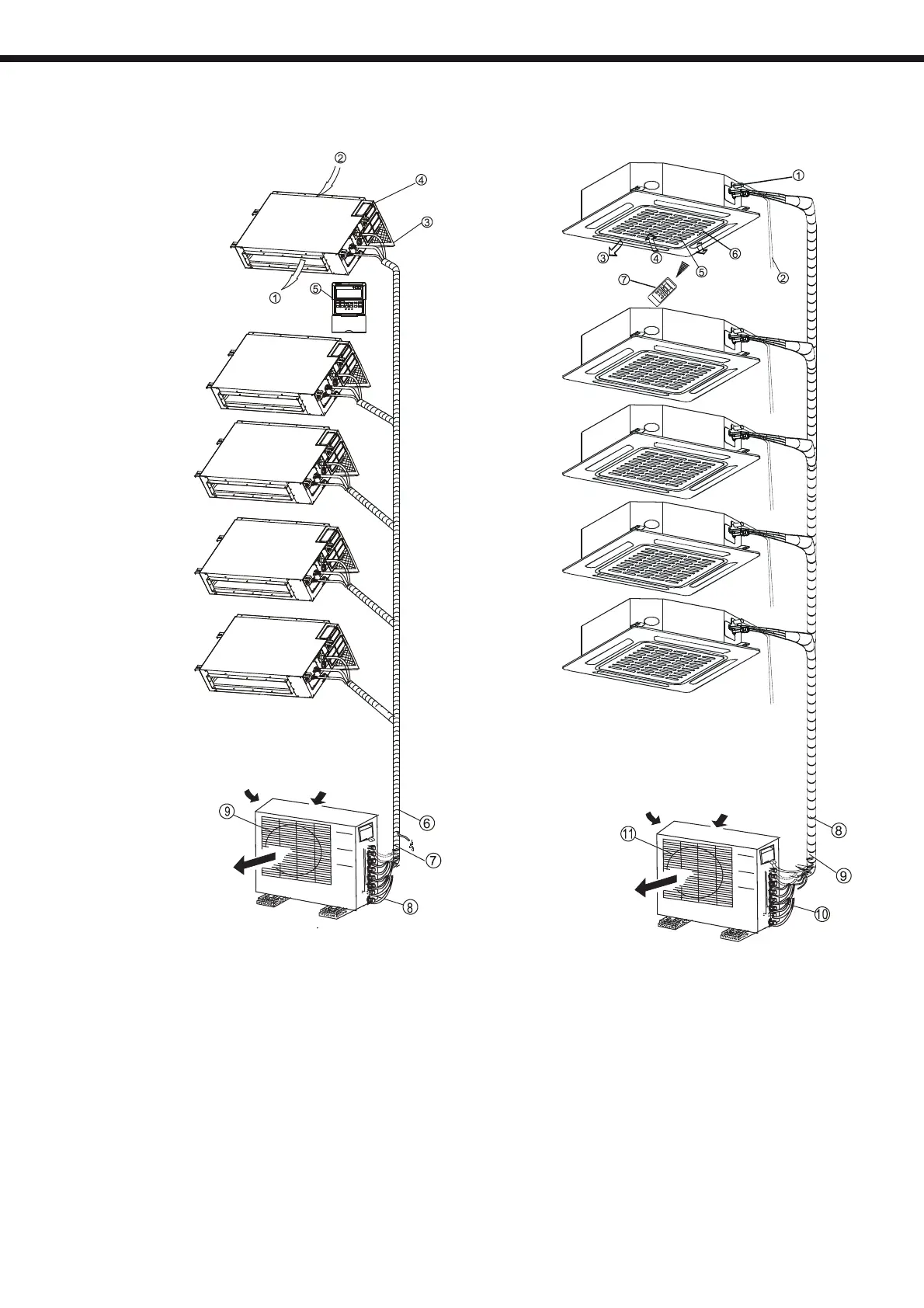

1. Air outlet
2. Air inlet
3. Air lter
4. Electric control cabinet
5. Wire controller
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood
b) Duct
1. Drain pump (drain water from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote controller
8. Refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood
Indoor unit
Outdoor unit
Outdoor unit
Indoor unit
c) Cassette
Unit C
Unit A
Unit B
Unit D
Unit E
Unit C
Unit A
Unit B
Unit D
Unit E
45

AUX AM Series Specifications

General

Type	Inverter
Power Supply	220-240V, 50Hz
Refrigerant	R410A
Noise Level (Outdoor Unit)	50 - 60 dB
Operating Temperature (Cooling)	18°C - 43°C
Operating Temperature (Heating)	-15°C - 24°C
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Warranty	1-2 years
