Stove Installation (for qualified installers only) 9
© Travis Industries 100-01190_003 4100818

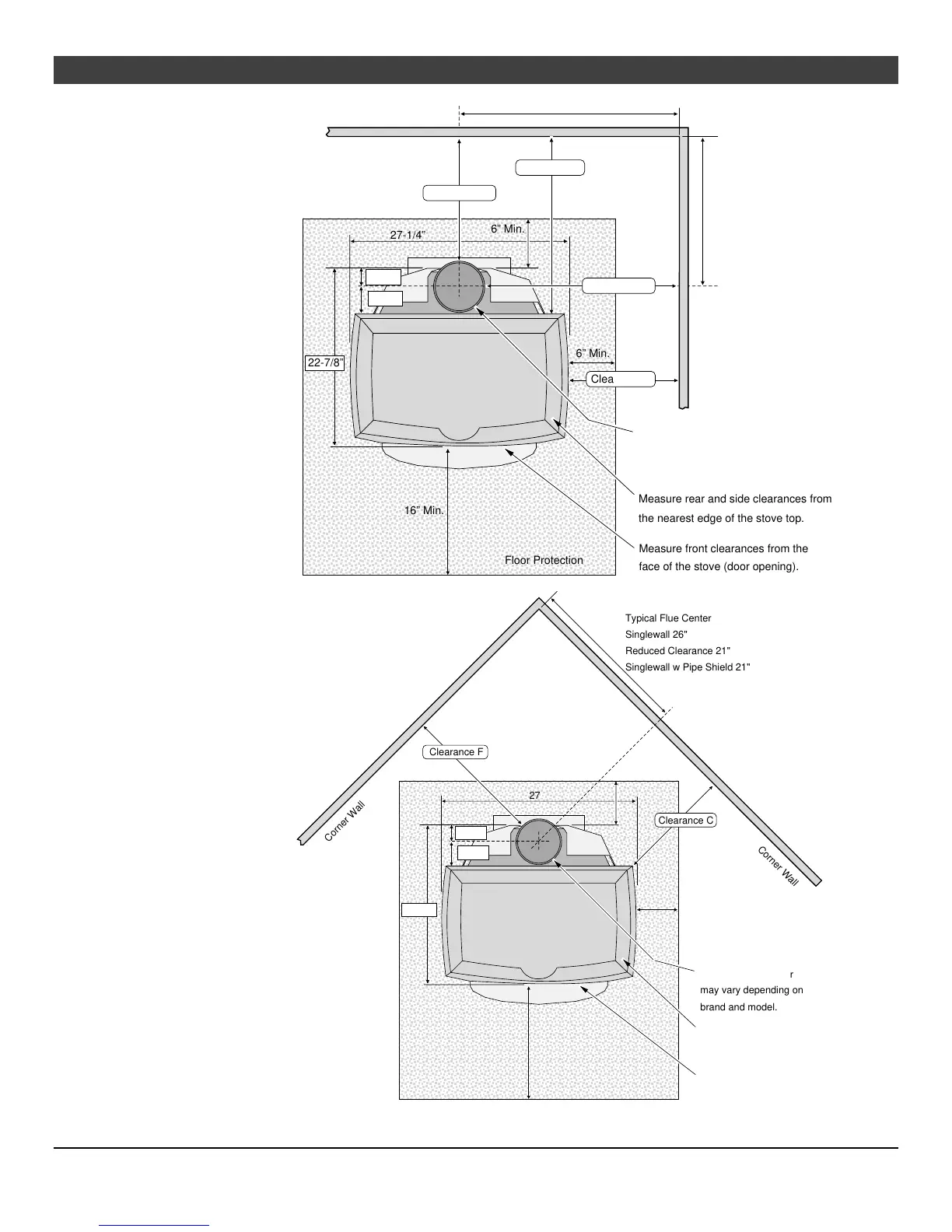

Top View -
Straight Installation
Measure rear and side clearances from
the nearest edge of the stove top.
Floor Protection
27-1/4”
22-7/8”
16” Min.
Measure front clearances from the
face of the stove (door opening).
6” Min.
6” Min.
Clearance A
NOTE: vent diameter
may vary depending on
brand and model.
Clearance E
Clearance B
Back Wall
Side Wall
2-5/8”
Clearance D
Typical Flue Center
Singlewall 24"
Reduced Clearance 17.5"
Singlewall w Pipe Shield 14"
Minimum Flue Center 31-3/4"
3-1/4”
Figure 2
Top View -
Corner Installation
Floor Protection
16” Min.
6” Min.
6” Min.
Measure rear and side clearances from
the nearest edge of the stove top.
Measure front clearances from the
face of the stove (door opening).
NOTE: vent diameter
may vary depending on
brand and model.
Corner Wall
Corner Wall
Clearance C
Clearance F
Typical Flue Center
Singlewall 26"
Reduced Clearance 21"
Singlewall w Pipe Shield 21"
27-1/4”
22-7/8”
2-5/8”
3-1/4”
Figure 3
