AVANT 650 - Page 12

12 (34)

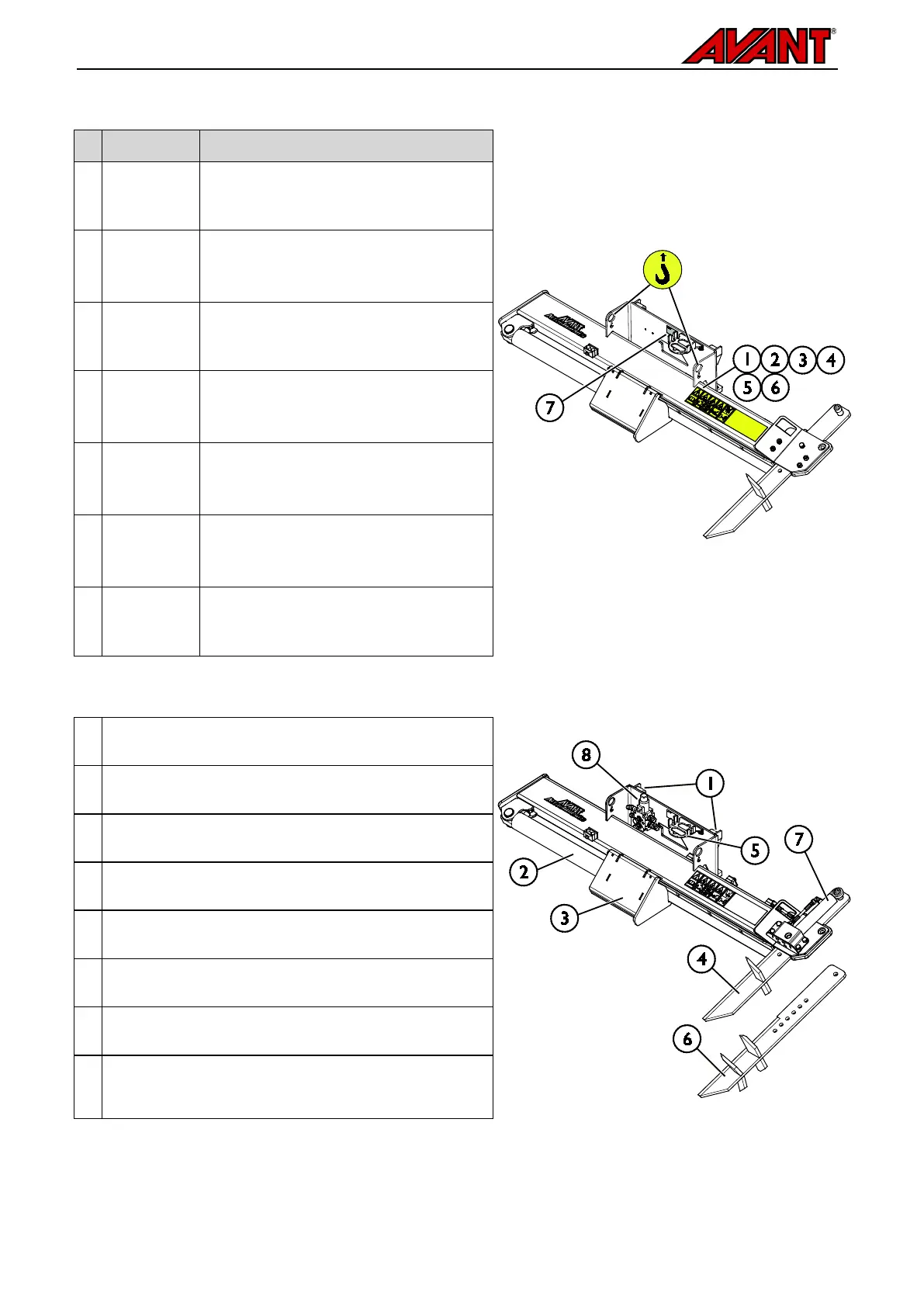

Table 3 - Decal locations and warning messages
Decal Warning message
1 A46771 Misuse hazard - Re
ad instructions before
use.
2 A46772 Crushing hazard -
Do not go under a
raised attachment; stay away from raised
equipment.
3
A46803
Crushing hazard, moving components.
Keep clear of moving components.
4
A46749
Severing hazard, sharp and strong
blad
es. Follow safe stopping procedure
before going near the attachment.
5
A46797
Crushing hazard in the reach and swing
area of the attachment, keep bystanders
away from danger area.
6
A447611
Beware of thrown objects; keep a safe
distance of 10 meters fr
om the
equipment.
7
A447207
Attachment identification plate
. ..
Table 4 - Log splitter 650 - Main components
1 Frame with Avant quick coupling brackets
2 Cutting blade hydraulic cylinder
3
Carriage
4
Splitting wedge
5
Multiconnector holder
6
6 way blade (Optional extra)
7
Hydraulic blade adjustment (Optional extra)
8
Selector valve for hydraulic blade adjustment
(Optional extra)
