20 (34)
Fitting the hydraulic components:
1.
Pre-assemble the selector valve at a clean location. The components are oily for storage. L
fittings loose and keep the screws ready.

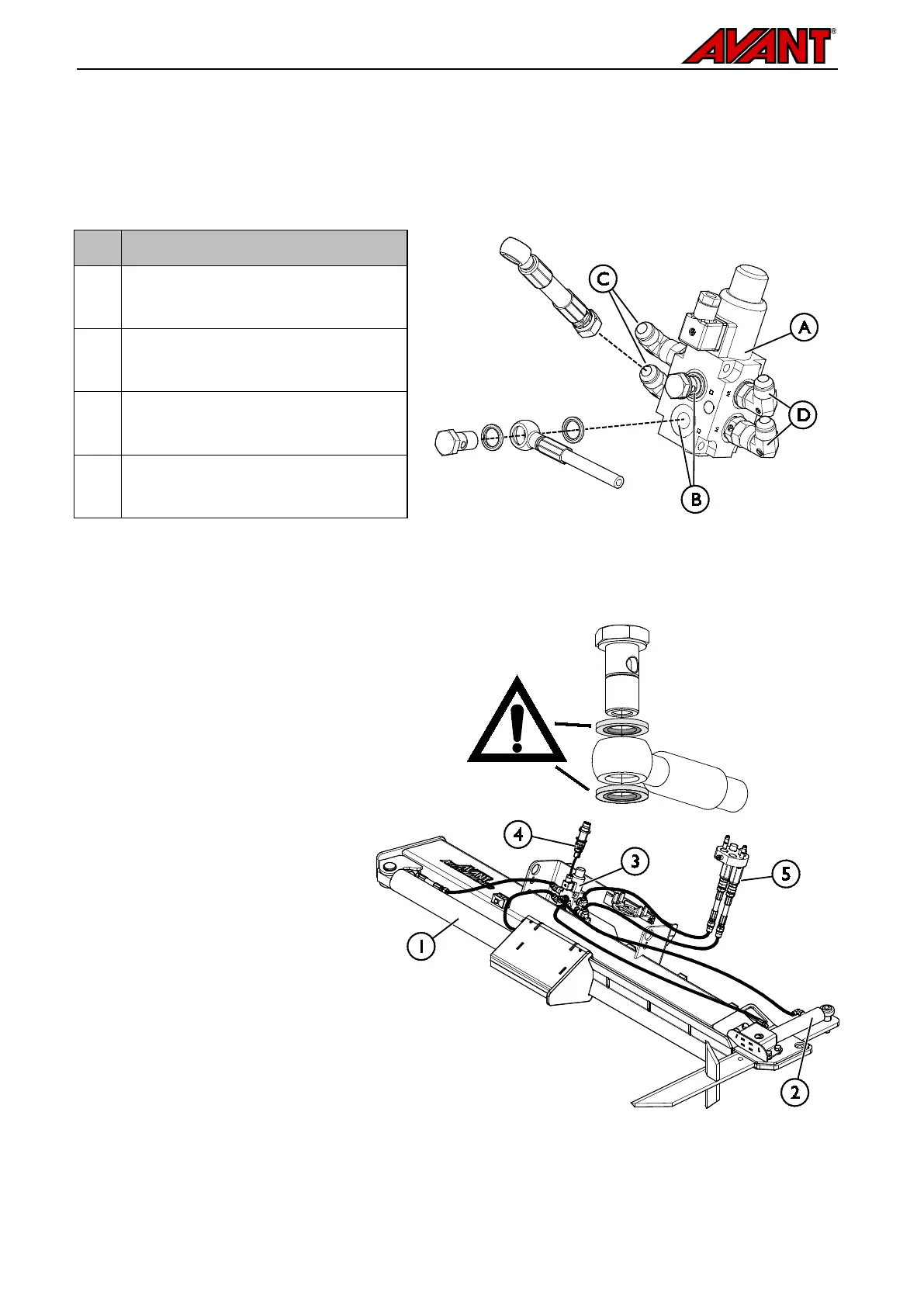

Table 6 - Component list - Selector valve assembly
Part Name
A (3) Selector valve
B
Fittings for hydraulic adjustment
cylinder
C Fittings for splitting cylinder
D Fittings for multi connector
2.
Disconnect the splitting cylinder (1) hoses from near the hose clamp at the quick attach plate and loosen
the clamps. Also remove the connector nipples from the hoses.
3. Fix the cylinder of the hydraulic adjustment (2) as shown in the figure below.
4.
Fit the hydraulic hoses to the the
cylinder of the hydraulic adjustment
(2); note the seals shown in the
adjacent figure.
5.
Bolt the selector valve (3) to the
holes of the quick coupling plate.
6.
Connect the hoses as shown in figure
in Table
5. Note the tightening
instructions of hydraulic fittings
shown below.
7.
Connect the first part of the electric
harness (4) to the selector valve (3),
and pass the cable within the
protective plastic spiral of hydraulic
hoses so that the connector will
reach the connector of the loader,
along with the hoses.
