Avantco MX20 - Parts Overview

User Manual
www.AvantcoEquipment.com 3
ITEM DESCRIPTION
1 Cover
2 Rear Cover
3 Safety Guard
4 Mixing Device
5 Bowl Lift Wheel
6 Bowl
7 Power
8 Speed
Notes:
• Do not hose down mixer.
• Do not operate the mixer with wet
hands.
• Unlpug mixer from electrical sup-
ply prior to any maintenance or
repairs.
32
TRANSMISSION CASE
FIGURE 1
PARTS CATALOG OVERVIEW
ITEM DESCRIPTION QTY
1 Screw M6*45 1
2 Cover 1
3 Screw M5*8 4
4 Cover 1
5 Bearing 6201 2
6 Screw M6*25 4
7 End Cover 1
8 Body 1
9 Screw M5*8 3
10 Cover 1
11 Bearing 6003 1
12 Rear cover 1
NOTES:
• The factory has provided superior
lubricant for several years of use. If
the mixer is repaired please ensure
that the service technician replaces
any lubricant lost or removed.
• Please lubricate bearings before
refitting bearing covers.
ITEM DESCRIPTION
1 Cover
2 Rear Cove
r
3 Safety Guard
4 Mixing Device
5 Bowl Lift Wheel
6 Bowl
NOTES:
• Do not hose down mixer.
• Do not use wet hands while
operating the mixer.
• Unlpug mixer from electrical
supply prior to any
maintenance or repairs.

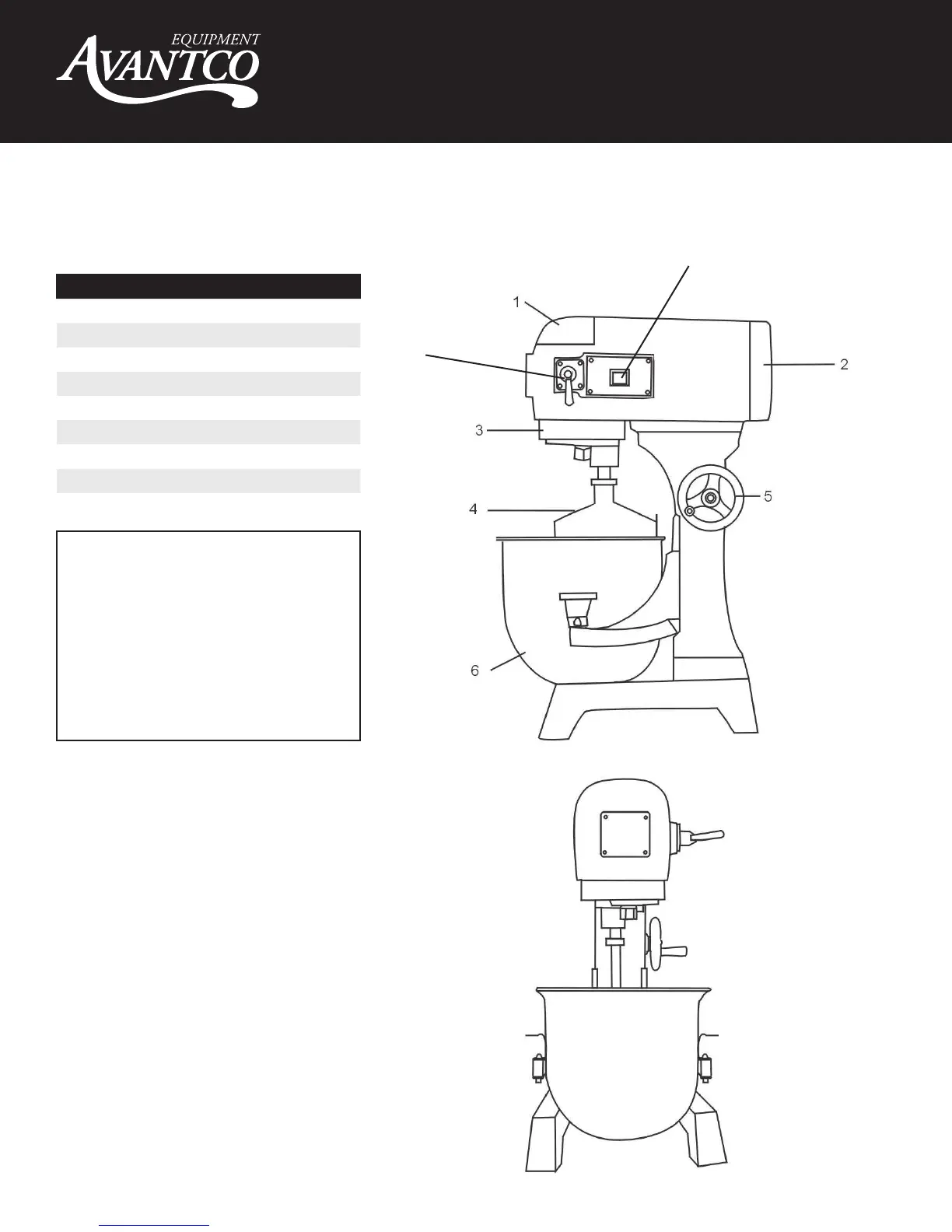

Parts Overview
7
8
