PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dishwasher into the opening and get ready to connect all hoses and electrical
connections.
CAUTION

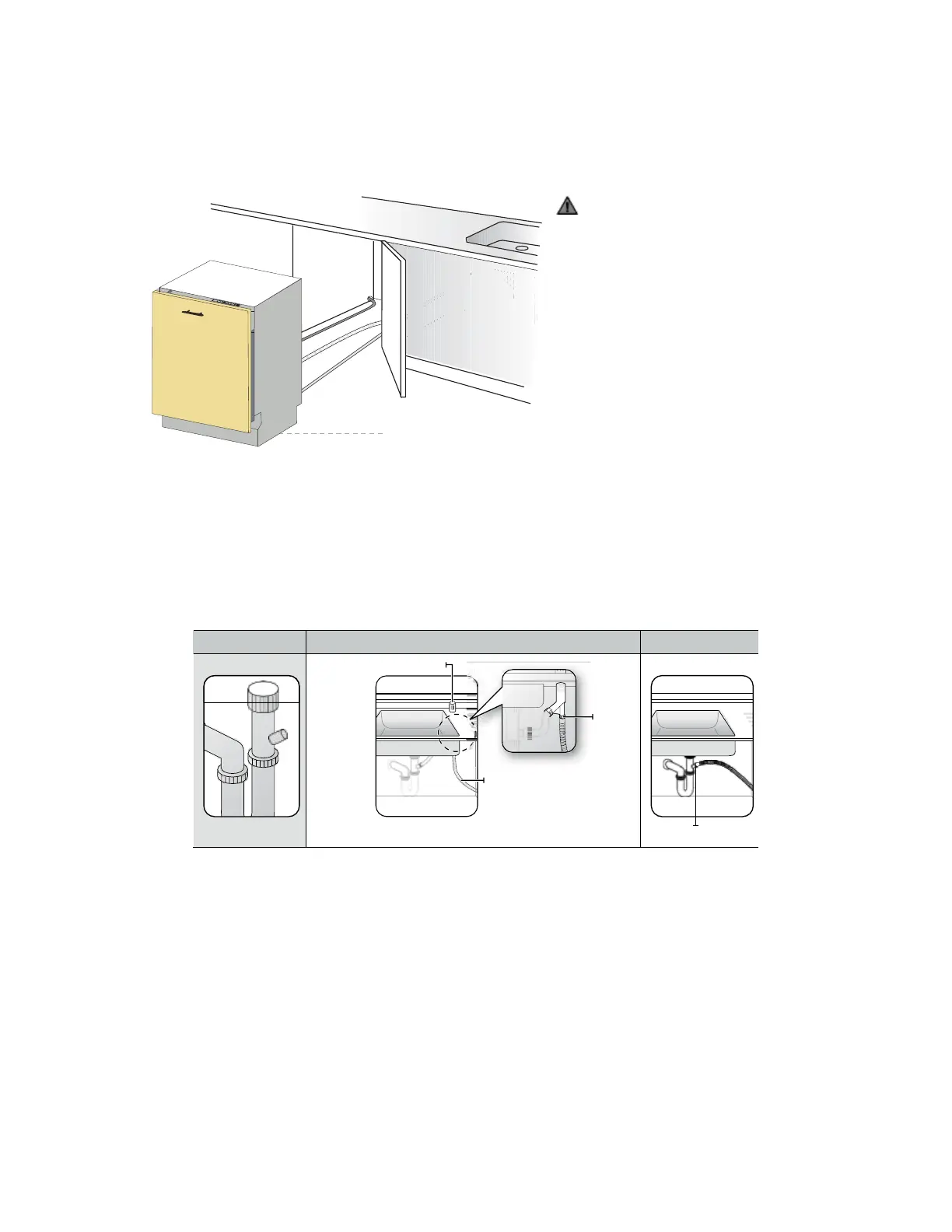

Make sure all hoses are pulled
through the side opening of the
cabinet, no hoses are kinked and
all slack is taken out as shown in
the figure.
DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
DRAIN HOSE CONNECTION
1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the sink, as
shown in the following figures. You must connect the drain hose in accordance with the water pipe
installation regulations in your region.
Garbage disposal With an air gap
Without an air gap
Air gap
Drain hose
Hose clamp
Hose clamp
A. Without disposal
