AVANTREK Macrover100 - Install the Front Wheel

disc brake
goes into the
brake caliper
brake caliper
- 07 -

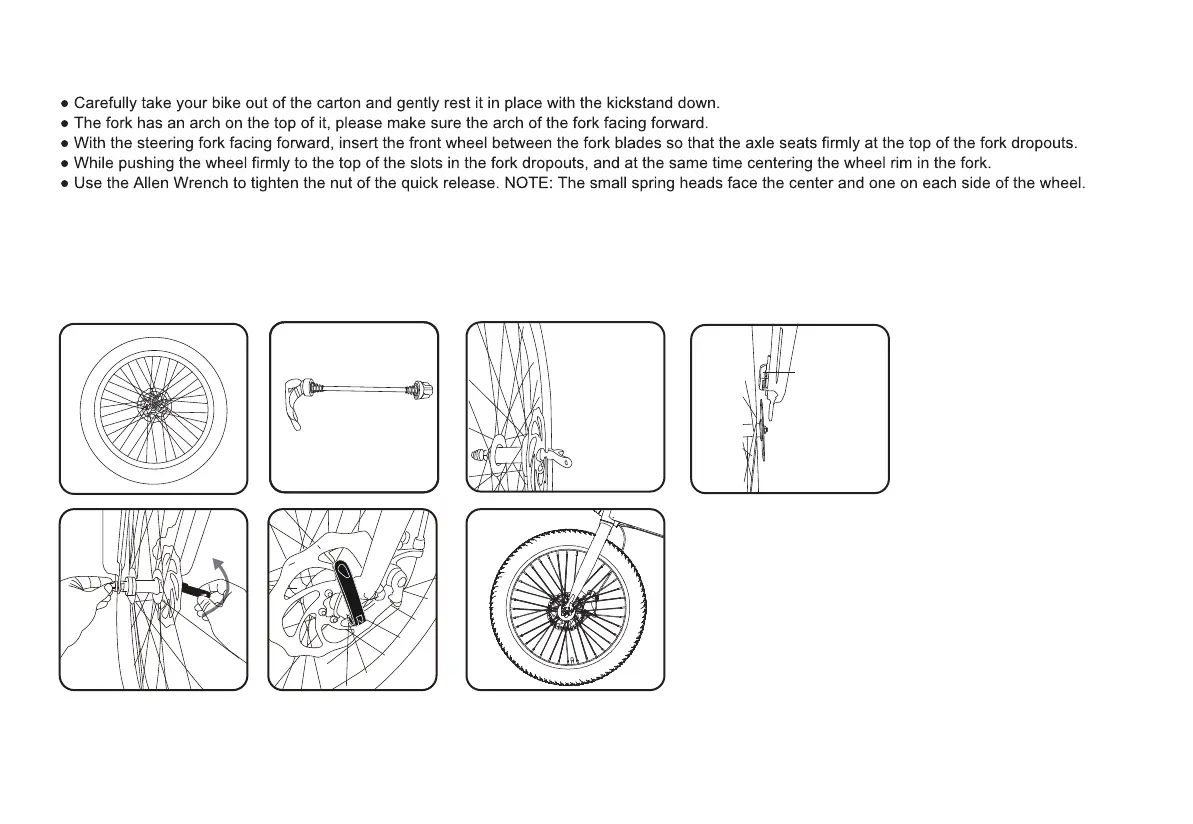

Step 3. Install the front wheel
Warnings:
Your Macrover 100 is equipped with a front disk brake. Be careful not to damage the disk, caliper or brake pads when reinserting the disk into the
caliper. Never activate a disk brake’s control lever unless the disk is correctly inserted in the caliper.
Each side
of the wheel
has one
cone
spring only
