Avid Power ACAP110D - Parts List and Schematic Drawing; Component Identification; Schematic Diagram

No. Description
1 Absorber
2 Left Housing
3 Digital Gauge
4 Buckle
5 Absorber
6 Air Pump Assembly
7 Self-locked Switch
8 Torsional Spring
9 Trigger
No. Description
10 Right Housing
11 Screw
12 Screw
13 Led Cover
14 Cylindrical Lamp
15 Fan
16 Motor
17 Control Board
18 Battery Clip Assembly
15

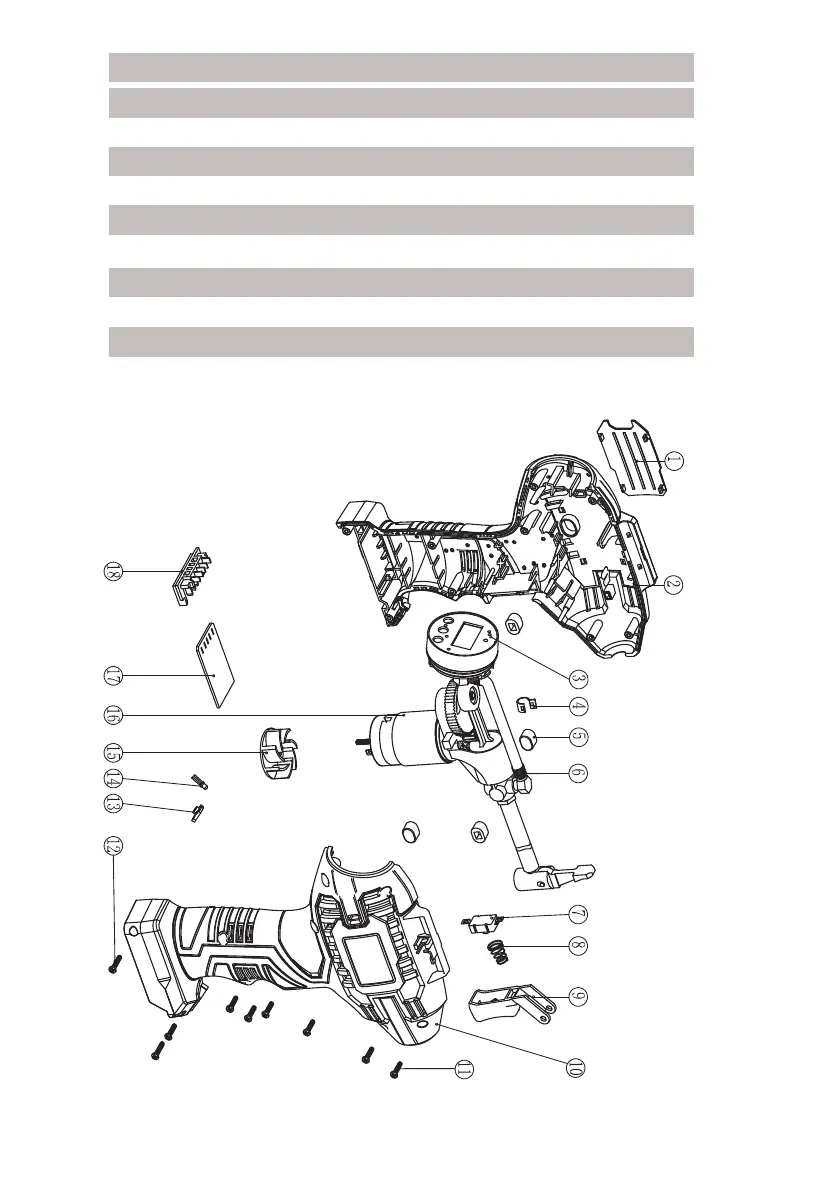

PARTS LIST AND SCHEMATIC DRAWING
