01/05/2018 TECH-537/ D.W.O. 23142 Page 10 of 21

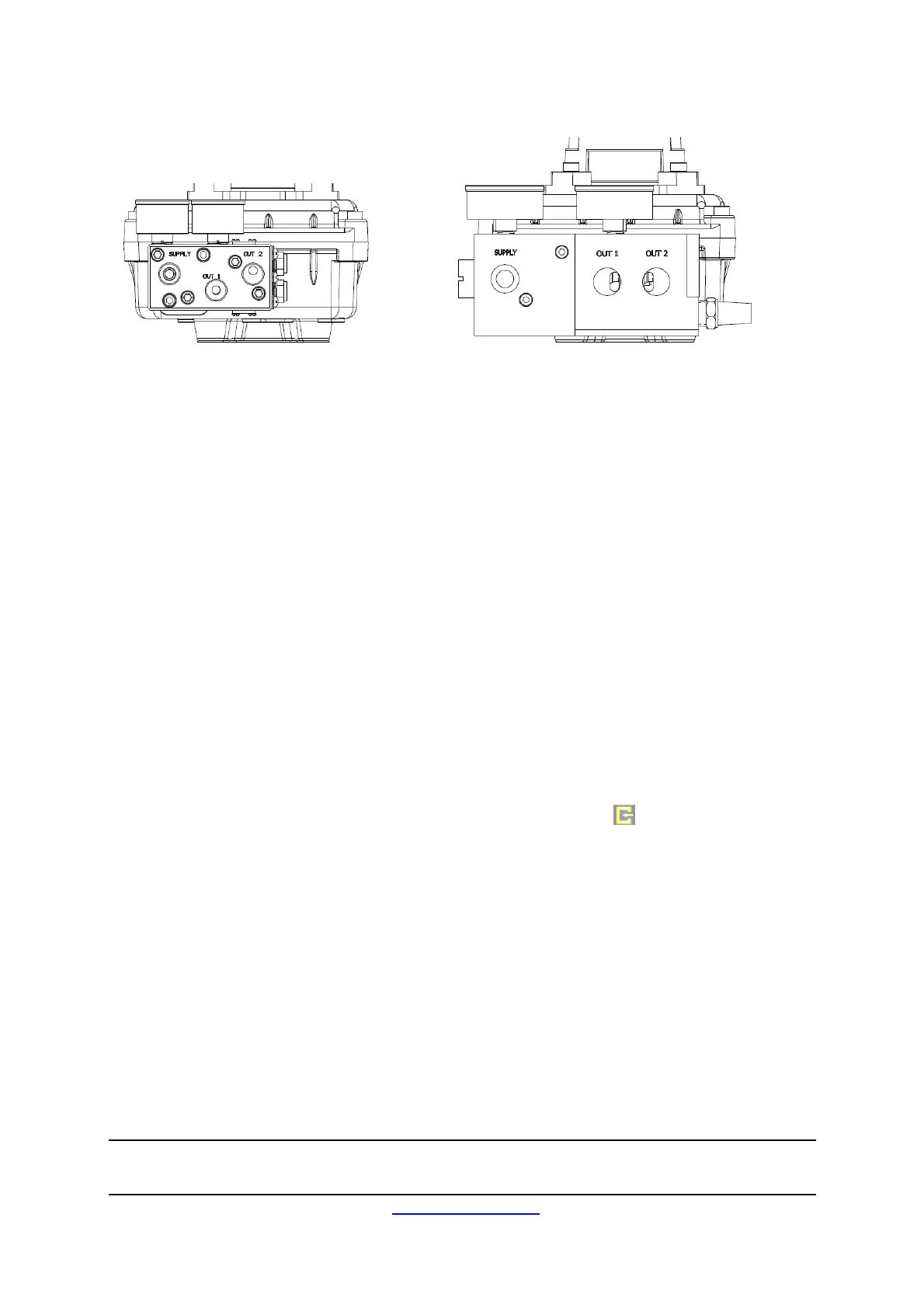

Figure 3 Standard Flow Manifold Figure 4 High Flow Manifold
4.3 Calibration
There are 3 auto calibrate modes (all modes auto calibrate the Transmitter)
o Auto Calibration for 4mA to 20mA.
o Calibration for Low current calibration other than 4mA.
o Calibration for High current calibration other than 20mA.
4.3.1 Auto Calibration for 4mA to 20mA operation
This is a two Key auto calibration that defines 4mA for the valve being fully closed and
20mA for valve being fully open. The Transmitter Function is being automatically
calibrated during this procedure.
Time for the first move in calibration will be set at a maximum of 30 seconds for REG CAL
and all subsequent time outs are keyed off the time it takes to go from closed to open, to
create much shorter subsequent time outs for smaller valves. The initial 2 minute time
out can be lengthened in the Manual Calibration routine Long CAL.
Press
SEL
Key until the Display shows “AUTO CAL” then press Key.
Auto calibration will occur for 4mA low current and 20mA high current.
The display will show:
AUTO CAL
STARTED
LOW CAL The valve is closed and the closed position recorded.
HIGH CAL The valve is opened and the open position recorded.
GAIN The valves best gain setting is found.
CALIBRATION SUCCESS
XX % Percent valve opening for forward acting / closing for reverse acting.
