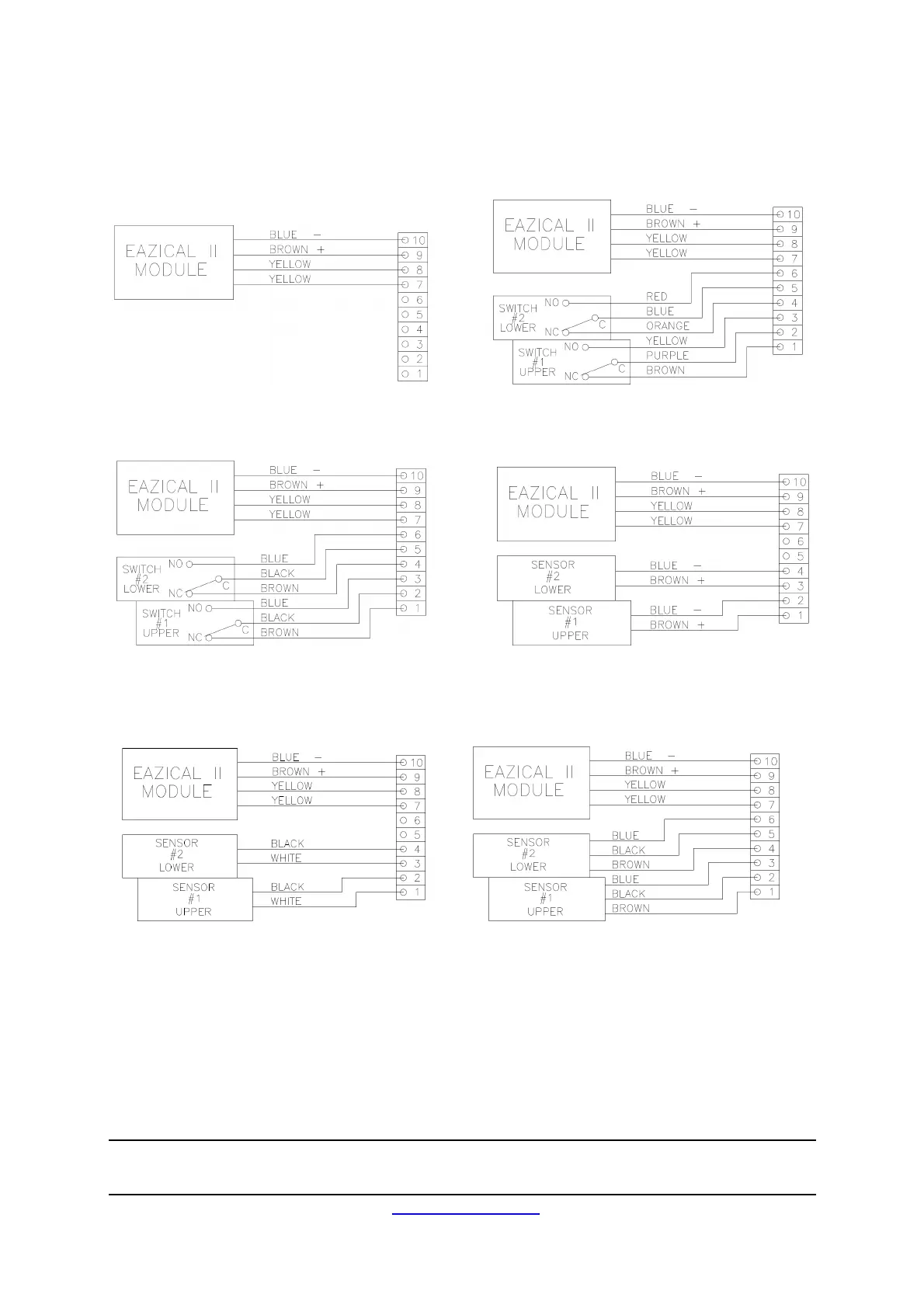

Wiring Diagrams:
Figure 6 - No Switch option Figure 7 - SPDT mechanical switches
Figure 8 - SPDT T-Switch proximity switch Figure 9 - Namur Inductive proximity
sensors
Figure 11 – Ind. Prox Sensors (IFM IS5026) Figure 12 - Ind Prox Sensors
(IFM IS50011/P&F NBB2-V3-E2-3G-3D)
