AUDIO HANDSET
B - PRODUCT DESCRIPTION
3 - DOORPLATE
1
2
5
3
4

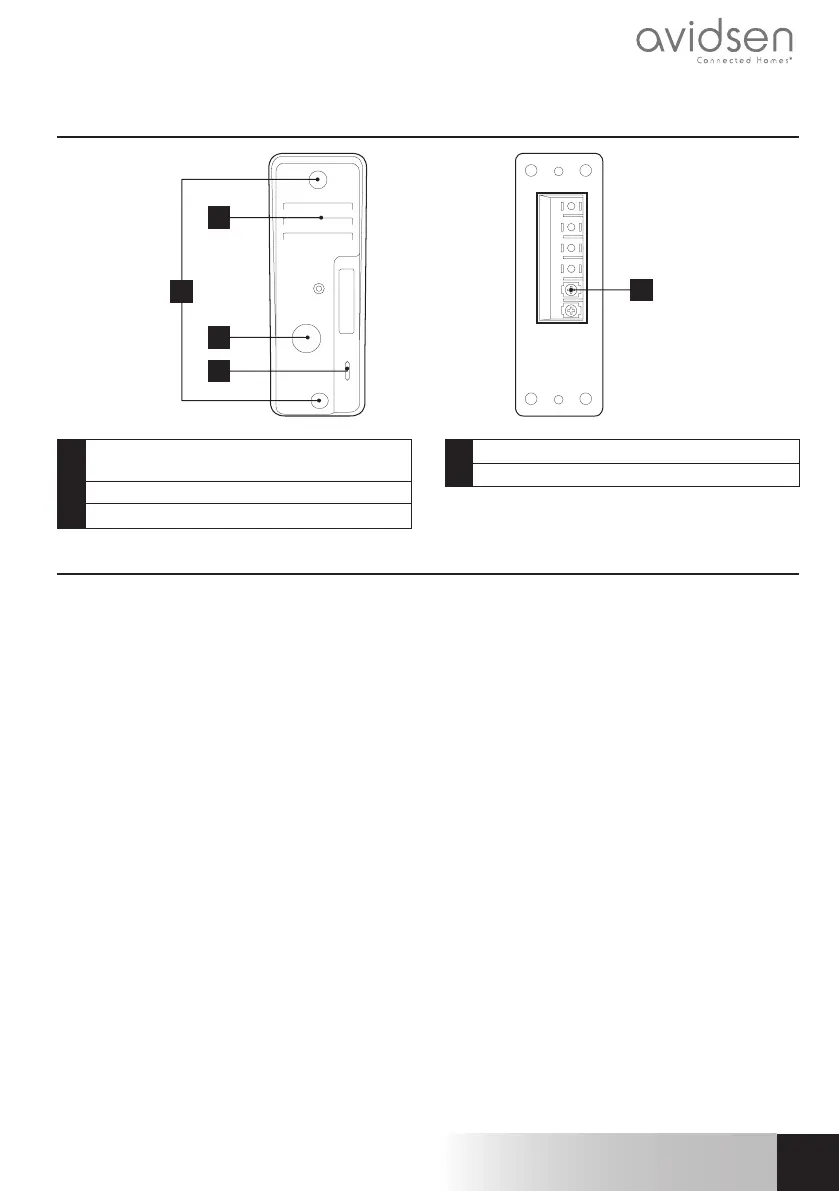

1 Position of the screws for wall mounting
the doorplate
2 Loudspeaker
3 Call button
4 Microphone
5 Connection terminals
4 - MAINS ADAPTER
The 12 Vdc 0.5A mains adapter provided is for the electrical supply to the handset. Do not use other power
supplies as they could cause irreparable damage to the device and invalidate the warranty.
Do not cut or shorten the wire of the mains adapter or the warranty will be void.
The mains adapter is not provided for the electrical supply to the electric strike plate, a mains adapter (not
supplied) must be used for the electrical supply to the electric strike plate (see paragraph "connections").
