C - INSTALLATION
AUDIO HANDSET

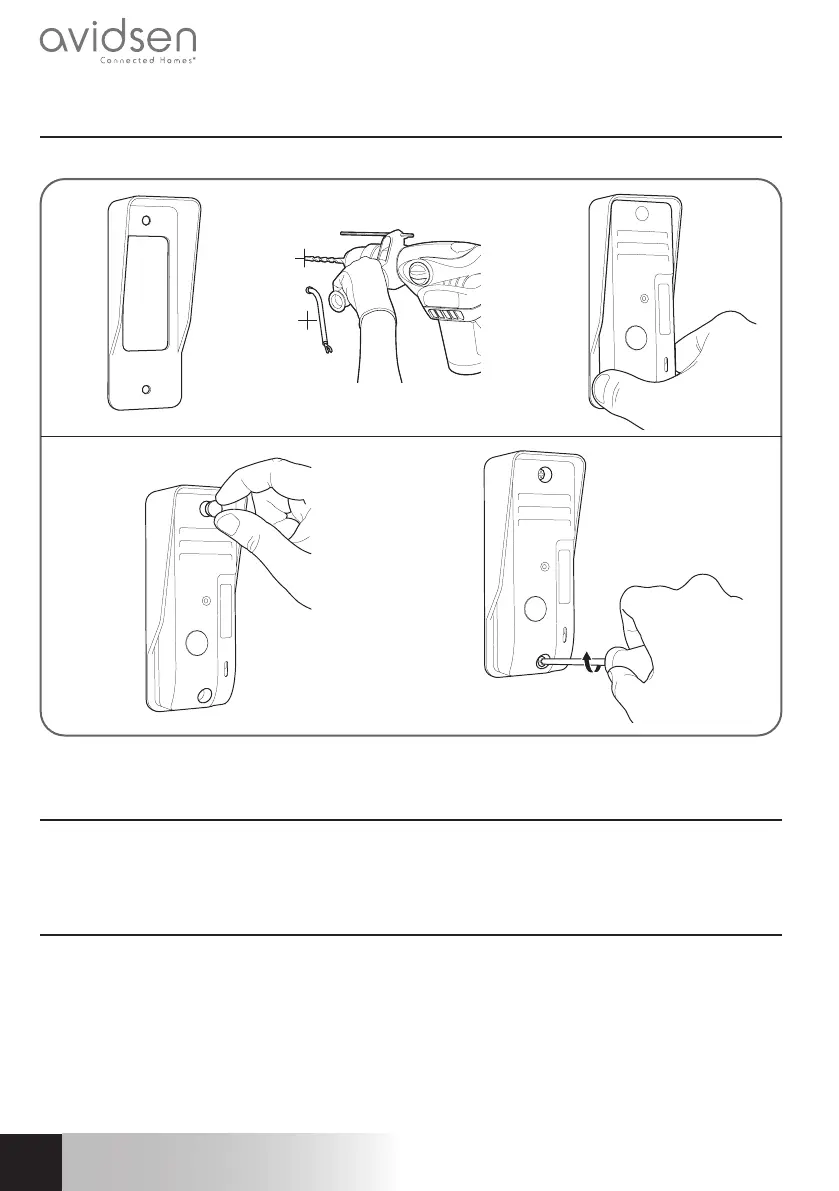

1 - DOORPLATE INSTALLATION
Attach the doorplate hood to your support using the screws and wall plugs suited to the support.
ø6 mm
After making the connections on the doorplate (see the connections paragraph), position and screw the
doorplate into the hood.
2 - HANDSET INSTALLATION
Attach the handset to the wall using screws and wall plugs suitable to the support.
Once the handset connections have been made (see paragraph "connections"), attach the handset to
the wall.
3 - CONNECTIONS
• Do not increase the number of insulating screw joints or connectors on the connecting wire between the
doorplate and the handset.
• Keep the connecting wire between the doorplate and the handset more than 50 cm away from any
electromagnetic interference (230 V cable, WiFi device, microwave ovens, etc.)
• You can connect an automated gate or an electric strike plate (not provided)
