2
English

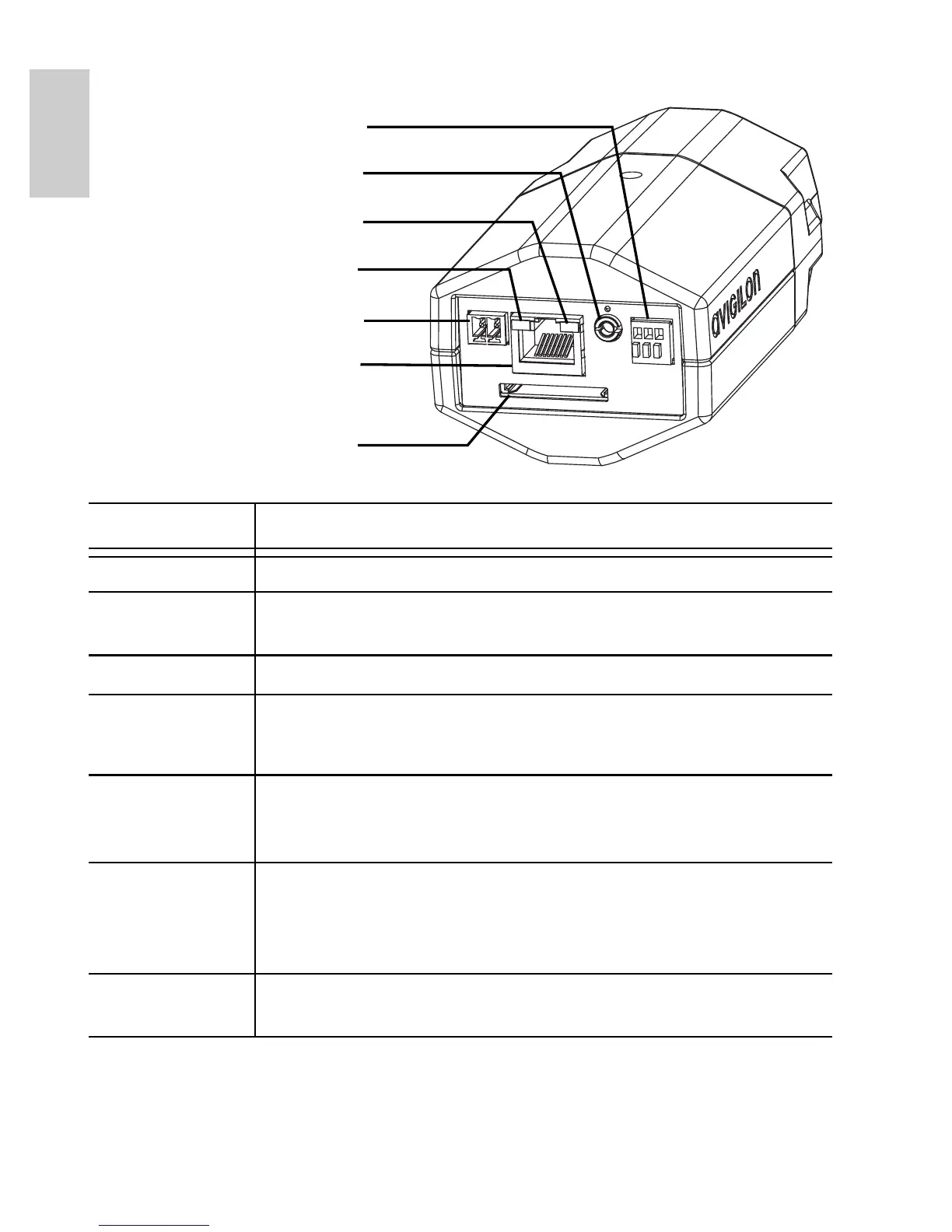

Rear View
Feature Description
I/O Terminals Provides connections to external input/output devices.
Audio/Video
Connector
Accepts a mini-jack connector (3.5 mm). See the section about
connecting microphones and monitors for more information.
Link LED Indicates if there is an active connection in the Ethernet port.
Connection
Status LED
Provides information about device operation. See LED
indicators for more information.
Power
Connector Block
Accepts a terminal block with either AC or DC power
connection. DC input can be either polarity. Only required
when Power over Ethernet is not available.
Ethernet Port Accepts an Ethernet connection to a network. Server
communication and image data transmission occurs over this
connection. Also receives power when it is connected to a
network that provides Power over Ethernet.
SD Card Slot Accepts an SD card for onboard storage. See (Optional)
Configuring Onboard Storage for more information.
Connection Status LED
Link LED
Power Connector Block
Ethernet Port
Audio/Video Connector
I/O Terminals
SD Card Slot
