ASSEMBLY
ASSEMBLY
|
V-BRAKE

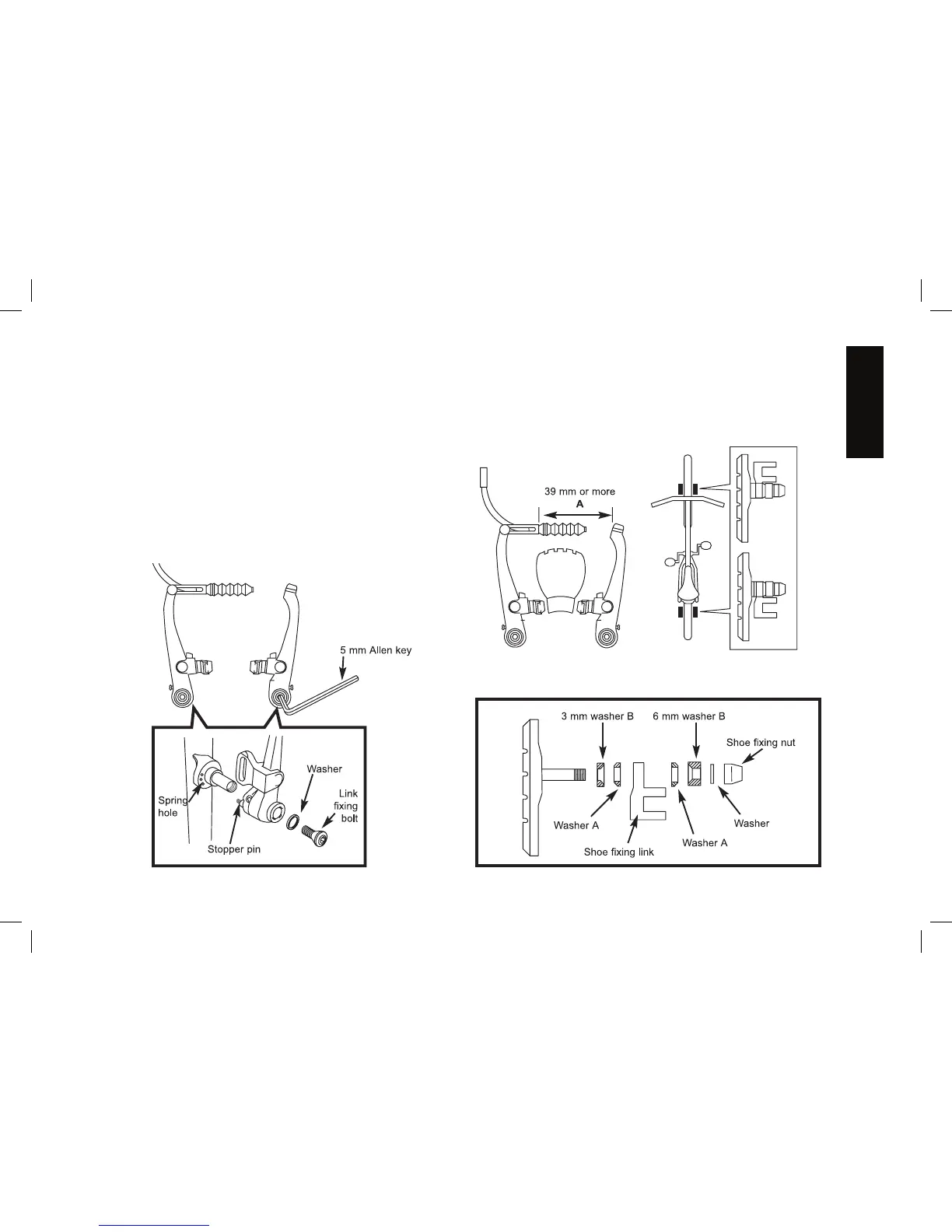

1. If fitted with V-Brakes, insert the brake body into the
center spring hole in the frame mounting boss, and
then secure the brake body to the frame with the link
fixing bolt.
2. While holding the shoe against the rim, adjust
the amount of shoe protrusion by interchanging the
position of the B washers (i.e. 6 mm and 3 mm) so that
dimension A is kept at 39 mm or more.
