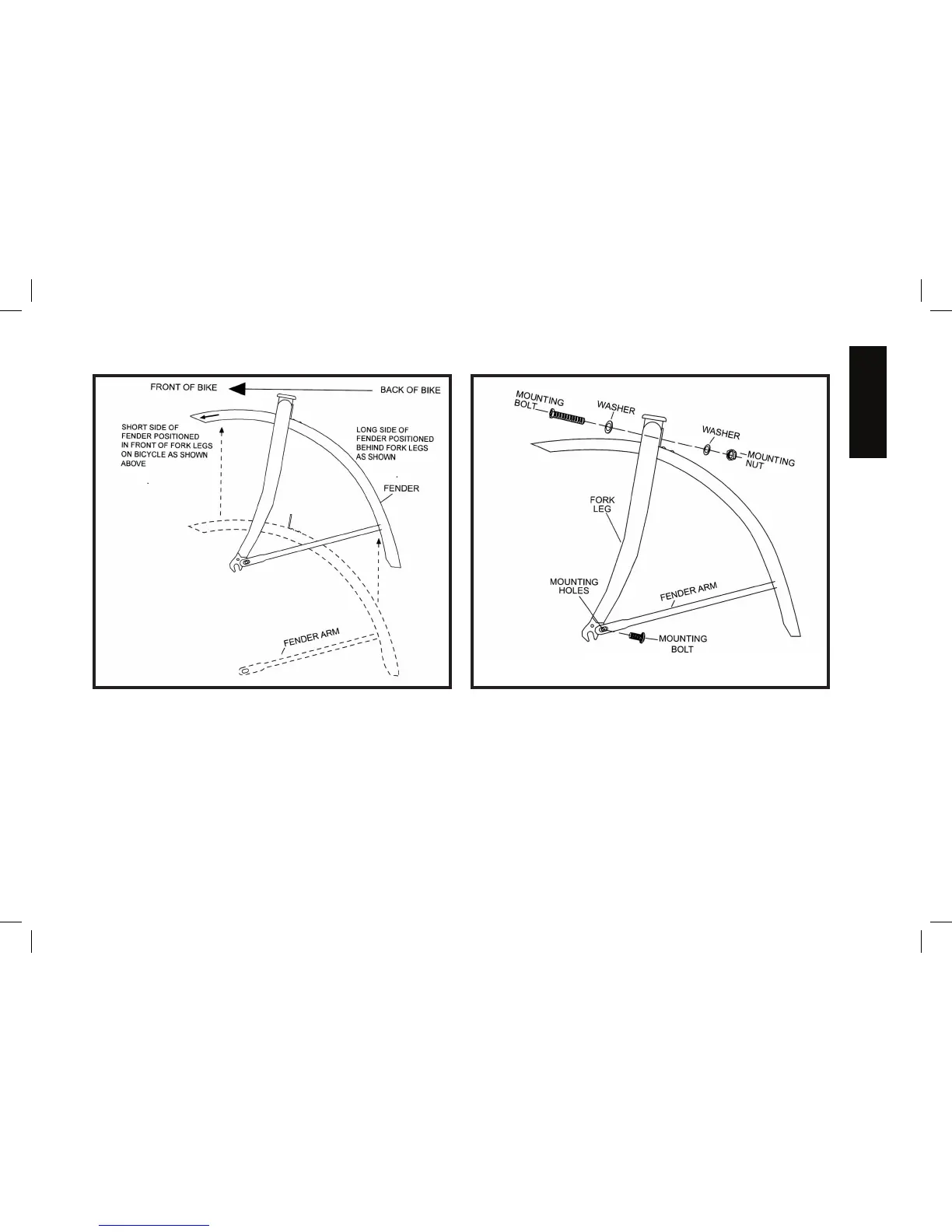

FRONT FENDER ASSEMBLY FOR REGULAR FORKS
1. Install preassembled fender into fork legs facing
forward with fender bracket positioned behind
the fork.
2. Slide a washer onto the mounting bolt and insert
through fork and fender bracket. Place the other
washer onto the mounting bolt and secure the
mounting nut as shown above.
3. Attach fender arms (align the fender arm holes with
the mounting holes on the fork end). Then insert the
mounting bolts through the fender arm holes to secure
the bolts into the fork holes.
4. Attach front wheel (shown on page 26) with retaining
washer in place and axle nuts tight.
NOTE: Be certain that all fender bolts and nuts are
tightened prior to riding.
