10

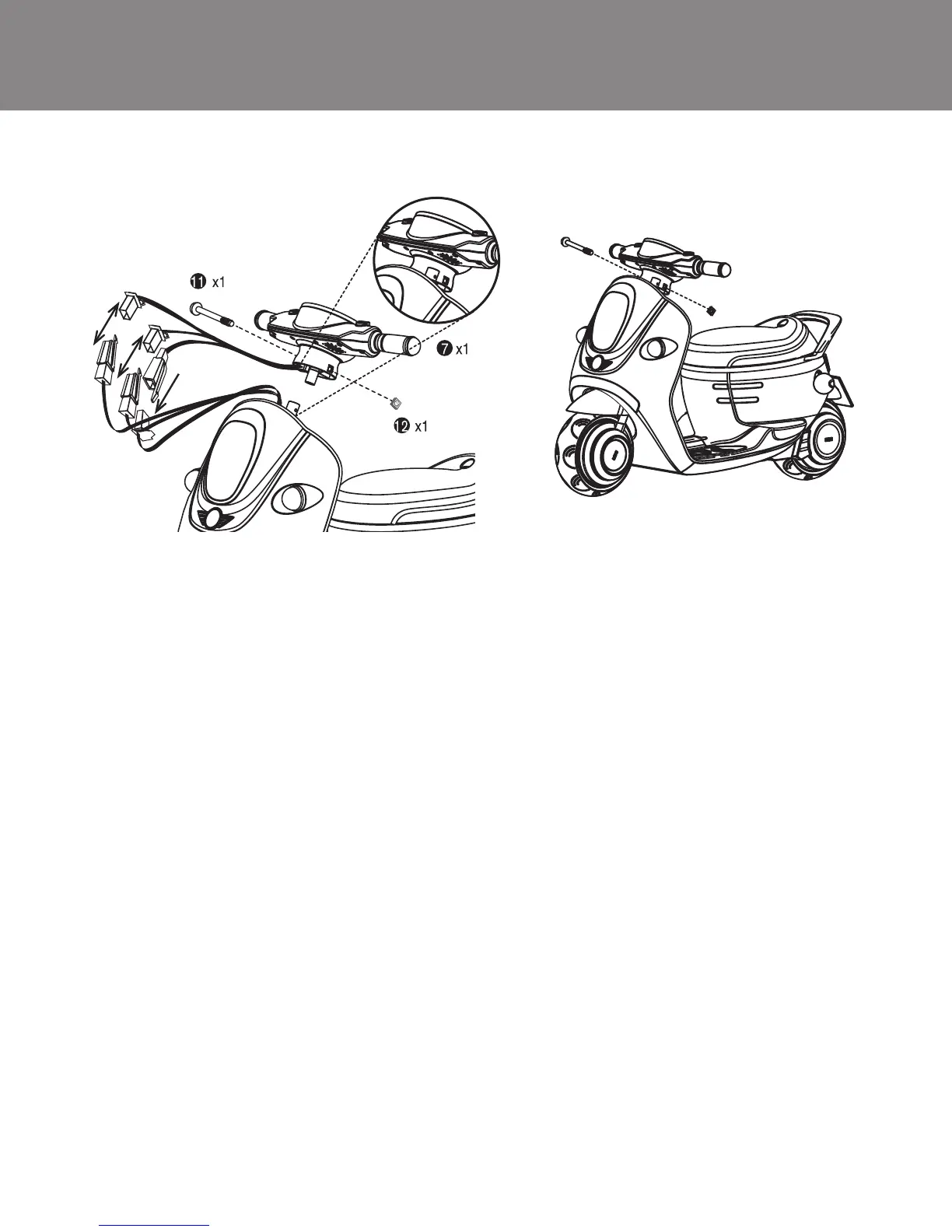

Install the Handle Bars
1. Securely connect the three connectors from the vehicle body to the
three connectors on the handlebars. Ensure all of the wires are placed
inside of the scooter body.
2. Remove the screw (11) and the nut (12) from the handle bars (7) before
attaching.
3. Connect the handle bars to the top of the front wheel assembly (5) and
line up the hole on the handle bars with the hole on the wheel assembly.
4. Insert the screw from the right side of the scooter (as shown above).
Fasten the screw to the nut with a screwdriver.
