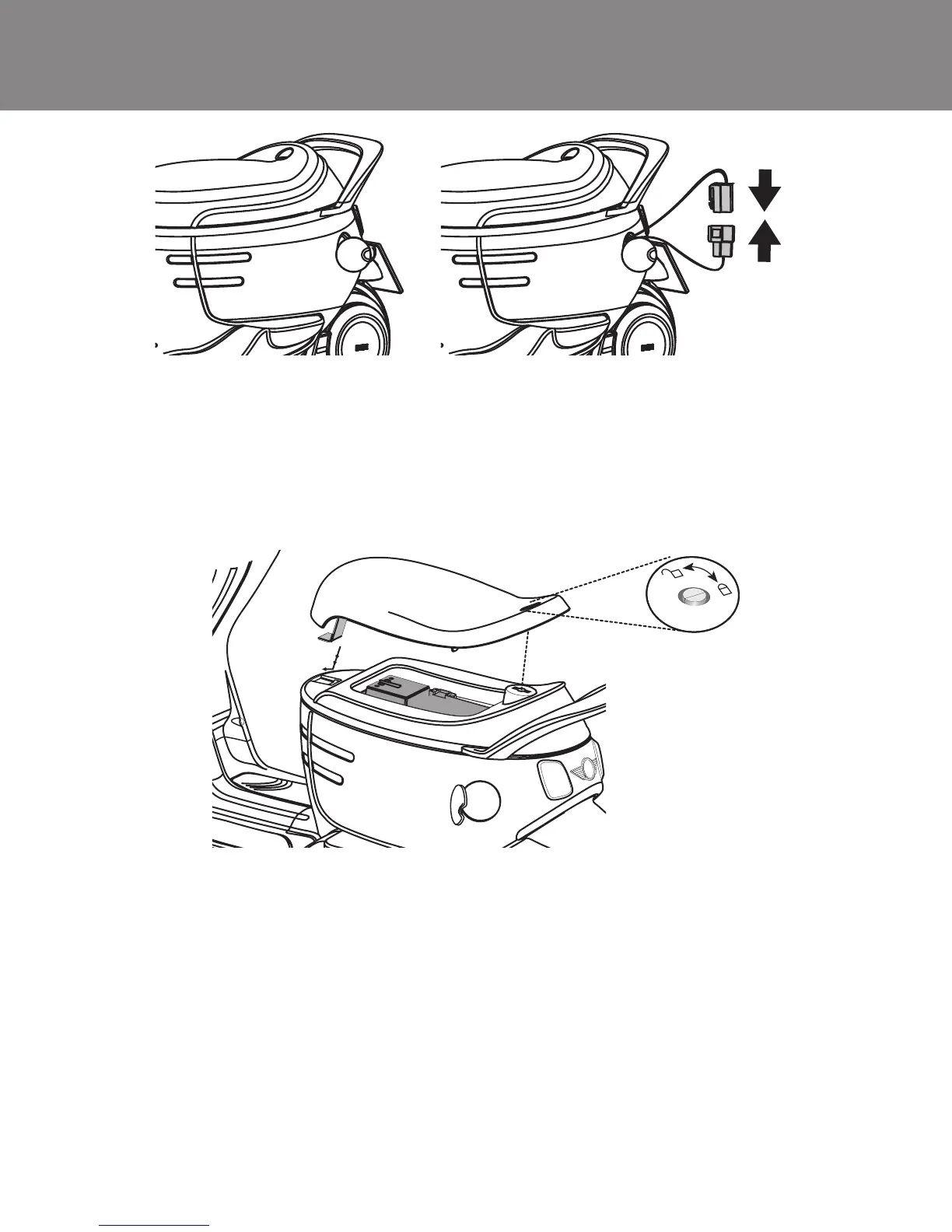

Battery and Seat Attachment
1. Open the fuel tank door and gently take out the two red battery
connector wires. Do not remove them using force.
2. Connect the two red battery connectors.
3. Replace the connectors inside the scooter body and close the fuel tank
door.
1. Align the plastic tab on the front of the seat with the groove on the seat
compartment.
2. Position the back of the seat with the hole on the back of the seat
compartment. Make sure the seat is in the unlock position.
3. First, insert the tab into the groove on the seat compartment, then lower
the back of the seat into the hole on the back of the seat compartment.
4. Use a coin, thumbnail, or screwdriver to turn and lock the top of the
seat into the lock position.
5. The screw turns counter-clockwise to lock and clockwise to unlock.
