ENGLISH
AVL DiTEST ADS 310/340
10

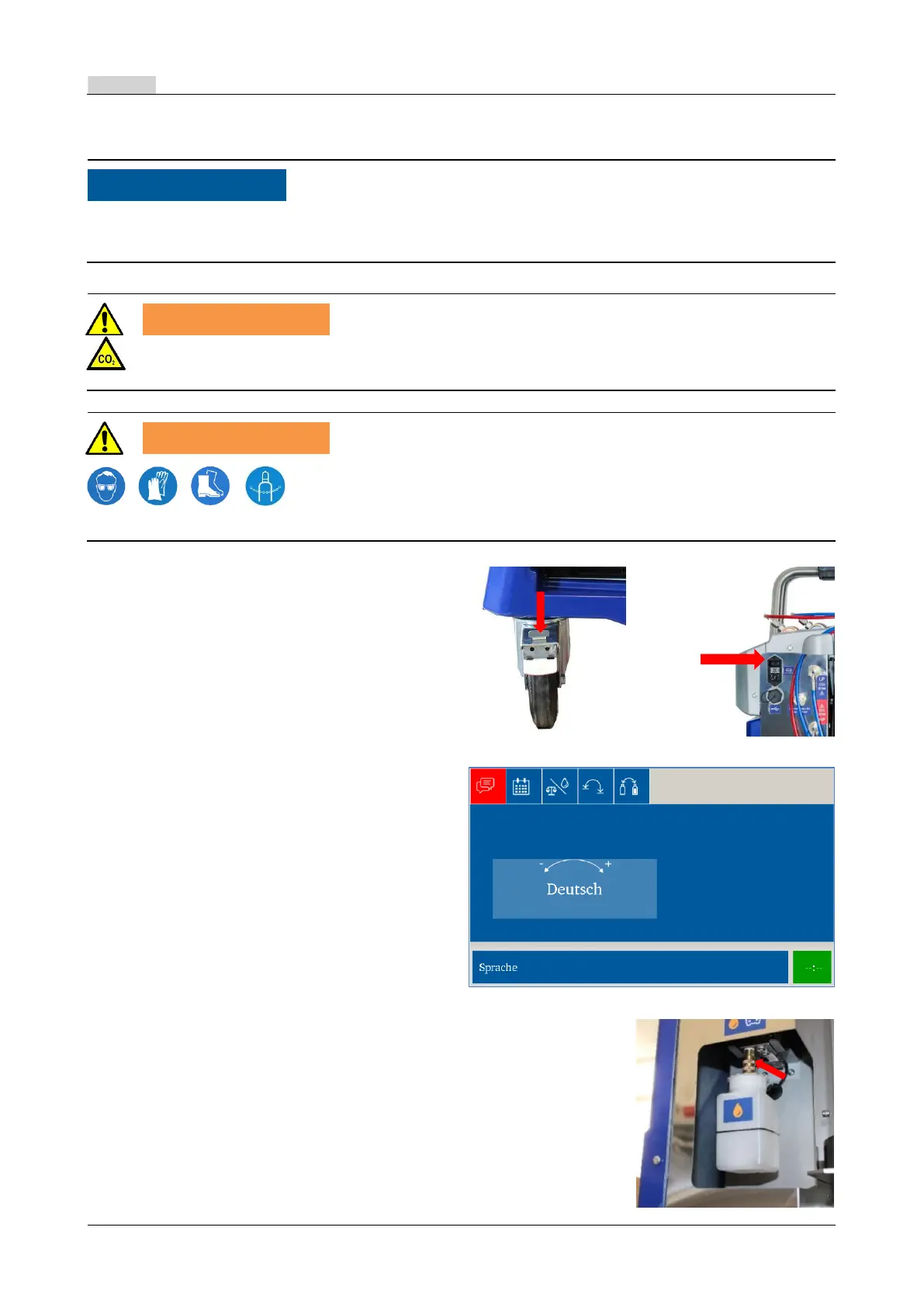

Start-Up – Short Instruction
Connecting refrigerant bottle CO2 (R744)
NOTE
The ADS 310/340 is suitable for standard refrigerant cylinders CO2 (R744) with standpipe (ADS 340: with and without
standpipe). The following bottle sizes can be used: 5 kg, 6 kg, 10 kg or 20 kg (ADS 340: to 30 kg). Required purity
equal or superior to carbon dioxide 3.0 (purity 99.9%).
WARNING
Frostbite hazard from refrigerant CO
2
(R744)
Direct skin / eye contact may cause frostbite / blindness!
WARNING
Wear personal protective equipment - protective goggles, safety gloves and safety boots!
Always mechanically secure refrigerant bottle CO
2
(R744)!
1. Fix the fixing wheels.
Startup Wizard
After switching on for the first time, an automatic
Sequence that you follow through the steps
"Language setting", "Set date/time", "Zeroing the scale",
"Zeroing the pressure" and "bottle swap".
Filling the oil and UV additive tank
Note: UV additive container not with ADS 340!
1. Push the slotted nut on the fresh oil tank up a bit (fresh oil tank)
or down a bit (UV additive tank) and remove tank. Unscrew cover.
2. Fill with fresh oil (top tank) or UV additive (bottom tank).
3. Fit tank by pushing slotted nut up (down) a bit.
