Supply unit section
The power supply unit placed in the processing board is stabilised at 13.8 V = and limited in current at 1.2 A.
Table
Outdoor connections
- Insert an omnipolar network switch having a minimum distance between the contacts of at least 3 mm in the electrical installation of the building.
- Place an eyelet terminal on earth wire and x it to the threaded turret marked with the earth reference.
- The control panel electronic board is earth connected through the metal turrets of the housing..
- For electric network power supply input, use double insulation cables.

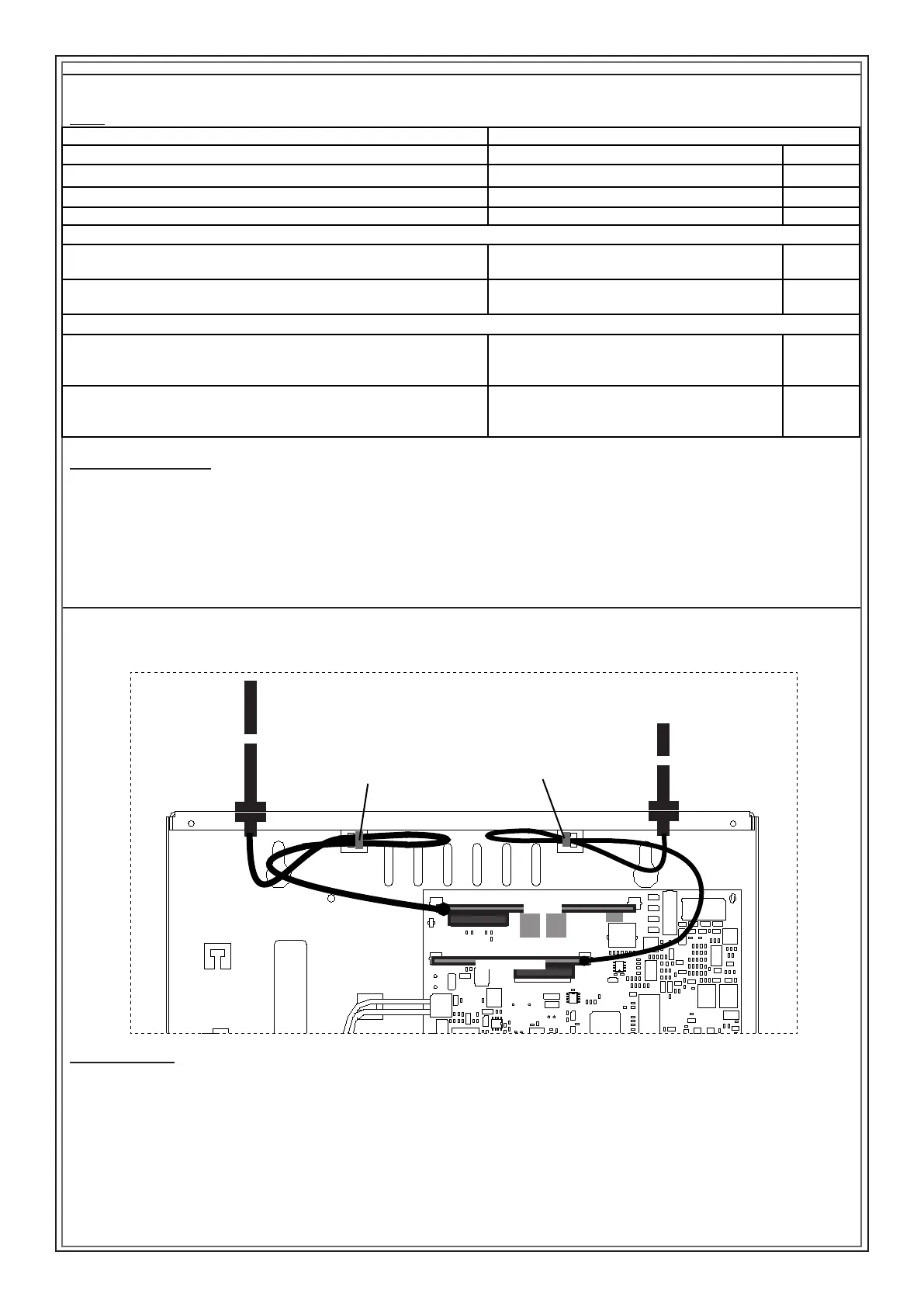

Connections module XGSM and module EWEB WIFI
In order to guarantee the correct system installation, it is important to lock the cables of the different equipment with the strips using the appropriate
turrets of the housing
How to proceed
a. Completely disconnect the power supply, both network and battery.
b. Insert the appropriate plastic supports in the holes located on the control panel electronic board with the guides facing outwardsc.
c. Insert XGSM electronic board on connector J1 and EWEB or EWEB WIFI elettronic board on connector J3 making it slide inside the supports
guides until it stops.
d. Break the presetting on the control panel housing. Left to form XGSM module and right to form EWEB WIFI module.
e. Attach the antenna to the container using the prepared hole and secure the cable with a clamp as shown in Figure.
f. Insert the antenna and x by fastening the nut.
g. Connect the antenna cable to the GSM module.
h. Give power back to the control panel.
Network power supply 230 Vac +10/-15% 50Hz
Voltage power supply nominal voltage 13,8 V =
Max. current absorbed by the network 135 mA
Maximum current available supply unit 1,2 A
Maximum current available - Excluding consumption control panel board (130 mA) OUTPUT: +/- serial, +/- detectors, + O.C. and sirens 900 mA
Output voltage at 230V~ +10%
empty
with maximum charge
13,8 V =
13,6 V =
Output voltage at 230V~ -10%
empty
with maximum charge
13,8 V =
13,6 V =
Keypad absorption with display A500
with disarmed display
with armed display
maximum
70 mA
90 mA
100 mA
Keypad absorption with display A500 Plus
with disarmed display
with armed display
maximum
70 mA
90 mA
220 mA
XGSM
EWEB WIFI
XGSM
EWEB WIFI
FIXING POINTS OF
THE SUPPORTS FOR
XGSM MODULE
FIXING POINTS OF
THE SUPPORTS FOR
EWEB WIFI MODULE
