USB USB REC PCMCIA
12V/24V (ARC)
HDMI2
HDMI1 COAXIAL AV RF SAT1 SAT2
1
2
3
4
5
6
7
8
9
10
11

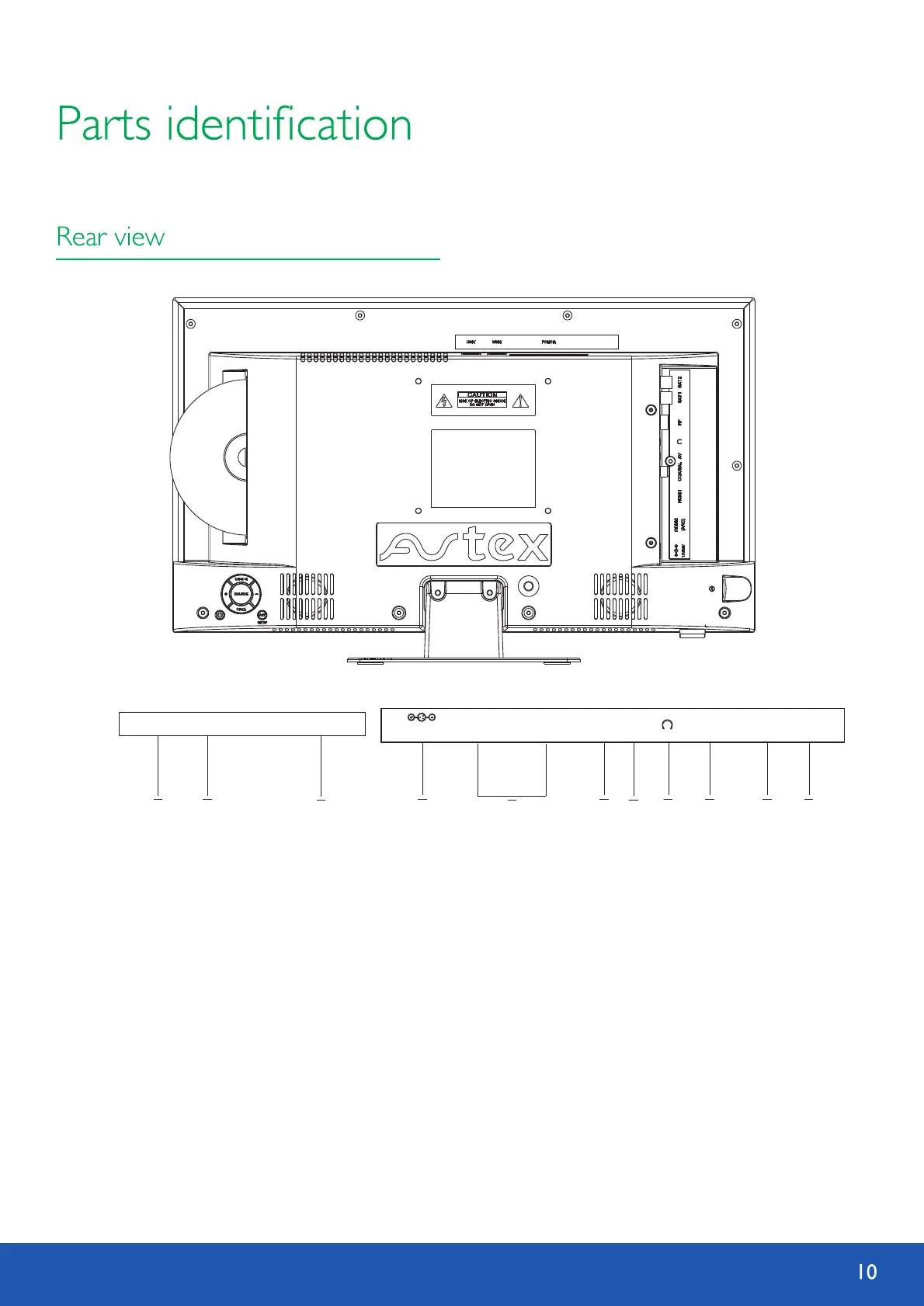

1 USB
2 USB for record
3 PCMCIA card Slots for external Conditional Access(CA)-modules.
4 12V/24V DC input terminal
5 HDMI1/HDMI2 in socket. Refer to HDMI lead on page12
6 Coaxial audio out
7 AV input
8 Headphone output terminal
9 RF input terminal(Aerial)
10 SAT 1 input terminal
11 SAT 2 input for record
