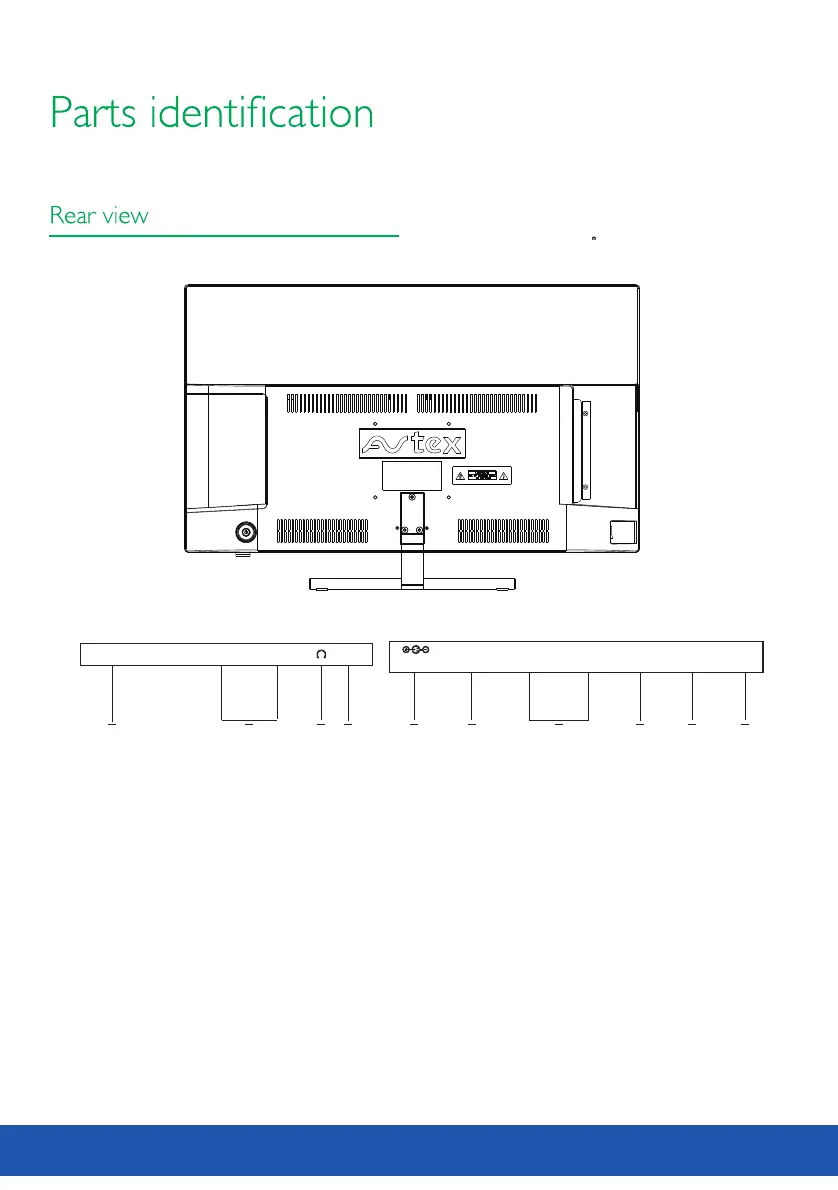

Avtex W279TS - Parts Identification: Rear View; Rear Panel Connections and Ports

10
1
2
3
5
6
8 9
1
2 HDMI 1/HDMI 2 in socket. Refer to HDMI lead on page12, 27
3 Headphone output terminal
4 AV input
5 12V/24V DC input terminal
6 Ethernet connector
7
USB Jack
8 Optical audio out
9 SAT input terminal
10 RF input terminal(Aerial)
PCMCIA card Slots for external Conditional Access(CA)-modules.
12V/24V
(ARC)
RJ45 USB2 USB1 OPTICAL SAT RF
PCMCIA HDMI 1
HDMI 2
AV
