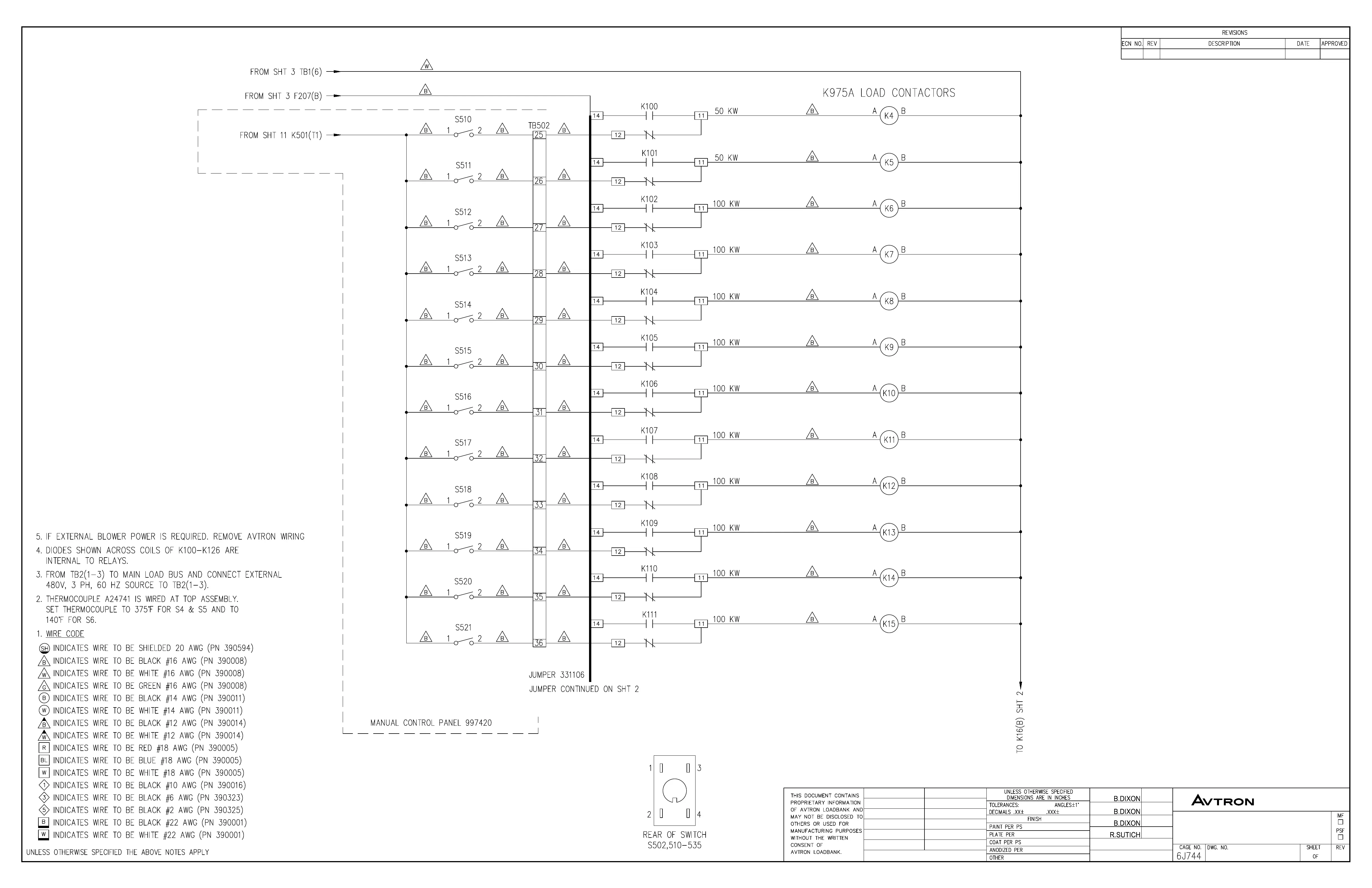

Avtron K975A - Schematic Diagram; Load Contactor and Wire Code Details

SCALE
MODEL
ENG APVD
APVD PROD
CHECKED
DRAWN
DATE
APPLICATION
NEXT ASSY USED ON
CLEVELAND, OH 44125
6255 HALLE DRIVE
FORM 832D-LB, 2/20/2012
SCHEMATIC DIAGRAM,
LOAD BANK
(2500KW, 480V, 3 PH, 60HZ)
997418 1 14 A
X
K975A994213
K975A994213
.03 .015
9/5/13
9/5/13
9/5/13
9/27/13
LA1427 A REVISED PER ECN J.FRANK 11/25/13 B.DIXON
