Awoco FM-1209T - Page 7

6

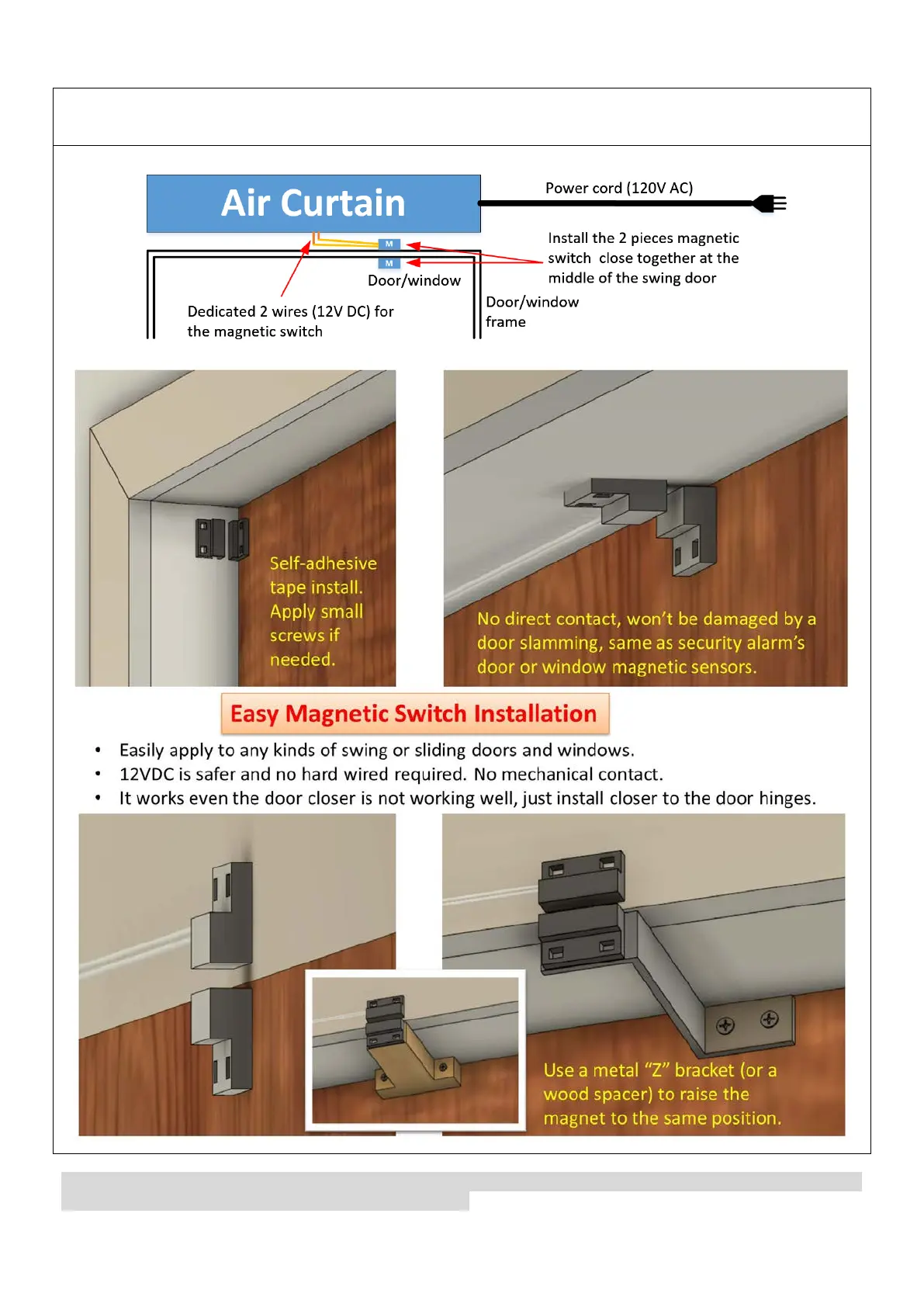

Mount the 2 pieces magnetic switch to the door/window edge and frame; keep them close when the
door/window is closed. If needed, apply a metal “Z” bracket to raise the magnet to the same position. Note: Do
NOT use big screws!!! Oversized screws will damage the magnetic switch internally.
Note: Don’t place the magnetic switch close to existing alarm sensors. The existing alarm sensor
magnet will interfere with this magnetic door sensor.
