Installation manual

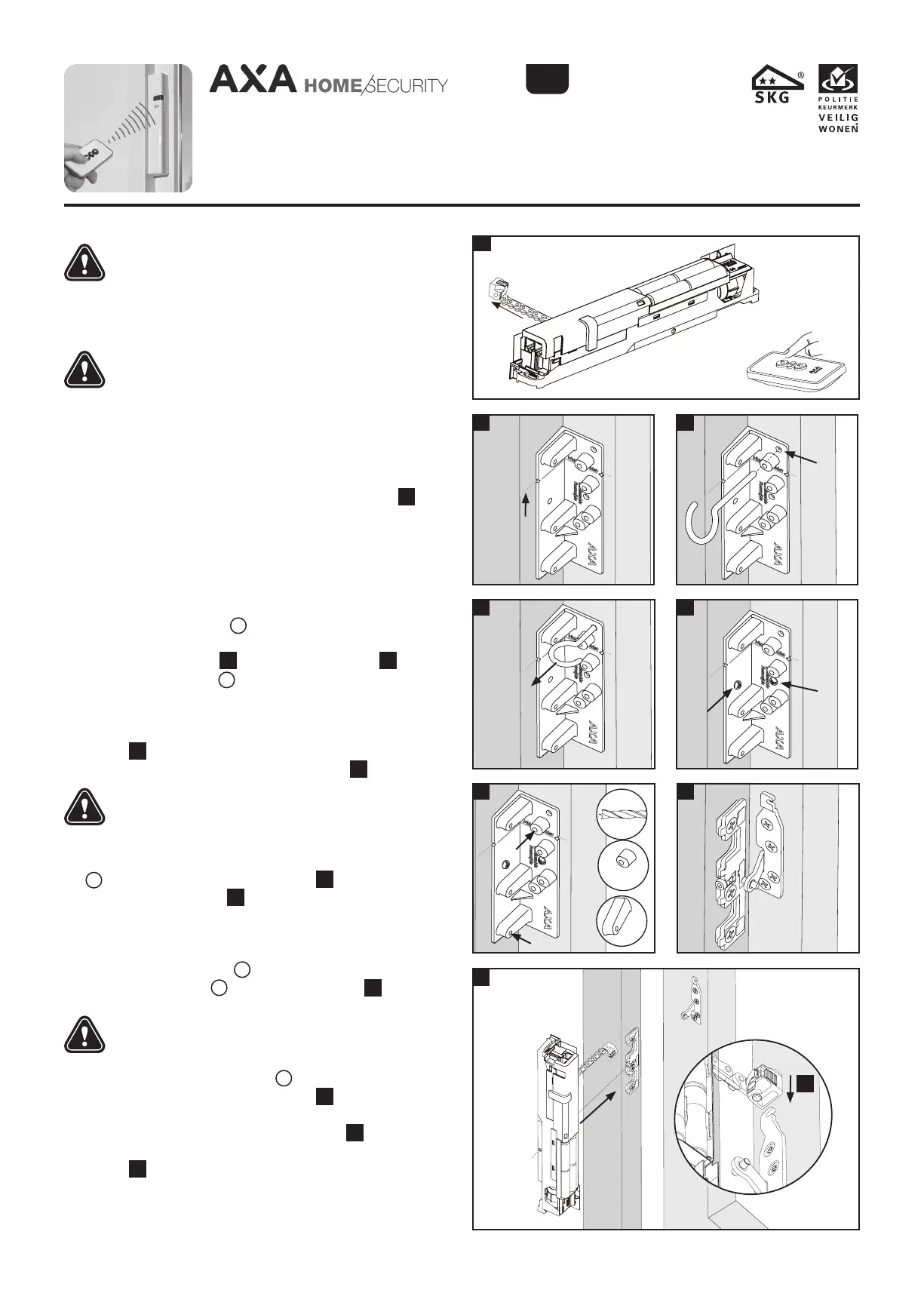

Installation preparation
4 Check whether the window closes effortlessly.
5 Mark the middle of the window on the window casing.
6 Place the drill template
5
, with the centre of the V sign on
the marked central point, firmly against the window and
window casing (figure
E
). Mark the hole (figure
F
) and
screw the screw hook
8
into the window through the
opening of the drill template (pre-drill Ø 2 mm). Use this
screw hook to properly close the window; ensure the drill
template is firmly against the window and window casing
(figure
G
).
Drill the attachment points (Ø 2 mm, figure
H
).
Do not use a wedge to clamp the window!
7 Fix the drill template in place using the screws (3.5 x 30 mm)
9
and remove the screw hook (figure
H
).
8 Drill the 7 holes (figure
I
) using a Ø 2 mm drill bit.
9 Remove the drill template.
Installation
10 Mount the window plate
7
(according to the pre-drilled
holes) with 4 screws
10
(4.0 x 40 mm)* (figure
J
).
When using a battery drill, you must make the
last few tightening revolutions by hand
11 Mount the window casing plate
4
(using pre-drilled holes)
with three 4.0 x 40 mm screws (figure
J
).
12 Slide the closing unit onto the window casing plate; keep the
window slightly open when doing so (figure
K
).
13 Slide the block on the chain fully over the window plate
(figure
L
). The block will fix itself in place.
K
The configuration time is 20 seconds. The LED light
will switch off once this time has elapsed. If you want
to configure the remote control or another remote
control, you must briefly remove the batteries and
then re-insert them. Then repeat step 2.
- A remote control can be configured to an unlimited
number of window units.
- A window unit can be configured to a maximum of
8 remote controls.
3 Press the Open button again and allow the chain to fully exit
the closing unit.
The closing unit is now ready for installation (figure
D
).
D
* For pine wood: Use four 4.5 x 45 mm screws.
