Axial Wraith Spawn - Page 16

16
AX31188
AXA1069
AXA1069
AXA1041
AX30438
AXA1202
AXA1202
AXA1184
AX80035
1
AX80035
2
AX80035
5
AX30113
AX80018
1
8
AX80034
AX31054
x4
AX30155

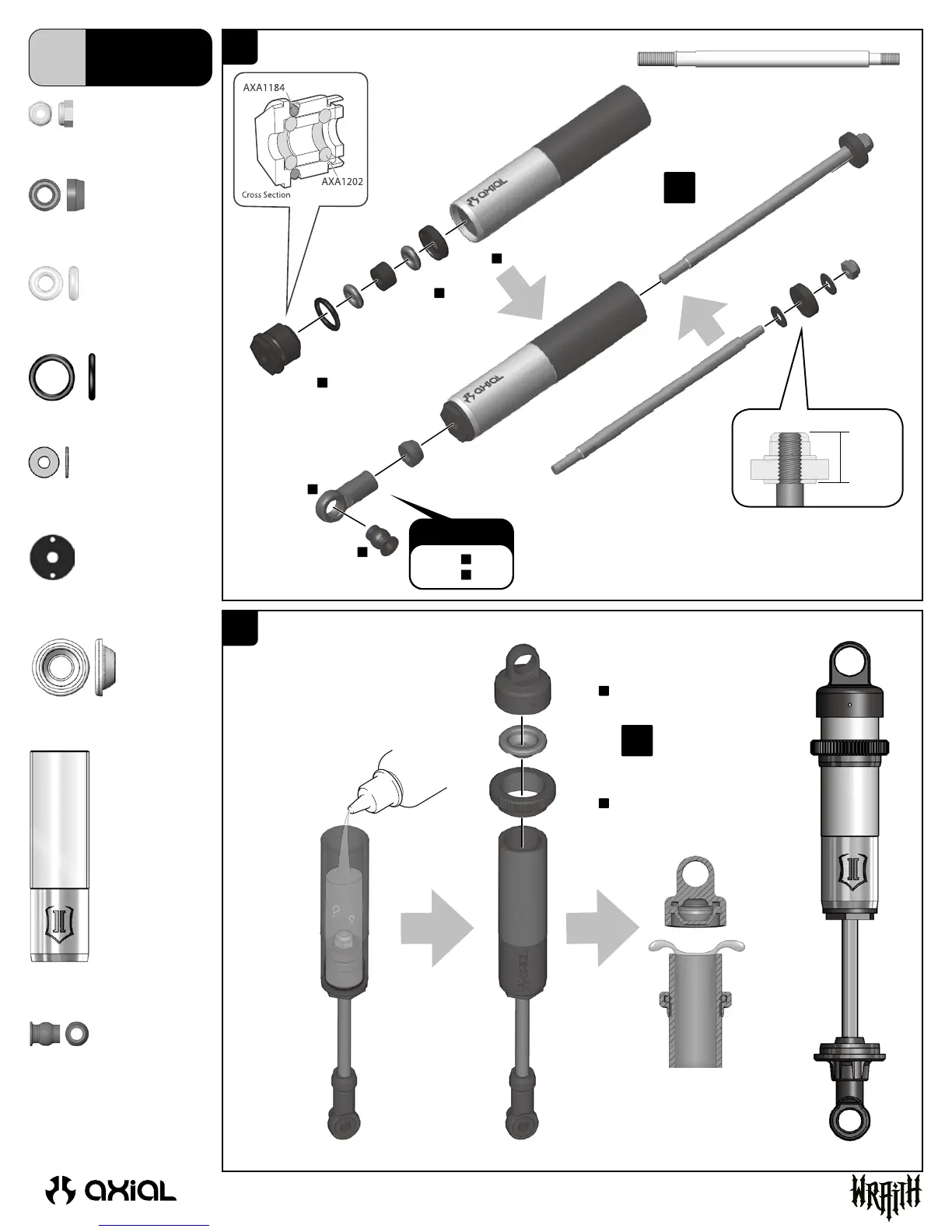

Shock Shaft 3x59.5
x4
x4
8
7
Do Not
Over
Tighten
AXA1184
O-Ring 7.5x1.5mm
x4
AX30438
Machined Shock Piston 10mm 1.2x2
x4
AX31188
Aluminum Shock Body 12x47.5mm
x4
AXA1202
O-Ring 3.5x2mm
x8
AX30113
Rubber Bump Stop 3.6x7x4
x4
AXA1041
M2.5 Nylon Lock Nut
x4
AXA1069
WASHER 2.7x6.7x0.5
x8
AX30112
Shock Oil 30wt
AX80035 3
AX80035
4
AX30112
Shock Diaphragm 13x4.5mm
x4
Optional Lengths
7
AX80034
9
AX80034
-2mm
+2mm
B
Open Bag B
AX80018
Hardware Parts Tree
x4
