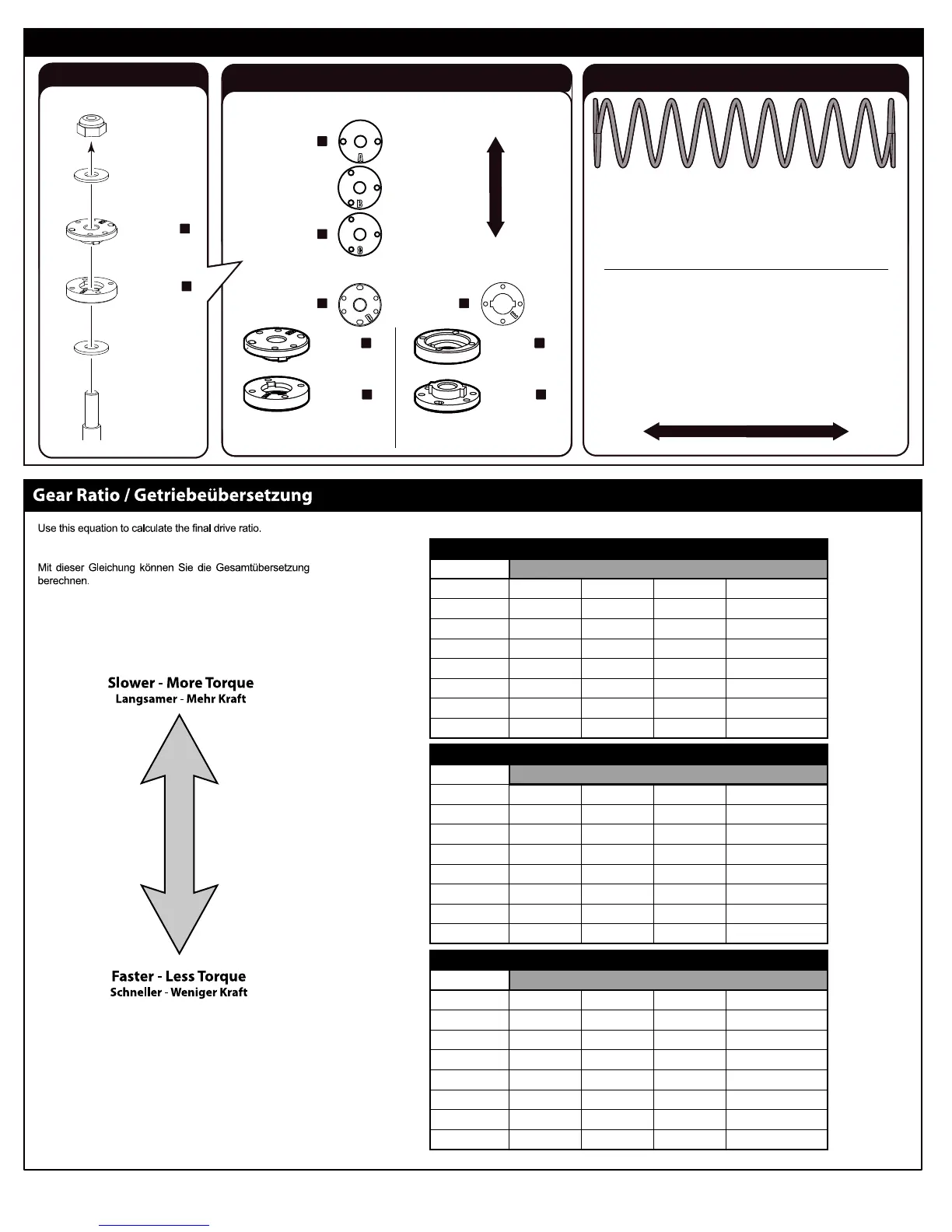

Shock Tuning / Stossdämpferabstimmung

liO/sgnirpSsnotsiP

Springs

Oil

Soft

(2) 1.3mm holes

Standard Pistons

Variable Rate Pistons

Less

Medium

(3) 1.2mm holes

Firm

(3) 1.1mm holes

AX80033

Dampening

Faster

Slower

Dampening

Provides a different dampening rate depending on which direction you install.

Provides the same dampening rate on both compression and extension

Depending on the application you may want a firmer spring than what is

included. Selecting a spring rate is based on each vehicles weight and handling

and usually will require some trial and error.

For rock crawling applications it is recommended to use a stiffer spring on

which ever corner is exhibiting torque twist.

Oils are another element you can use to tune the handling of your vehicle. You

want an oil that allows the vehicle to handle the terrain well, but not too thin as

to exhibit a springy bounce while driving.

We recommend starting with a good 30 wt. silicone oil. If you are looking for a

faster rebound/compression rate use a lower weight oil. If you are looking for a

slower rebound compression rate use a higher weight oil.

AXA1069

AXA1041

AX30155

Installation

100wt.10wt.

liO/sgnirpSsnotsiP

Springs

Oil

Soft

(2) 1.3mm holes

Standard Pistons

Variable Rate Pistons

Less

Medium

(3) 1.2mm holes

Firm

(3) 1.1mm holes

AX80033

Dampening

Faster

Slower

Dampening

Provides a different dampening rate depending on which direction you install.

Provides the same dampening rate on both compression and extension

Depending on the application you may want a firmer spring than what is

included. Selecting a spring rate is based on each vehicles weight and handling

and usually will require some trial and error.

For rock crawling applications it is recommended to use a stiffer spring on

which ever corner is exhibiting torque twist.

Oils are another element you can use to tune the handling of your vehicle. You

want an oil that allows the vehicle to handle the terrain well, but not too thin as

to exhibit a springy bounce while driving.

We recommend starting with a good 30 wt. silicone oil. If you are looking for a

faster rebound/compression rate use a lower weight oil. If you are looking for a

slower rebound compression rate use a higher weight oil.

AXA1069

AXA1041

AX30155

Installation

AX80033

Install this direction for faster

rebound and slower compression

Install this direction for Slower

rebound and faster compression

AX80033

Install this direction for faster

rebound and slower compression

Install this direction for Slower

rebound and faster compression

100wt.10wt.

AX04027

AX04028

AX08135

AX12015

AX30031

AX30041

AX30112

AX30113

AX30155

AX30162

AX30163

AX30166

AX30190

AX30198

AX30224

AX30385

AX30392

AX30394

AX30408

AX30410

AX30411

AX30412

AX30413

AX30429

AX30435

AX30437

AX30450

AX30463

AX30491

Wraith Body - .040” (Clear)

Wraith Interior Set - .040” (Clear)

2.2 Raceline Renegade Wheels - 41mm Wide (Black) (2pcs)

2.2 Ripsaw Tires - R35 Compound (2pcs)

Antenna

Velcro Strap 15x160mm

Shock Diaphragm 13x4.5mm (6pcs)

Rubber Bump Stop 3.6x7x4 (6pcs)

Shock Shaft 3x59.5 (2pcs)

Pin 1.5x8mm (6pcs.)

Pin 2.0x10mm (6pcs.)

Pin 1.5x11mm (6pcs)

Shaft 5x18 (2pcs.)

Slipper Drive Gear Shaft 5x53.5

Spring 14x70mm 1.43 lbs/in - Purple (2pcs)

Diff Gasket 16x25x0.5mm (2pcs)

Bevel Gear Set (38/13)

20T Drive Gear

Input Shaft 5x29mm (2pcs)

Inner Slipper Plate

Outer Slipper Plate

Slipper pad 27x8x1mm

Slipper spring 8.5x12 165 lbs/in - Black (2pcs)

12mm Aluminum Hub (Black) (4pcs)

Steel Outdrive Shaft Set (2pcs)

Dig Lockout Shaft

Flange Pipe 3x4.5x5.5 (4pcs)

WB8 Universal Joint Rebuild Kit (2pcs)

AX10 RTR Motor Plate

AX30500 Heavy Duty Locker (2pcs)

AX30578 Pinion 48DP 20 T

AX30665 Spur 48DP 80T

AX30776 AR60 OCP Rear Axle Set (2pcs)

AX30777 56x17mm Servo Plate

AX30778

AX30780

AX30784

AX30792

AX80002

AX80006

AX80010

AX80018

AX80033

AX80034

AX80035

AX80036

AX80037

AX80045

AX80049

AX80051

AX80057

AX80061

AX80062

AX80069

AX80070

AX80071

AX80072

AX80073

AX80074

AX80075

AX80076

AX80077

AX80078

AX80079

AX80081

AX80082

AX80083

Zero Ackerman Steering Plate (2pcs)

AR60 OCP Universal Axle Set

WB8 Driveshaft Coupler Set

Threaded Aluminum Link 7x87.5mm - Grey (2pcs)

Diff Case -Small

Servo Set

Gear Set

Hardware Parts Tree

10mm Shock Parts Tree 1

10mm Shock Parts Tree 2

10mm Shock Caps Parts Tree

72-103mm Shock Body

Interior Details Parts Tree - Black

Axial Light Bucket Set (Black)

Axial LED Lens Set - Yellow/Clear (4pcs)

Dig Transmission Case

XR10 Linkage Set

XR10 Steering Knuckles Set

XR10 C Hub Carrier Set

AR60 OCP Axle Housing

AR60 OCP Differential Cover

AR60 OCP Straight Axle Adapter

AR60 OCP 4-Link Mount

AR60 OCP Steering Link

Wraith Tube Fr

ame Rails

Wraith Tube Frame Top

Wraith Tube Frame Shock Mount (Rear)

Wraith Tube Frame Bumper

Transmission Spur Gear Cover

Wraith Tube Frame Skid Plate/Battery Tray

Wraith Tube Frame Electronics Box

Wraith Tube Frame Brace Set

Wraith Links Set

AX80084 WB8 Driveshaft

Pinion 56 60 64 68

11 38.69 41.45 44.22 46.98

12 35.47 38.00 40.53 43.07

13 32.74 35.08 37.42 39.75

14 30.40 32.57 34.74 36.91

15 28.37 30.40 32.43 34.45

16 26.60 28.50 30.40 32.30

17 25.04 26.82 28.61 30.40

Pinion 56 60 64 68

11 34.04 36.47 38.90 41.33

12 31.20 33.43 35.66 37.89

13 28.80 30.86 32.91 34.97

14 26.74 28.65 30.56 32.47

15 24.96 26.74 28.53 30.31

16 23.40 25.07 26.74 28.41

17 22.02 23.60 25.17 26.74

Pinion 56 60 64 68

11 43.78 46.91 50.04 53.16

12 40.13 43.00 45.87 48.73

13 37.05 39.69 42.34 44.98

14 34.40 36.86 39.31 41.77

15 32.11 34.40 36.69 38.99

16 30.10 32.25 34.40 36.55

17 28.33 30.35 32.38 34.40

32 Pitch 38/13T (Stock Gearing AX30392 or AX30395)

*NOTE: NOT ALL GEAR FITMENT OPTIONS ARE AVAILABLE

Spur Gear

32 Pitch 36/14T (Overdrive Gearing AX30401)

Spur Gear

32 Pitch 43/13T (Underdrive Gearing AX30402)

Spur Gear

22.02:1

53.16:1

Final Drive Gear Ratio = (Spur/Pinion) X 7.2

Gesamtübersetzung = (Spur/Pinion) X 7.2
