10

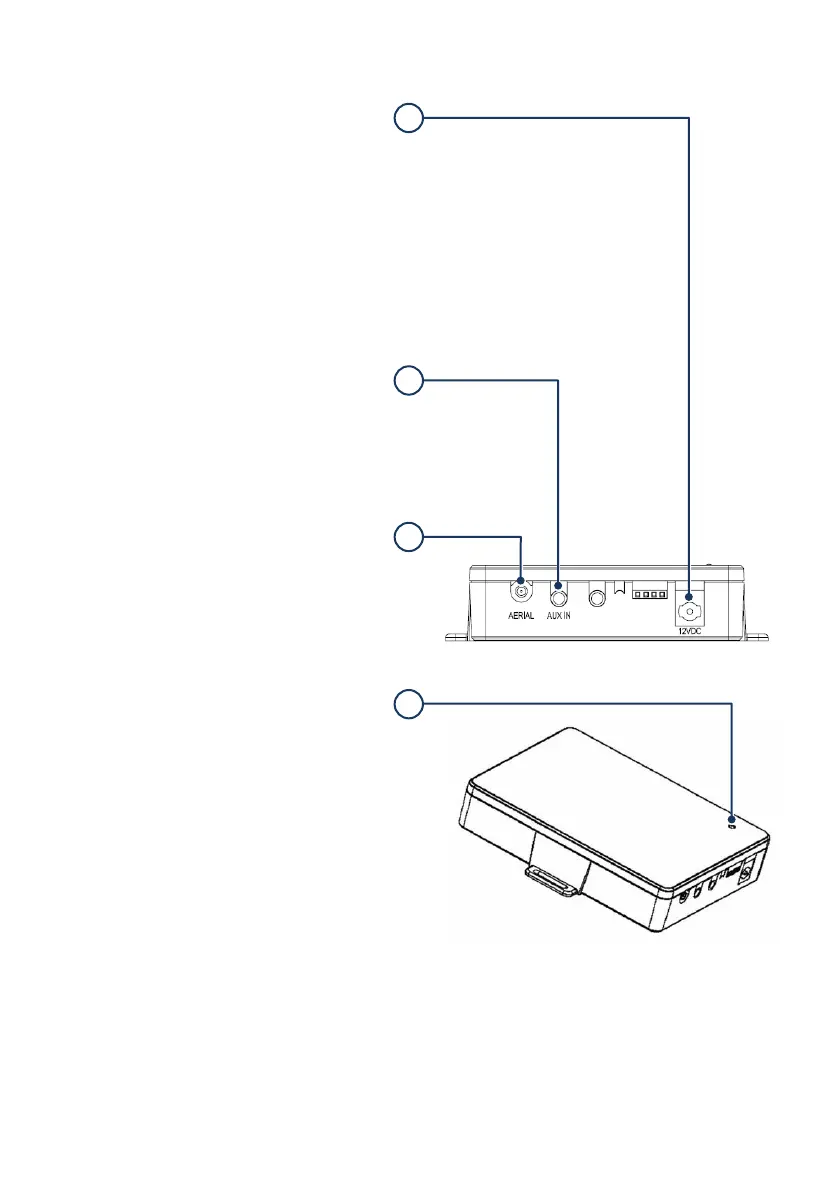

Connections on device
1. Power input:
Firstly connect supplied cable to on-board
power supply (ACC/terminal 15) and connect
ground (GND/terminal 31).
Lead colours are:
+ RED: ACC/terminal 15/(12 volt)
- BLACK: GND/terminal 31
Then fix plug to DAB module and rotate by 90°
to fasten.
2. AUX input:
Audio devices can be connected to 3.5mm
Stereo jack.
Required connector cable is available from
your supplier (3.5mm jack).
3. Aerial connector:
Only connect aerials when DAB module
switched off!
After installation MENU of DAB module must
be set at ANT ON (see operating instructions
page 8).
4. Power indicator:
Red illuminating diode indicates when power is
properly connected, and should go out when
ignition off.
