Periodic Maintenance and Adjustment 8-44
by lifting it up and pulling it out.
1. Battery compartment cover
2. Turn the key to “OFF” and turn off the
electrical circuit in question.
CAUTION:
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing
a fuse.
3. Remove the blown fuse, and then install
a new fuse of the specified amperage.

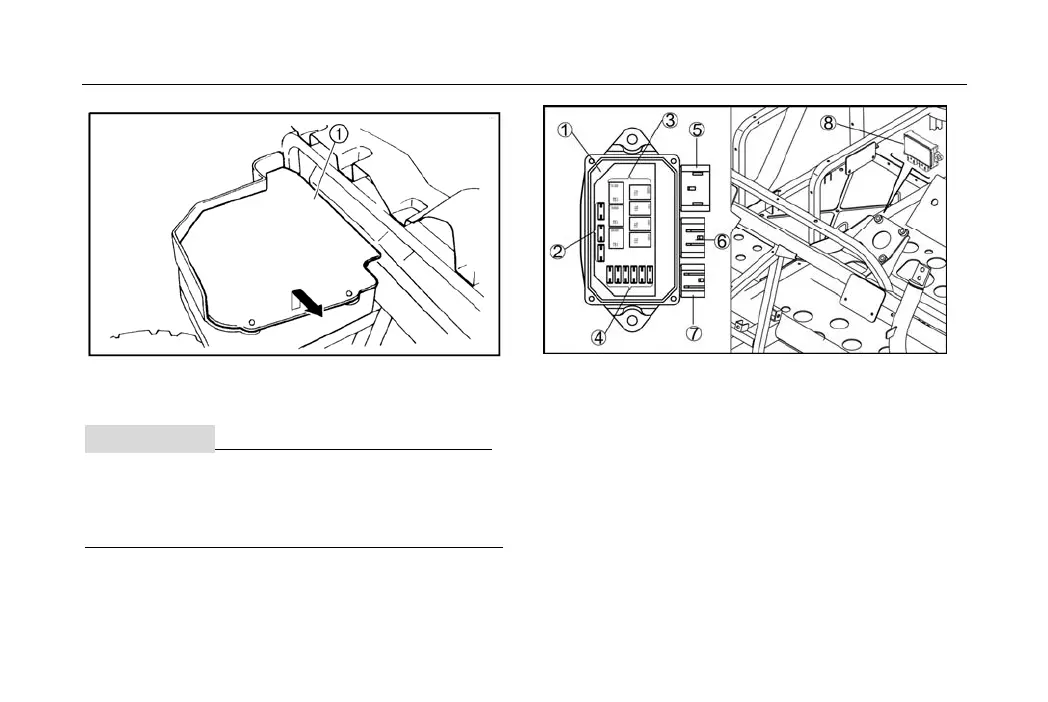

1. Relay assembly
2. Backup fuse
3. Relay
4. Fuse box
5. Adapter connector 3
6. Adapter connector 2
7. Adapter connector 1
8. ECU
