4-16 Control Functions
lever, press the release button, and then
push the lever all the way down. Spring
pressure helps return the lever to the
released position. Be sure to fully release the
parking brake before starting out, Failure to
do so may result in poor performance and
premature wearing of the rear brake and
V-belt.

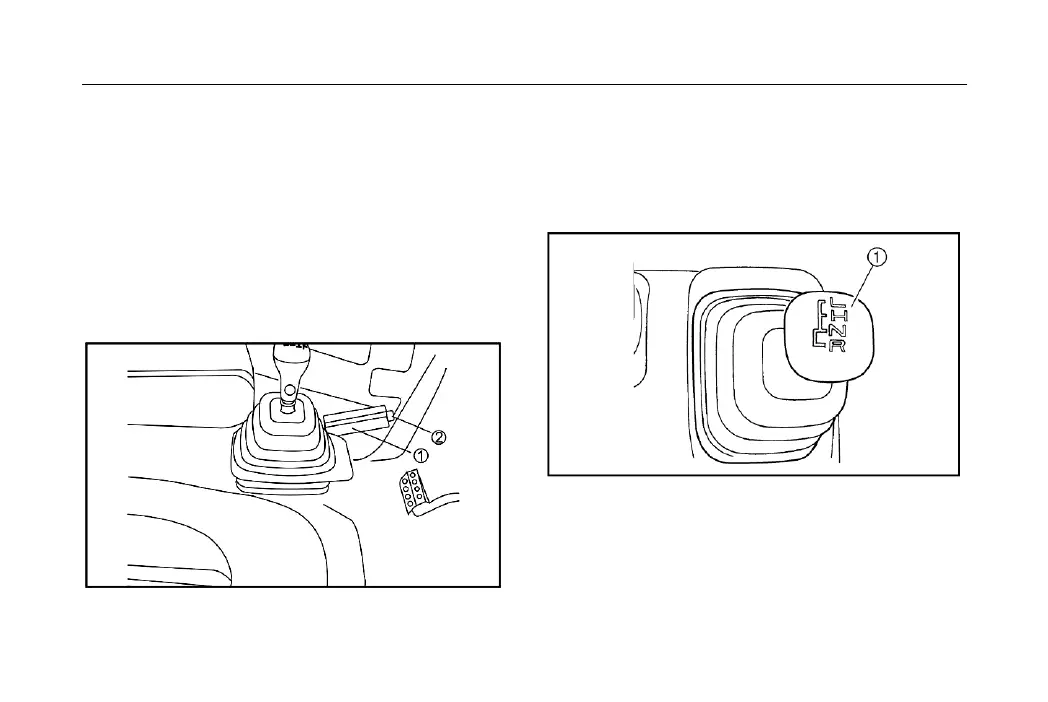

1. Parking brake lever 2. Release button
Drive select lever
The drive select lever is used to shift you
vehicle into the low, high, neutral and reverse
positions. (Refer to pages 6-4—6-6 for the
drive select lever operation.)
1. Drive select lever
