7
Support attaching piece
Knob

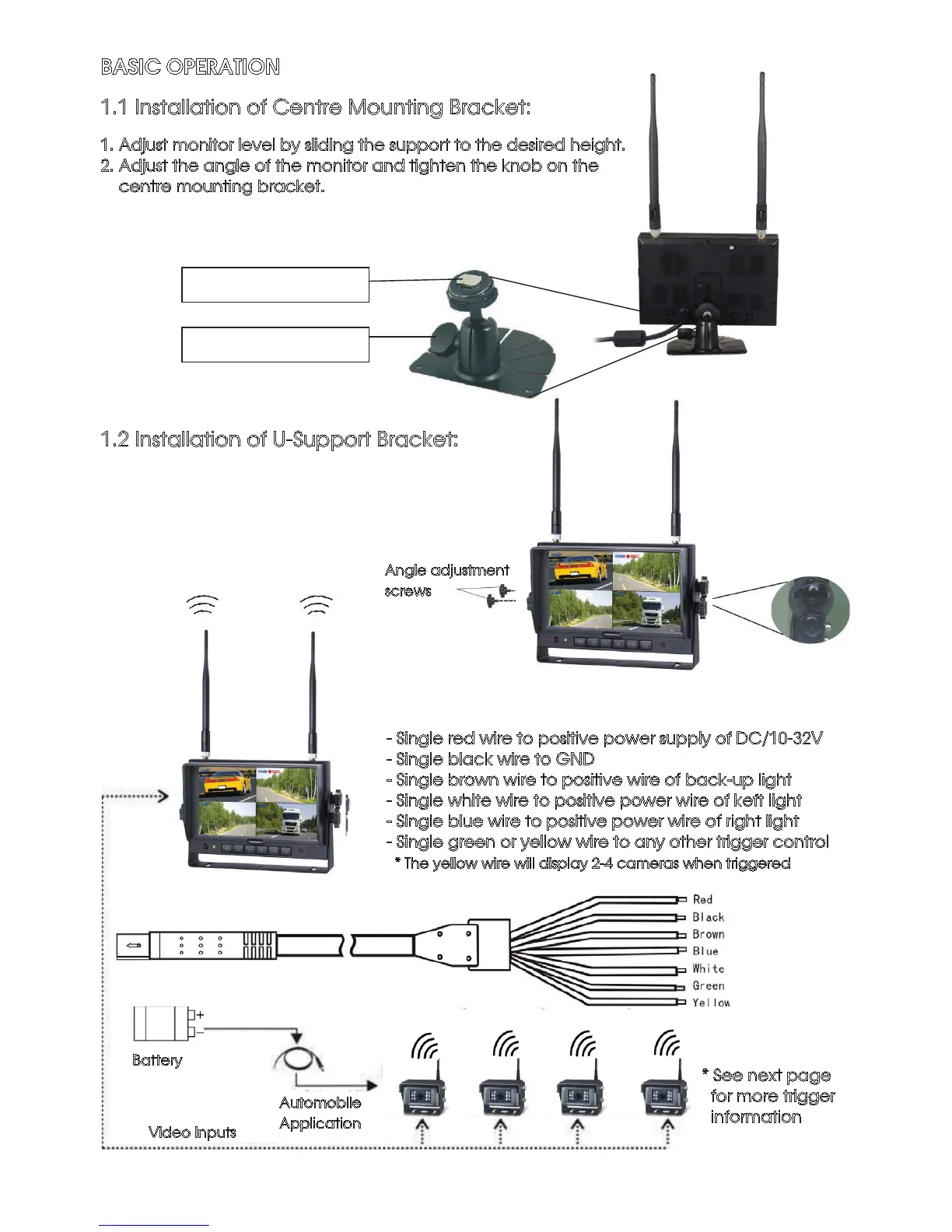

BASIC OPERATION
1.1 Installation of Centre Mounting Bracket:
1. Adjust monitor level by sliding the support to the desired height.
2. Adjust the angle of the monitor and tighten the knob on the
centre mounting bracket.
1.2 Installation of U-Support Bracket:
- Single red wire to positive power supply of DC/10-32V
- Single black wire to GND
- Single brown wire to positive wire of back-up light
- Single white wire to positive power wire of keft light
- Single blue wire to positive power wire of right light
- Single green or yellow wire to any other trigger control
* The yellow wire will display 2-4 cameras when triggered
Battery
Angle adjustment
screws
Automobile
Application
Video Inputs
* See next page
for more trigger
information
To Next Page
