Axis M1114 Datasheet

Camera
Models AXIS M1103, fixed focal lens: SVGA resolution
AXIS M1104, fixed focal lens: 1 MP/HDTV 720p
AXIS M1113, varifocal, DC-iris lens: SVGA resolution
AXIS M1114, varifocal, DC-iris lens: 1 MP/HDTV 720p
Image sensor 1/4” progressive scan RGB CMOS
Lens AXIS M1103 2.8 mm: 66° view*, F2.0, fixed iris, CS mount
AXIS M1103 6 mm: 31° view*, F1.8, fixed iris, CS mount
AXIS M1104 2.8 mm: 80° view*, F2.0, fixed iris, CS mount
AXIS M1104 6 mm: 37° view*, F1.8, fixed iris, CS mount
AXIS M1113: Varifocal 2.9 - 8.2 mm: 65° - 25° view*, F1.4,
DC-iris, CS mount
AXIS M1114: Varifocal 2.8 - 8 mm: 87° - 29° view*, F1.2, DC-iris,
CS mount
*horizontal angle of view
Light sensitivity/
Min. Illumination
AXIS M1103/AXIS M1104 2.8mm: 1.0 - 100000 lux, F2.0
AXIS M1103/AXIS M1104 6mm: 0.9 - 100000 lux, F1.8
AXIS M1113: 0.6 lux, F1.4
AXIS M1114: 0.6 lux, F1.2
Shutter time 1/24 500 s to 1/6 s
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC)
Motion JPEG
Resolutions AXIS M1103/AXIS M1113: 800x600 to 160x90
AXIS M1104/AXIS M1114: 1280x800 to 160x90
Frame rate H.264 30 fps in all resolutions
Frame rate
Motion JPEG
30 fps in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and Motion
JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Pan/Tilt/Zoom Digital PTZ, preset positions, guard tour
Image settings Compression, color, brightness, sharpness, contrast, white
balance, exposure control, exposure zones, backlight
compensation, fine tuning of behavior at low light, rotation,
mirroring of images
Text and image overlay
Privacy mask
Network
Security Password protection, IP address filtering, HTTPS** encryption,
digest authentication, user access log
Supported
protocols
IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, SMTP,
Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP,
RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® from
Axis Communications, specifications available at www.axis.com
Support for AXIS Video Hosting System (AVHS) with One-Click
Camera connection
Intelligent video Video motion detection, active tampering alarm
Alarm triggers Intelligent video
Alarm events File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
Video buffer 25 MB pre- and post alarm
Installation aids
in software
Pixel counter
General
Casing Aluminum and plastic
Processor and
memory
ARTPEC-3, 128 MB RAM, 128 MB Flash
Power Power over Ethernet IEEE 802.3af Class 1
Connectors RJ-45 10BASE-T/100BASE-TX PoE
Operating
conditions
-20 - 50°C (-4 - 122°F)
Humidity 20 - 80% RH (non-condensing)
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3,
EN 61000-6-1, EN 61000-6-3, EN 55024, FCC Part 15 Subpart B
Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS
CISPR 22, KCC Class A, EN 60950-1
Weight AXIS M1103/AXIS M1104: 170 g (0.37 lb.)
AXIS M1113: 200 g (0.44 lb.)
AXIS M1114: 210 g (0.46 lb.)
Included
accessories
Stand, Installation Guide, CD with installation tools, recording
software and User’s Manual, Windows decoder 1-user license
Optional
accessories
Various housings
AXIS T8412 Installation Display
AXIS P8221 Network I/O Audio Module
Lenses
Video
management
software (not
incl.)
AXIS Camera Station - Video management software for viewing
and recording up to 50 cameras. For more software application
via partners, see www.axis.com/products/video/software/

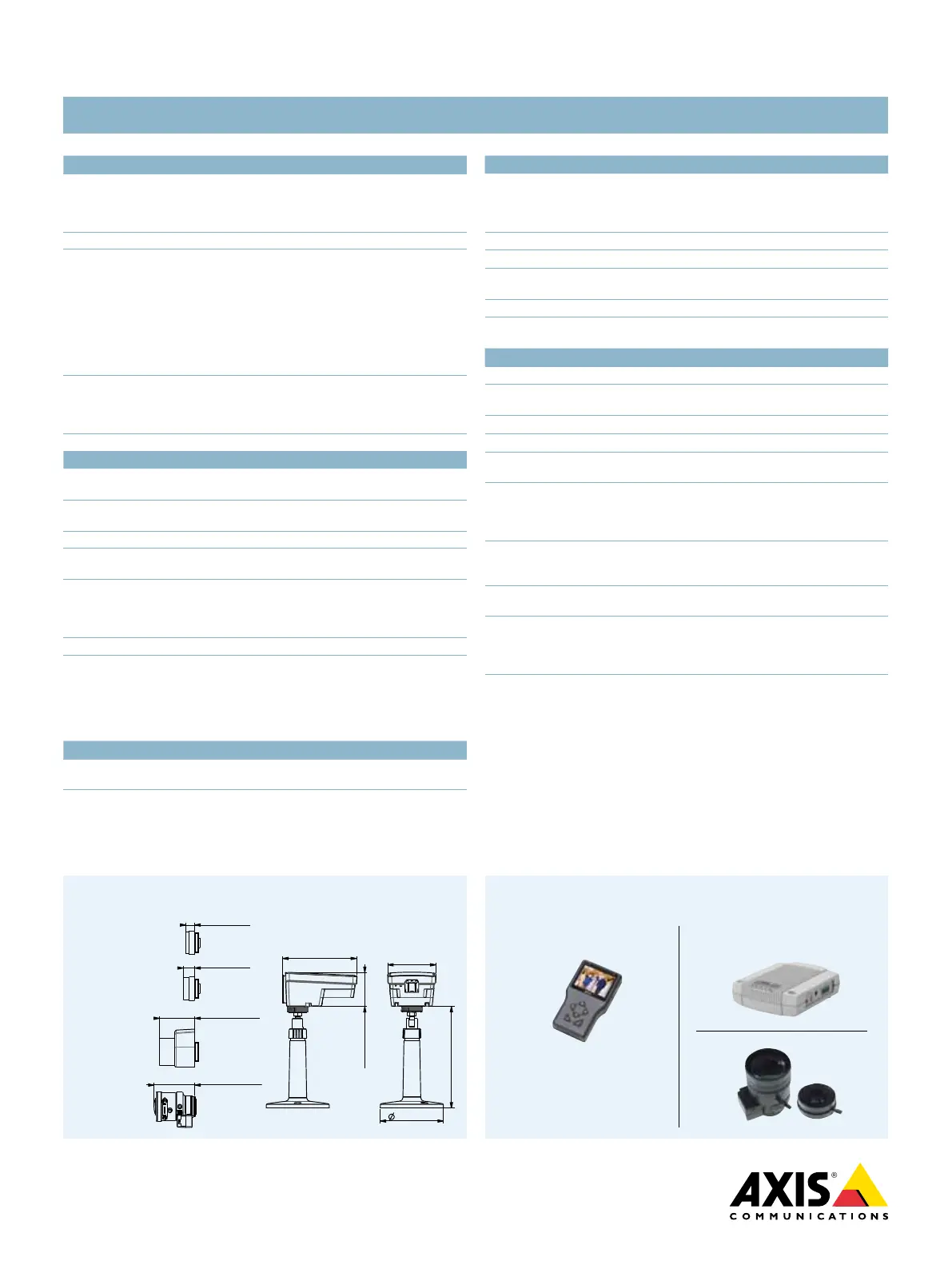

Technical Specications – AXIS M11 Network Camera Series
www.axis.com
©2010 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modications without notice.
38905/EN/R2/1006
More information is available at www.axis.com
** This product includes software developed by the OpenSSL
Project for use in the OpenSSL Toolkit. (www.openssl.org)
Dimensions Optional accessories
AXIS T8412 Installation Display
AXIS M1103/M1104
2.8 mm lens
AXIS M1103/M1104
6 mm lens
AXIS M1113
lens
AXIS M1114
lens
AXIS P8221 Network I/O Audio Module
94 mm (3.7")
43 mm (1.7")
61 mm (2.4")
129 mm (5.1")
mm (3.1")80
12 mm (0.5")
45 mm (1.8")
52 mm (2.1")
15 mm (0.6")
Lenses

Axis M1114 Specifications

General

Maximum resolution	1280 x 800 pixels
Video formats supported	H.264
Camera shutter speed	1/24500 - 1/6 s
Minimum illumination	0.6 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Video motion detection	Yes
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Power source type	PoE
Dimensions (WxDxH)	61 x 94 x 43 mm
Certification	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3, EN 55024, FCC Part 15 Subpart B, Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS, CISPR 22, KCC Class A, EN 60950-1
Processor model	ARTPEC-3
Flash memory	128 MB
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	210 g
