Technical Specications – AXIS P13 Network Camera Series
37696/EN/R1/1004

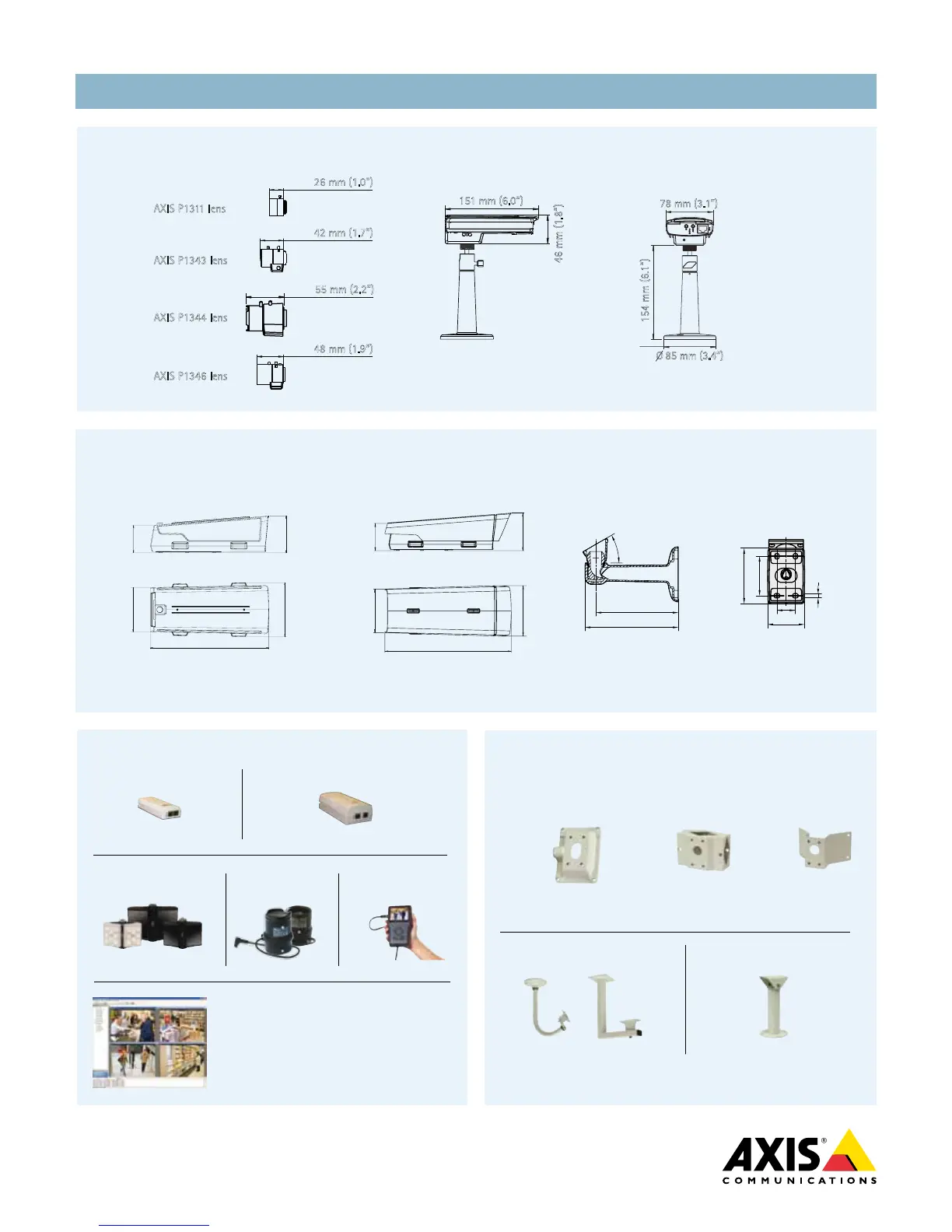

Dimensions: AXIS P13-E Network Cameras and
wall mount bracket with internal cable channel
8 7 6 5 4 3 2 1
8 7 6 5 4 3 2 1
A
B
C
D
E
F
SWEDEN
This document is our property and shall not without our permission in writing be altered, copied, used for manufacturing or communicated to any other person or company.
E
87,2
139,5
REV
DESIGNER
88 mm (3.4”)
121 mm (4.7”)
140 mm (5.5”)
162 mm (6.4”)
405 mm (15.9”)
180 mm (7.1”)
204 mm (8”)
30˚
80 mm (3.1”)
40 mm (1.6”)
86 mm (3.4”)
120 mm (4.7)
10 mm (0.4”)
26 mm (1.0”)
55 mm (2.2”)
42 mm (1.7”)
48 mm (1.9”)
AXIS P1311 lens
AXIS P1343 lens
AXIS P1344 lens
AXIS P1346 lens
151 mm (6.0”)
46 mm (1.8”)
O 85 mm (3.4”)
78 mm (3.1”)
154 mm (6.1”)
Dimensions: AXIS P13 Network Cameras (indoor models)
Optional mounting accessories for outdoor modelsOptional accessories
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners, see
www.axis.com/products/video/software/
AXIS T90A Illuminators
Lenses
Ceiling brackets with ball joint
Adapter
plate
Pole
mount
Corner
mount
Wall bracket accessories
Column mount with ball joint
AXIS T8412
Installation Display
AXIS PoE Midspan 1-port AXIS T8123 High PoE Midspan 1-port
107 mm (4.2”)
156 mm (6.1”)
129 mm (5.1”)
80 mm (3.1”)
343 mm (13.5”)
Without sunshield With sunshield Wall mount arm
Back side of
wall mount bracket
