Axis P5534 Datasheet

Technical specications – AXIS P5534 PTZ Dome Network Camera
www.axis.com
©2012 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modications without notice.
46679/EN/R5/1211
Camera
Models AXIS P5534 60 Hz; AXIS P5534 50 Hz
Image sensor 1/3" progressive scan CCD 1.3 megapixel
Lens f=4.7 – 84.6 mm, F1.6 – 2.8, autofocus, automatic day/night
Horizontal angle of view: 55.2° - 3.2°
Minimum
illumination
Color: 0.74 lux at 30 IRE F1.6
B/W: 0.04 lux at 30 IRE F1.6
Shutter time 1/10 000 s to 1/4 s
Pan/tilt/zoom E-flip, Auto-flip, 100 preset positions
Pan: 360° (with Auto-flip), 0.2° - 300°/s
Tilt: 180°, 0.2° – 300°/s
18x optical zoom and 12x digital zoom, total 216x zoom
Pan/tilt/zoom
functionalities
Limited guard tour
Control queue
On-screen directional indicator
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC)
Motion JPEG
Resolutions HDTV 720p 1280x720 to 320x180
Frame rate H.264: Up to 30/25 fps (60/50 Hz) in all resolutions
Motion JPEG: Up to 30/25 fps (60/50 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and
Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Image settings Wide dynamic range, manual shutter time, compression,
color, brightness, sharpness, white balance, exposure control,
exposure zones, backlight compensation, fine tuning of behavior
at low light, rotation, text and image overlay, 3D privacy mask,
image freeze on PTZ
Audio
Audio streaming Two-way
Audio
compression
AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Input/output Requires multi-connector cable (not included) for external
microphone input or line input and line output
Network
Security Password protection, IP address filtering, HTTPS* encryption,
IEEE 802.1X* network access control, digest authentication,
user access log
Supported
protocols
IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, CIFS/
SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS,
Dy nD NS, NTP, R TSP, RT P, TCP, UDP, IGMP, R TCP, ICMP, DHCP, ARP,
SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® from Axis
Communications, available at www.axis.com
Support for AXIS Video Hosting System (AVHS) with One-Click
Camera Connection
Intelligent video Video motion detection, audio detection, Advanced Gatekeeper
AXIS Camera Application Platform enabling installation of
additional applications
Event triggers Video motion detection, audio detection, external input,
PTZ preset, temperature, memory card full
Event actions File upload: FTP, HTTP, network share and email; notification:
email, HTTP and TCP; external output activation; video and audio
recording to edge storage; pre- and post-alarm video buffering;
play audio clip
Data Streaming Event data
Built-in
installation aids
Pixel counter
General
Casing IP51-rated, metal casing (aluminum), acrylic (PMMA) clear dome
Memory 256 MB RAM, 128 MB Flash
Power Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W
20-24 V AC, max. 23.6 VA
24-34 V DC, max. 17 W
AXIS T8123 High PoE Midspan 1-port: 100-240 V AC, max. 37 W
Connectors RJ-45 for 10BASE-T/100BASE-TX PoE
Multi-connector (cable not included) for power in,
4 configurable alarm inputs/outputs, mic in, line mono input,
line mono output to active speaker
Edge storage SD/SDHC/SDXC slot supporting memory card up to 64 GB (card
not included)
Support for recording to network share (network-attached
storage or file server)
Operating
conditions
0 °C to 50 °C (32 °F to 122 °F)
Humidity 15 - 85% RH (non-condensing)
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN
61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B
Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR
22, EN 60950-1, KCC Class B
IEC 60721-4-3 Class 3K3, 3M3, EN/IEC 60068-2
Midspan: EN 60950-1, GS, UL, cUL, CE, VCCI, CB, KCC
Weight Camera: 1.9 kg (4.2 lb.)
Camera with drop-ceiling mount: 2.3 kg (5.1 lb.)
Included
accessories
AXIS T8123 High PoE Midspan 1-port, mounting kit for hard and
drop ceilings, smoked dome cover, Installation Guide, Installation
and Management Software CD, Windows decoder 1-user license
More information is available at www.axis.com
* This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (www.openssl.org)

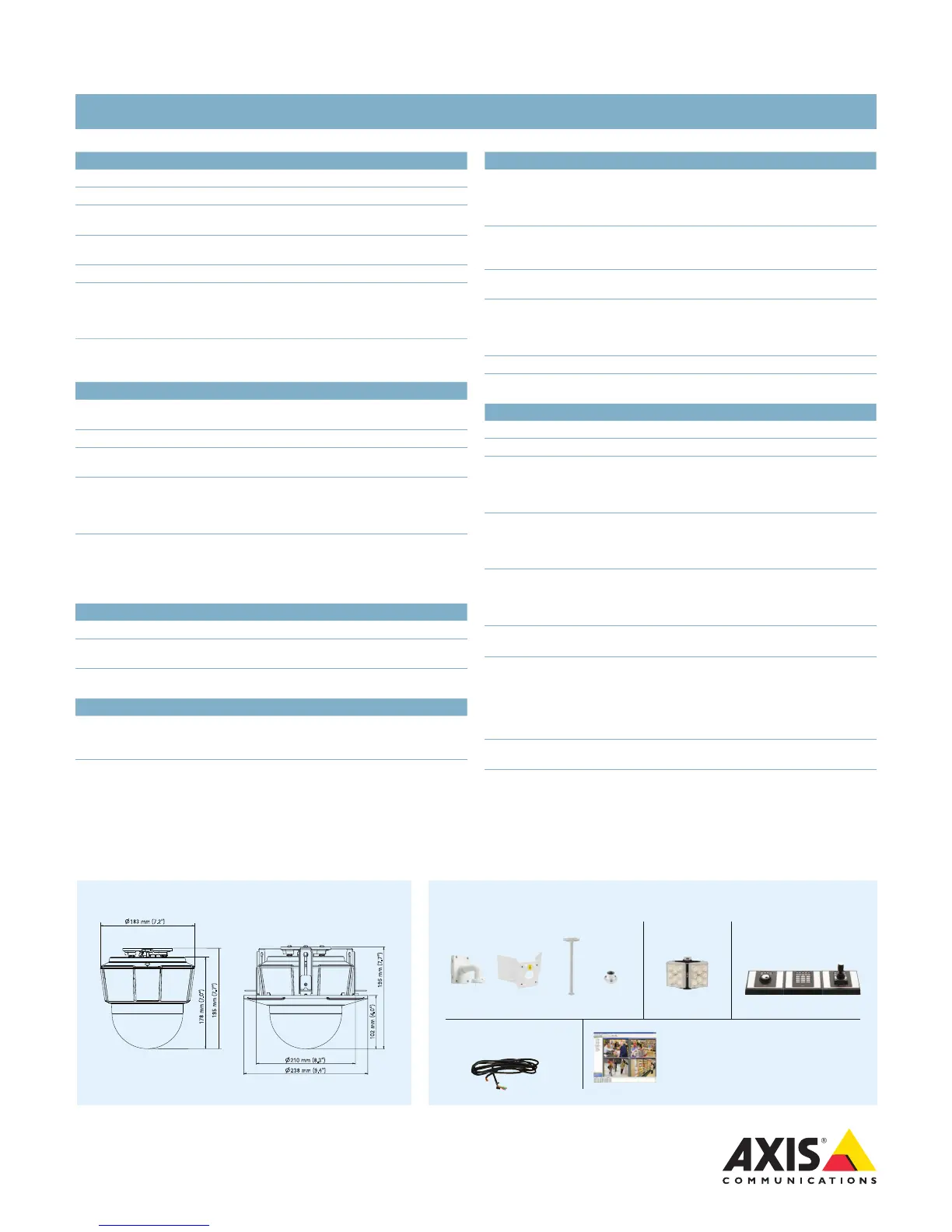

Dimensions
210 mm (8.3”)
238 mm (9.4”)
102 mm (4.0”)
195 mm (7.7”)
183 mm (7.2”)
178 mm (7.0”)
195 mm (7.7”)
Hard ceiling mount
Drop ceiling mount
Optional accessories
AXIS T8310 Video
Surveillance Control Board
AXIS T90A
Illuminators
AXIS T91A Mounting Accessories
Wall
Corner
Ceiling
Pendant kit
AXIS Camera Companion (included),
AXIS Camera Station and video management
software from Axis’ Application Development
Partners (not included). For more information,
see www.axis.com/products/video/software
Multi-connector cable for
AC/DC power, I/Os and audio

Axis P5534 Specifications

General

Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Pan range	0 - 360 °
Tilt angle range	0 - 180 °
Camera shutter speed	1/10000 - 1/4 s
Minimum illumination	0.74 lx
Sensor type	CCD
Optical sensor size	1/3 \
Digital zoom	18 x
Focal length range	4.7 - 84.6 mm
Video motion detection	Yes
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Power source type	PoE
Ethernet LAN (RJ-45) ports	1
Dimensions (WxDxH)	183 x 183 x 195 mm
Certification	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B, Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 60950-1, KCC Class B, IEC 60721-4-3 Class 3K3, 3M3, EN/IEC 60068-2
Processor model	ARTPEC-3
Flash memory	128 MB
Internal memory	256 MB

Weight and Dimensions

Weight	2300 g
