AXISQ1656BoxCameraSeries

Speciﬁcations

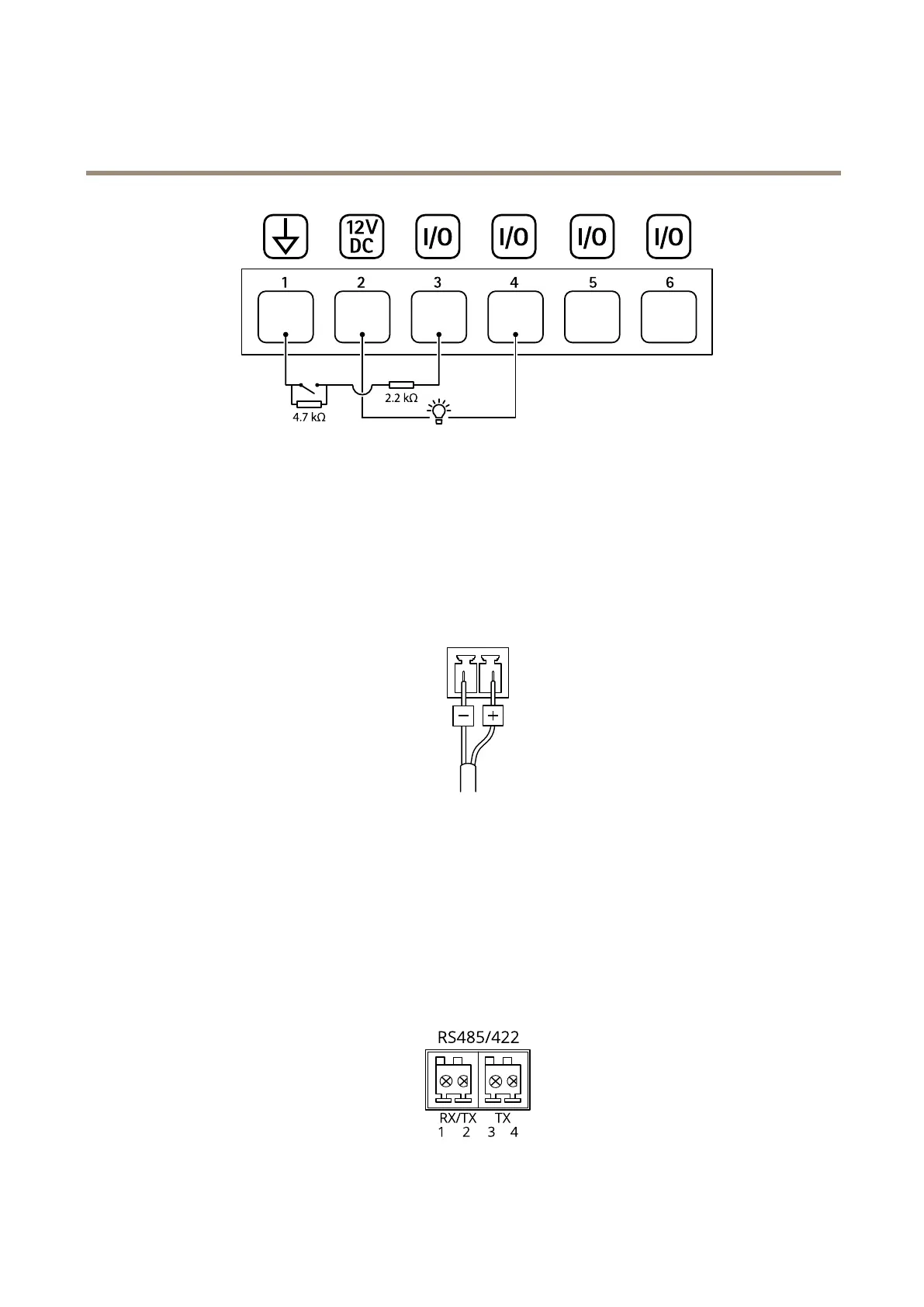

DCground

DCoutput12V,max50mA

I/Oconguredassupervisedinput

I/Oconguredasoutput

CongurableI/O

Powerconnector

2-pinterminalblockforDCpowerinput.UseaSafetyExtraLowVoltage(SELV)compliantlimitedpowersource(LPS)witheither

aratedoutputpowerlimitedto≤100Woraratedoutputcurrentlimitedto≤5A.

RS485/RS422connector

Two2-pinterminalblocksforRS485/RS422serialinterfaceusedtocontrolauxiliaryequipmentsuchaspan-tiltdevices.

Theserialportcanbeconguredtosupport:

•Two-wireRS485halfduplex

•Four-wireRS485fullduplex

•Two-wireRS422simplex

•Four-wireRS422fullduplexpointtopointcommunication
