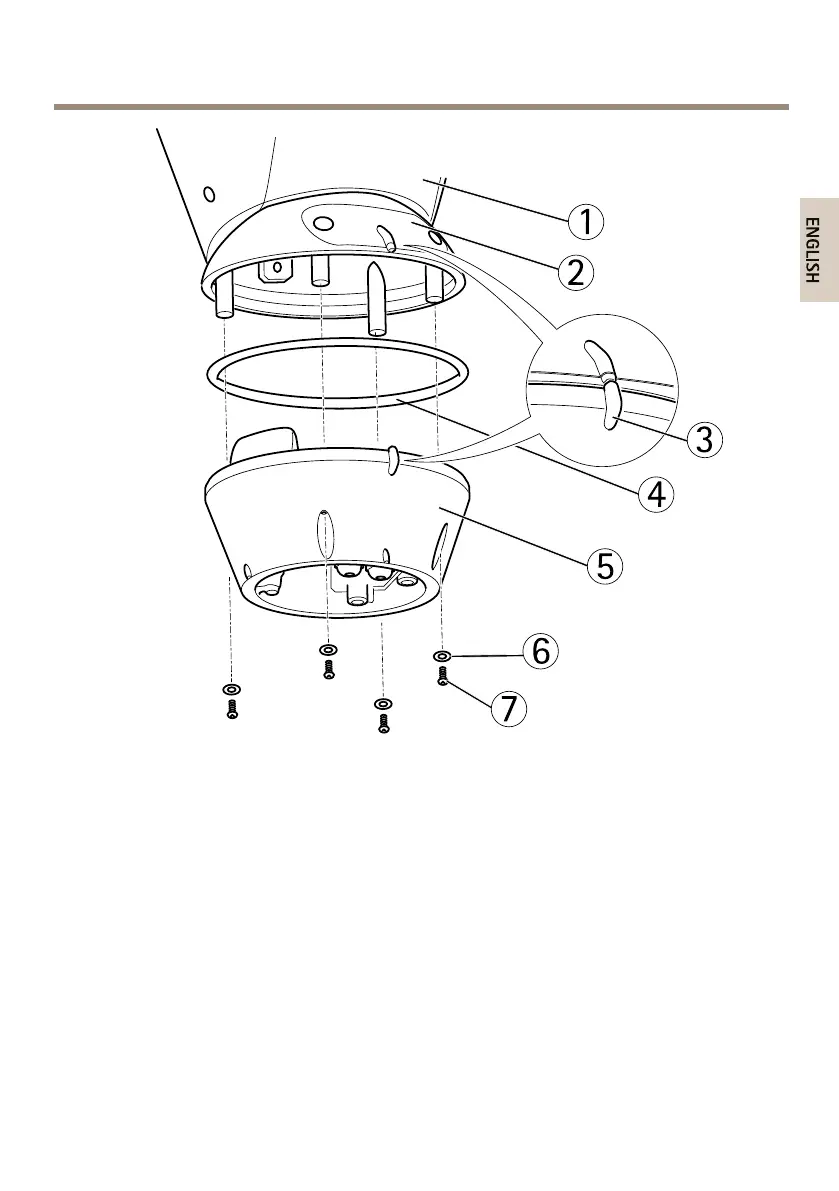

AXISQ86–ESeries
4
6
5
7
1
2
3
1
Pan/tiltunit
2
Congurationboardlid
3
Alignmentindicators
4
Seal
5
Base
6
Washer(4x)
7
Screw(4x)
4.Themechanicalinstallationiscomplete.Toaccessthecameraunit,seeAccessthe
CameraUnitonpage20.Seetheproduct’susermanualforinformationonhowto
accessthevideostream.
19
ENGLISH
