5 Mechanical installation
The modules must be mounted with a minimum distance of 5 mm to the next module.
Struts, mounting clamps, screws and other fixing elements must be commercially available and
corrosion-free. In particular, the fixing elements must be designed in accordance with the local wind
and snow loads.
Ensure modules are not subject to wind and now loads exceeding the maximum permissible loads.
5.1 Installation with clamps

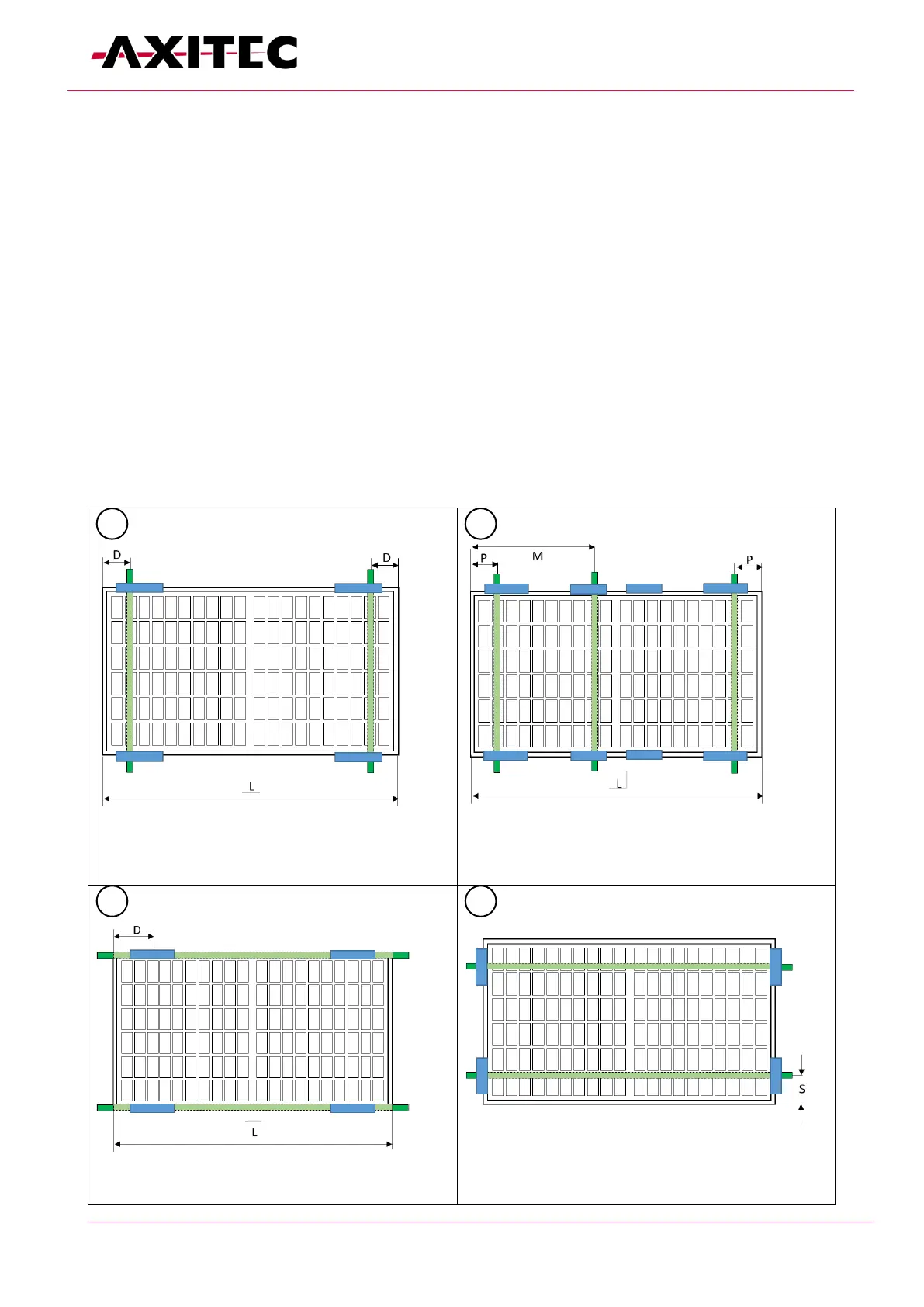

When using mounting clamps, the solar modules are to be mounted on the struts in at least four
locations on opposite sides. The clamps must be positioned inside the mounting zone. The module
must be securely fixed. The clamps must not be in contact with the front glass or deform the frame
in any way. Avoid shading effects from the clamps and mounting system.
It is recommended to use a clamp with a length of at least 40 mm. Avoid shading by the clamp. The
maximum tightening torque for the mounting clamps can be obtained from the manufacturer of the
clamps.
