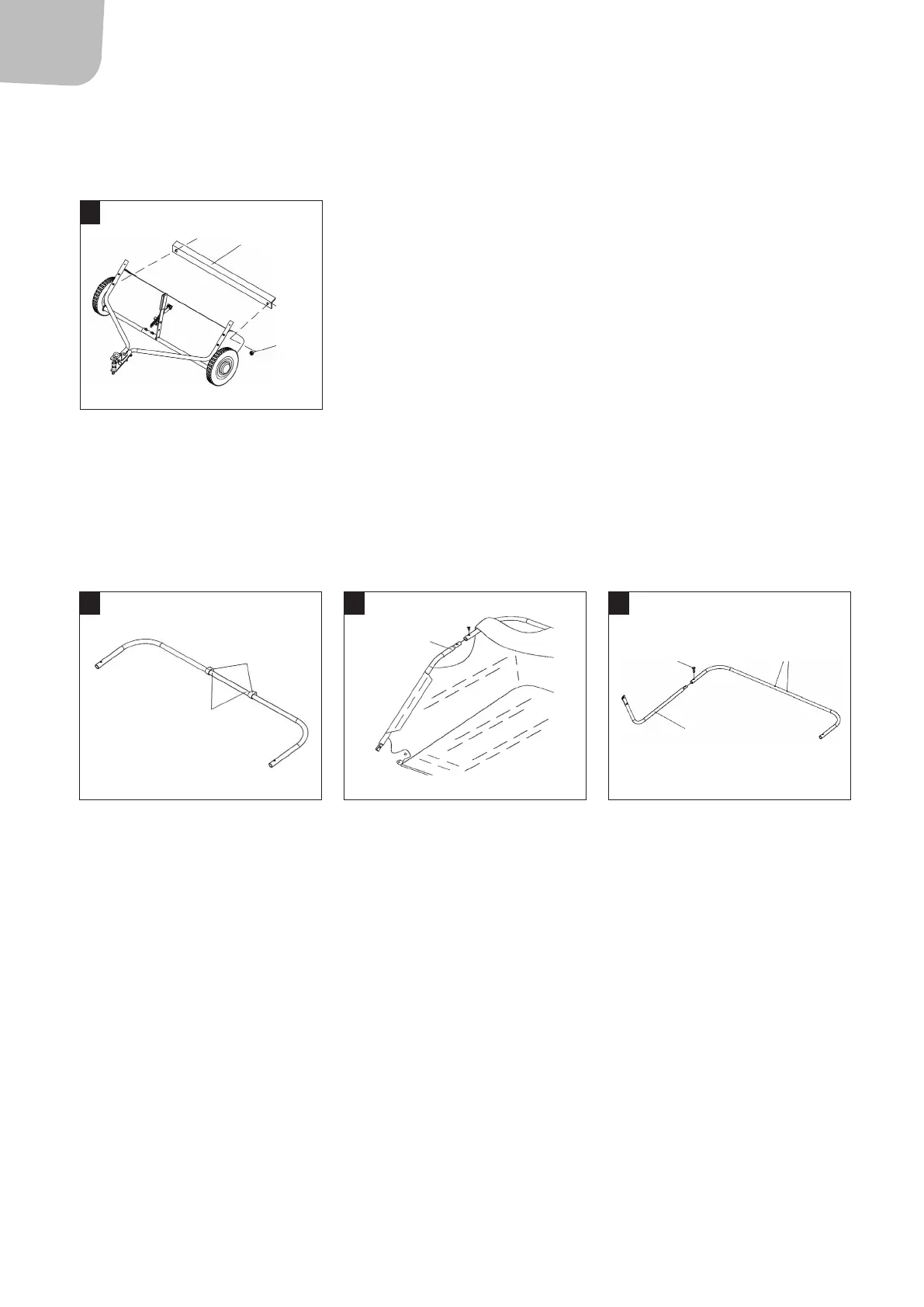

12. Assemble the Connecting Rod to the sweeper housing by using two sets of Hex Bolt M6x12 and Lock Nut M6 (g.9).
Assembling the hopper bag
1. Turn the upper rear tube of the hopper bag so that the holes in the middle are facing down (1) (g. 10). Slide the tube through the loops
along the upper seam (2) of the bag.
2. Insert the rear tube in the aps on the bag (g. 11).
3. Fit the tubes together (g. 11).
4. Turn the lower rear tube of the hopper bag so that the holes in the middle are facing up. Fit together with the front lower tubes (g. 12)
5. Place the lower tube in the lower part of the hopper bag. Fit together the upper and lower tubes (g. 13).
6. Place the lower support rod in the bag's front seam. Attach the support rod in the lower tubes (g. 14).
7. Secure the bag corners with the snap buttons (g. 15).
9
M6x12
hex bolt
Lock nut
M6
Connecting rod
10 11 12
1
2
Plastic plug
Plastic plug
Lower hopper
side tube
Upper hopper
side tube
Rear hopper tube
(brace holes on top)
M8 hex
lock nut
