Initial Assembly
19

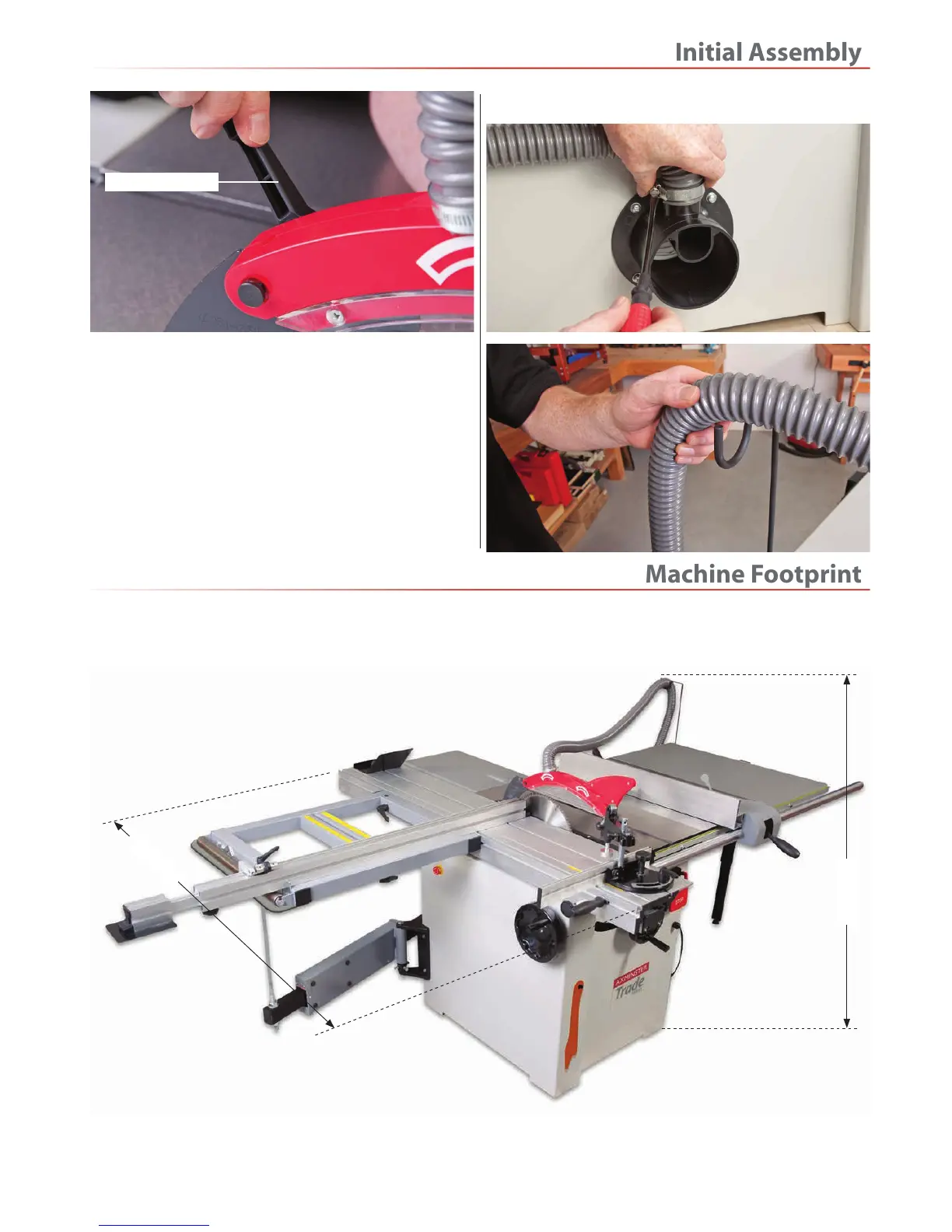

3. Place the remaining 50mm hose clip over the opposite
end of the hose and slot the hose down over the 50 mm
outlet on the dust extraction moulding (16) to the rear of
machine and tighten, see fig 85.
4. Slot the flexible hose down into the hose suppot
bracket (B), see fig 86.
Lift & shift handle
Fig 85-86
Machine Footprint
1,440mm
1,620mm
