AXTON AXB20STP - Wiring Diagram

– 8 –

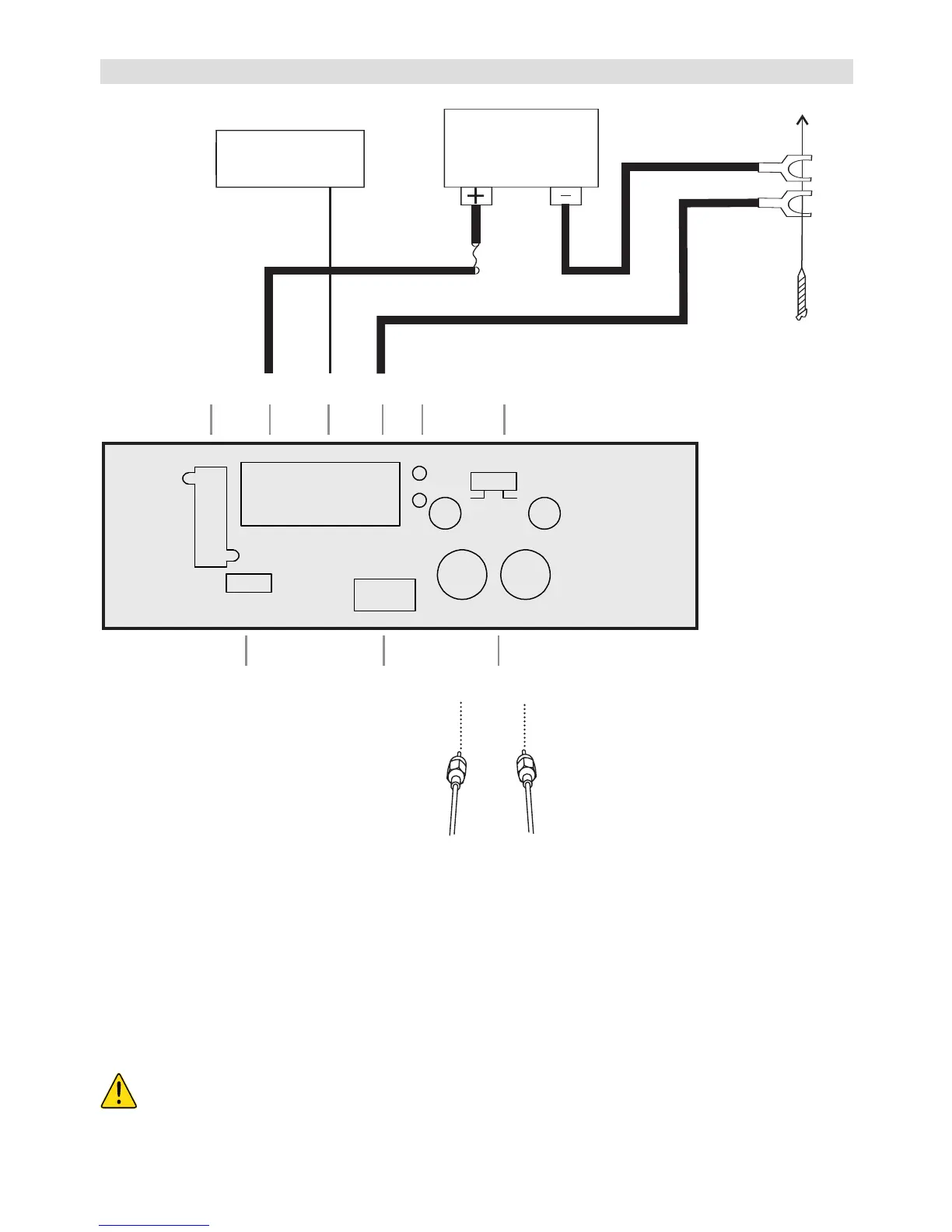

WIRING DIAGRAM
DANGER:
Use the specied amperage fuse only.
Higher amperage may cause serious damage or even a re.
MAIN
FUSE
Car battery
12 VDC
Headunit
Ground
REM ON/OFF
i.e. Amp remote
FUSE
AXB20STP
POWER INPUT
+12V REM GND
ON OFF
AUTO TURN ON
X-OVER SETUP
0dB 6dB
POWER
PRO
50Hz 150Hz
LPF GAIN
BASS BOOST
MIN MAX
RCA
R L
AUDIO INPUTS
HIGH LEVEL
–
+
–
+
AXB20STP
Active Subwoofer
q 

  
  
20 A
R+L from Low Level Audio Out
of the headunit.
Use a Y Adapter if you want
to directly connect to a mono
subwoofer output.
q Fuse (20A)
 +12V Power Terminal
 REM (Amp Remote) Terminal
 GND Power Terminal
 Power/Protect Status LED
 Switchable Bass-Boost 0 – 6 dB
 Auto Turn-On/Off for High Level Input
 High Level Input
 RCA Input
