EN-11

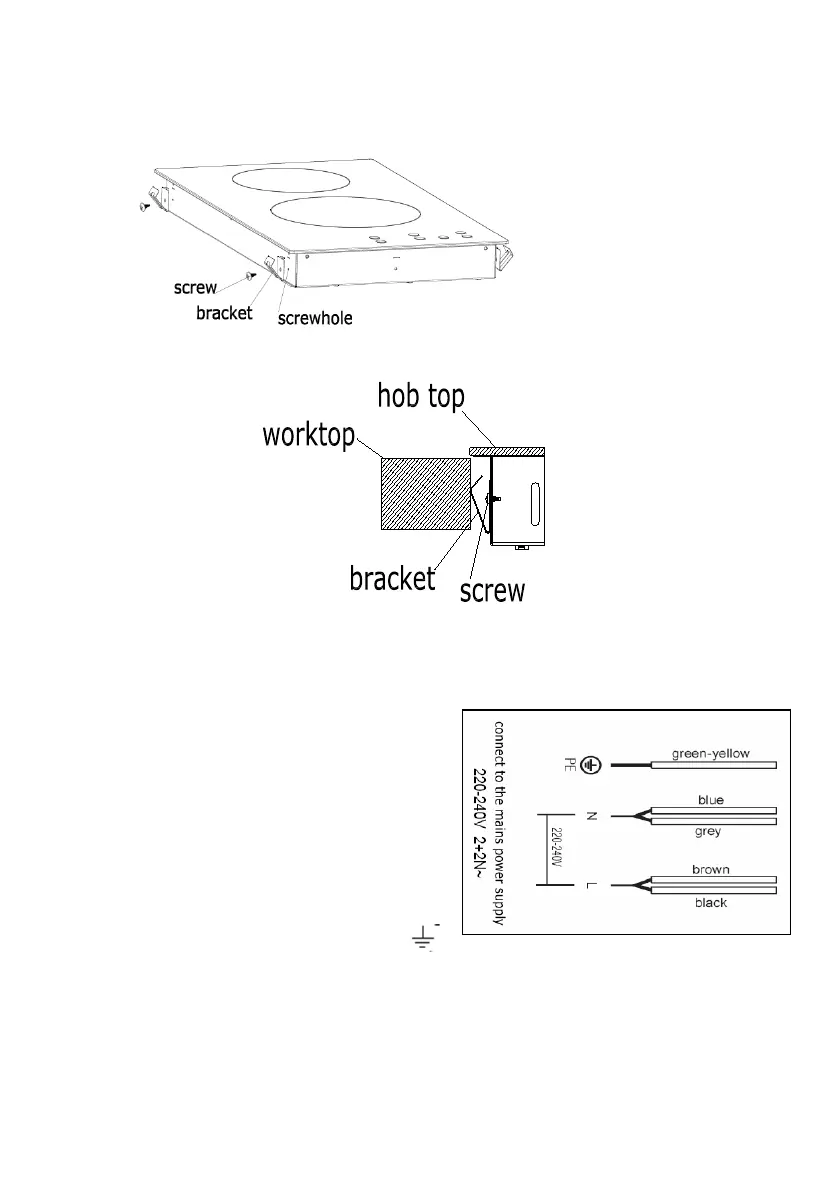

Replacing the mains supply cable
If the mains s upply cable is da maged, then i t must be replaced by an
appropriate replacement.
The mains s upply c able s hould be
replaced in accordance with the
following instructions:
Switch the appliance off at the
control switch.
Open t he t erminal b lock o n t he
underside of the hob.
Unscrew the terminal screws fixing the
cable.
The “ green-yellow” e arth wi re m ust b e
connected t o t he t erminal marked
.
It must be about 10 mm longer than the live and neutral wires.
The “ blue” neutral w ire m ust b e connected t o t he terminal marked w ith
letter ( N) - the live wire must be connected to the terminal marked with
letter (L).
