INSTALLATION
1. Install the fan according to below instructions.
(1)Fixthesixwheels[12]inthebase[11](Figure1).
(2)Disassemblethebasenut[13]frombody[9],putfanbody[9]
throughtheholeofbase[11],andxthemtightbybasenut[13]
(Figure2).
(3)Putmotorset[7]intotheholeofbody[9],fastenthemotorset[7]
withthexationscrew[8](Figure3).
(4)Disassemblethemountingnut[5]frommotorset[7],puttherear
fangrill[6]onmotorset[7],andalignthe3positioningpointto
theholesongrill,nallyfastengrillmountingnut[5].(Figure4).
(5)Fixtheblade[4]onmotorshaftandalignslotonbladetopinon
motorshaft,thencounterclockwisefastenbladecap[3]
(Figure5).
(6)Assemblefrontfangrill[2]tothereargrill[6],Fixthegrillwith
thecrewongrillbuckle.(Figure6).
Open the package and take out the products, make sure all
components are included, IM, remote control, etc.

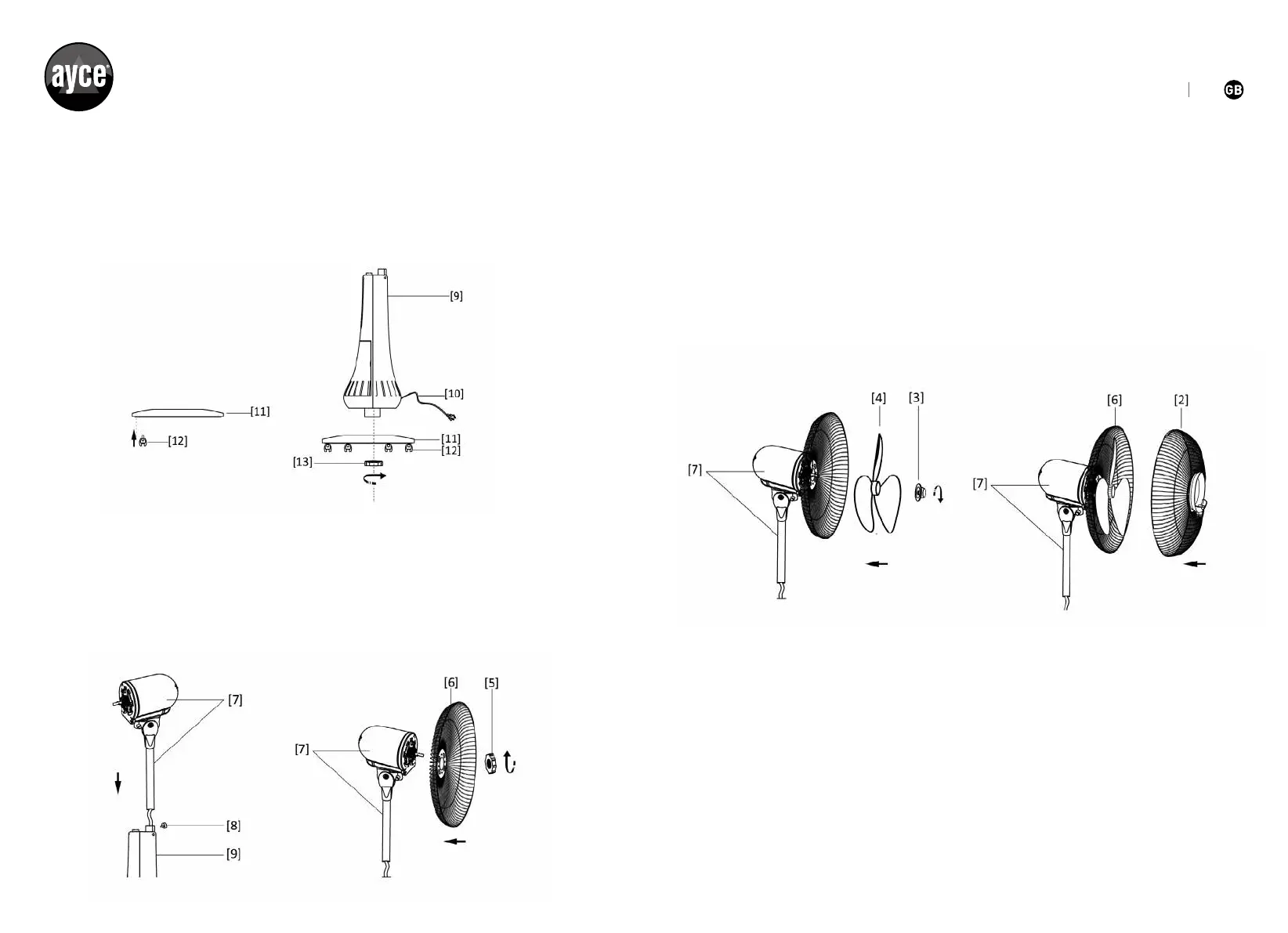

Figure 1
Figure 3
Figure 5
Figure 2
Figure 4
Figure 6
