2

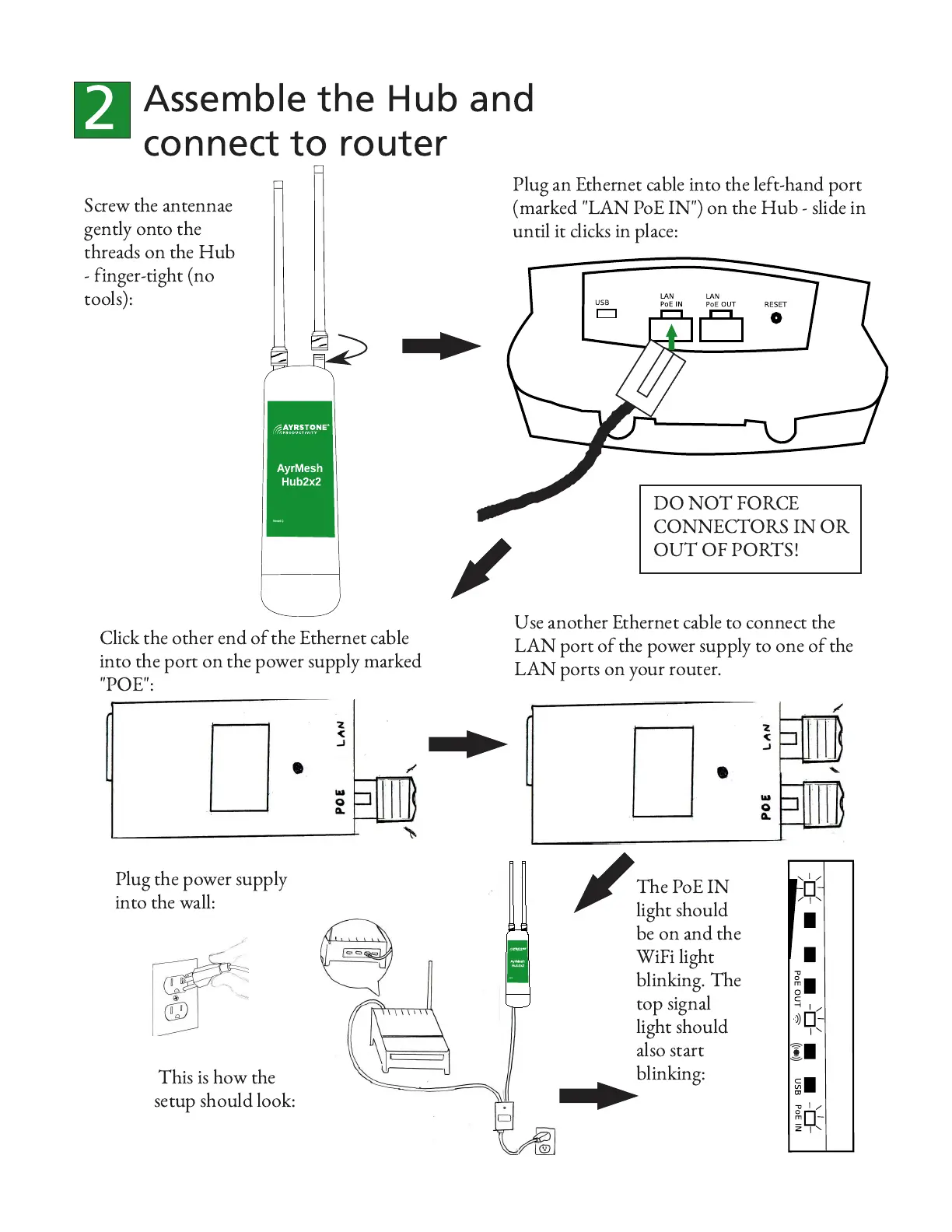

Assemble the Hub and
connect to router
Screw the antennae
gently onto the
threads on the Hub
- finger-tight (no
tools):
Plug an Ethernet cable into the left-hand port
(marked "LAN PoE IN") on the Hub - slide in
until it clicks in place:
Click the other end ofthe Ethernet cable
into the port on the power supply marked
"POE":
Use another Ethernet cable to connect the
LAN port ofthe power supply to one ofthe
LAN ports on your router.
Plug the power supply
into the wall:
This is how the
setup should look:
The PoE IN
light should
be on and the
WiFi light
blinking. The
top signal
light should
also start
blinking:
DO NOT FORCE
CONNECTORS IN OR
OUT OF PORTS!
