The pinout

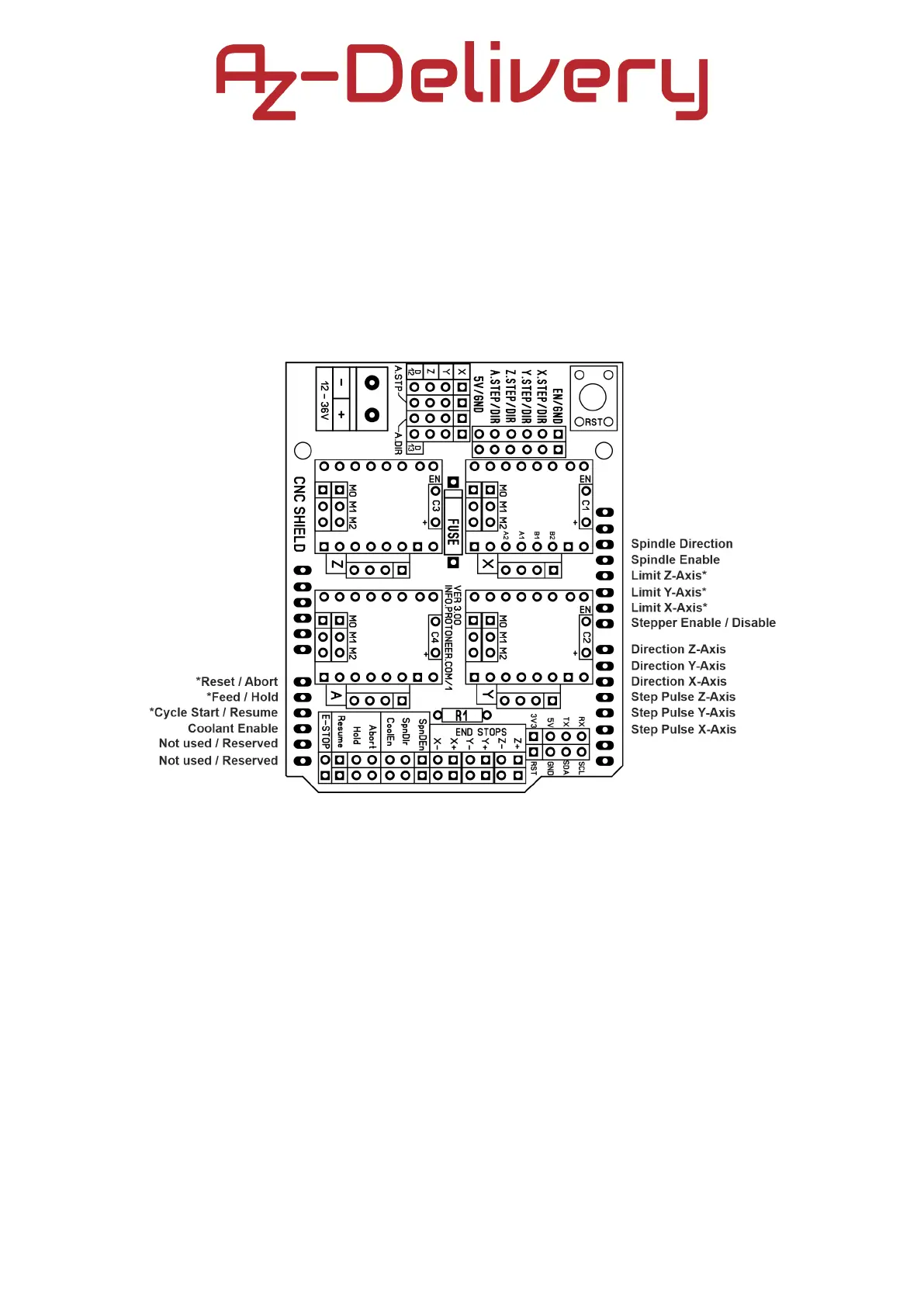

CNC Shield V3.0 has Atmega328p compatible pins. The pinout is shown on
the following image:
WARNING: Beware the orientation of driver boards. Wrong orientation will
destroy the driver module.
- 6 -
