Attaching the grommet (accessory part)

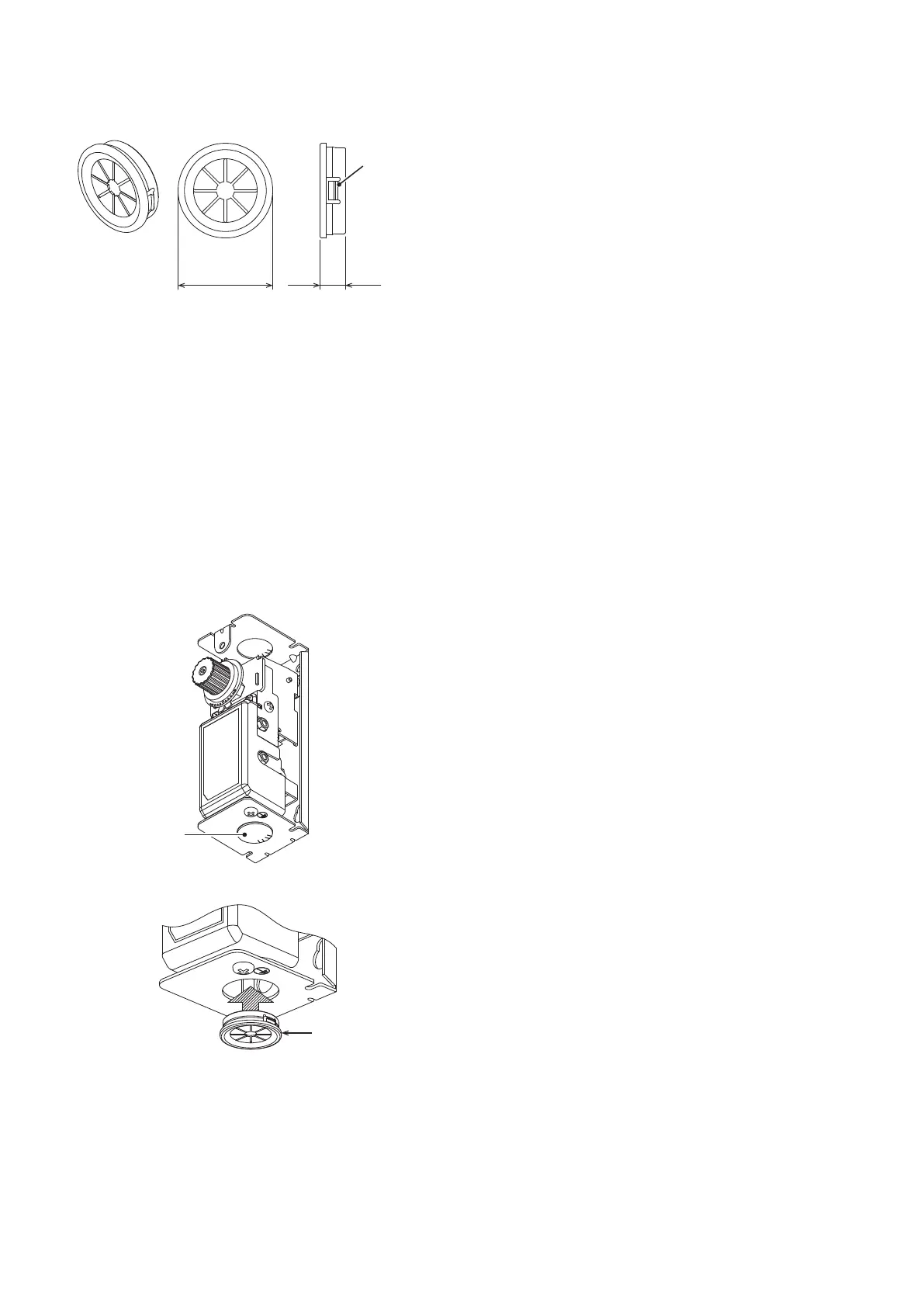

Figure 10. Grommet (mm)
If the knockout hole on the bottom is used and
seal connectors are not used, attach the included
grommet to the openings as shown in Figure 11.
The grommet prevents a finger from entering into
the opening in order not to cause electric shock.
Note: Before wiring, attach the grommet.
(1) Insert the grommet in the knockout hole as
illustrated in Figure 12.
(2) Push the grommet until the tab clicks.
(3) Ensure the grommet is rmly inserted.
Note: Do wirings through the grommet following the instructions
in this manual.
Figure 11. Knockout hole for attaching the grommet
Figure 12. Attaching the grommet
φ23.8 6.4
Tabs
(on both sides)
Knockout hole
(at the bottom)
Grommet
z
Wiring method
It it is recommended using cable glands for wiring.
If cable glands are not used, hold the wires near
the product in order to reduce tension from the
wires.
(1) According to the position of cable inlet/outlet,
open a knockout hole.
(2) Remove the protrusions or burrs at the opening.
Note: There are two knockout holes prepared for wring at the
top and bottom of the product.
(3) Check the electric wires to use.
•
High insulation performance
•
Enough current capacity
(4) Pull in the wires through the knockout hole,
connect the wires to the screw terminals (marked
R, B, and W) on the microswitch using the round
terminals (M4 size).
(5) Ground the product.
(6) Connector other devices and power supply.
(7) Check that the wires are correctly connected.
