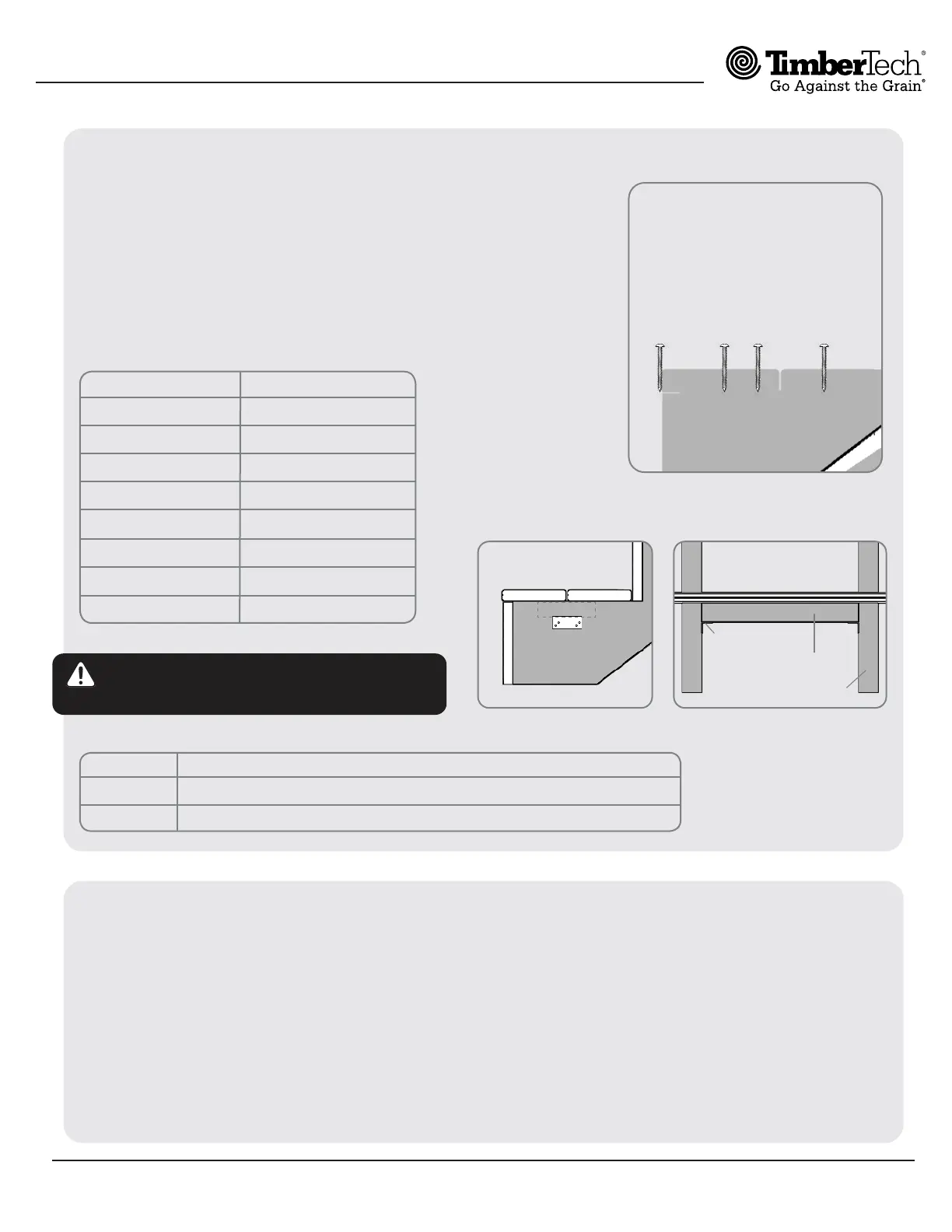

Square Shouldered Boards/Trimming a TimberTech Deck
Trimming a TimberTech Deck
TimberTech Fascia Boards:
• For Fascia and Riser Installation, see Fastening Guidelines
on page 4.
TwinFascia
®
• Cedar and Grey
• 12’ lengths – 9/16” thick by 12” wide.
Fascia
• All TimberTech PRO and EDGE colors
• 12’ lengths – 9/16” thick by 12” wide.
TimberTech Stair Risers
• Use as a riser for stairs.
• Can also be used as a fascia board for a 2x8 fascia board.
• 12’ lengths and 9/16” thick x 7-1/4” wide.
TwinRiser
®
• Cedar and Grey
Riser
• All TimberTech PRO and EDGE colors
TimberTech PRO
™
, TimberTech EDGE
™
, TwinFinish
®
, ReliaBoard
®
, and DockSider
®
Additional PRO Terrain and EDGE Prime Components
General Stair Installation
Support
Bracket
Bracket Nails
2x6 Support
1.5”x2.0” Simpson Strong Tie A23Z Galvanized Connecting Angles
1-1/2” Simpson Strong-Tie N10D5HDG (0.150 in diameter, 0.315 in head diameter) galvanized nails
PRO Terrain and EDGE Prime
and EDGE Prime+
Front View
16” O.C. Maximum
Bracket &
Nails
Stringer
2x6 Support
Stair Installation
TimberTech does not recommend installing boards on steps without a riser board.
• Stairs should be constructed per local code requirements.
• Ensure the stringer step is at least the depth of two full boards plus a 1/8” to
3/16” gap between boards.
• For gapping requirements, see page 3.
• Ensure there is at least one stringer for support in the middle of the stair span.
• Stair landings and multi-level decks where there is a step down should use the
same structural support as required on stairs.
PRO Terrain, EDGE Prime and EDGE Prime+ must be
used as a veneer in a stair tread application. Please
see figure to the right.
TimberTech Stair Stringer Spacing Chart
Board
Prime & Prime+
Premier
DockSider
TwinFinish
Legacy (where available)
Reserve (where available)
ReliaBoard
Terrain
Maximum Spacing
16” When used as as veneer
9”
21”
12”
10"
10”
9”
16” When used as a veneer
