1ª 10155 ES 9 - 2009
8

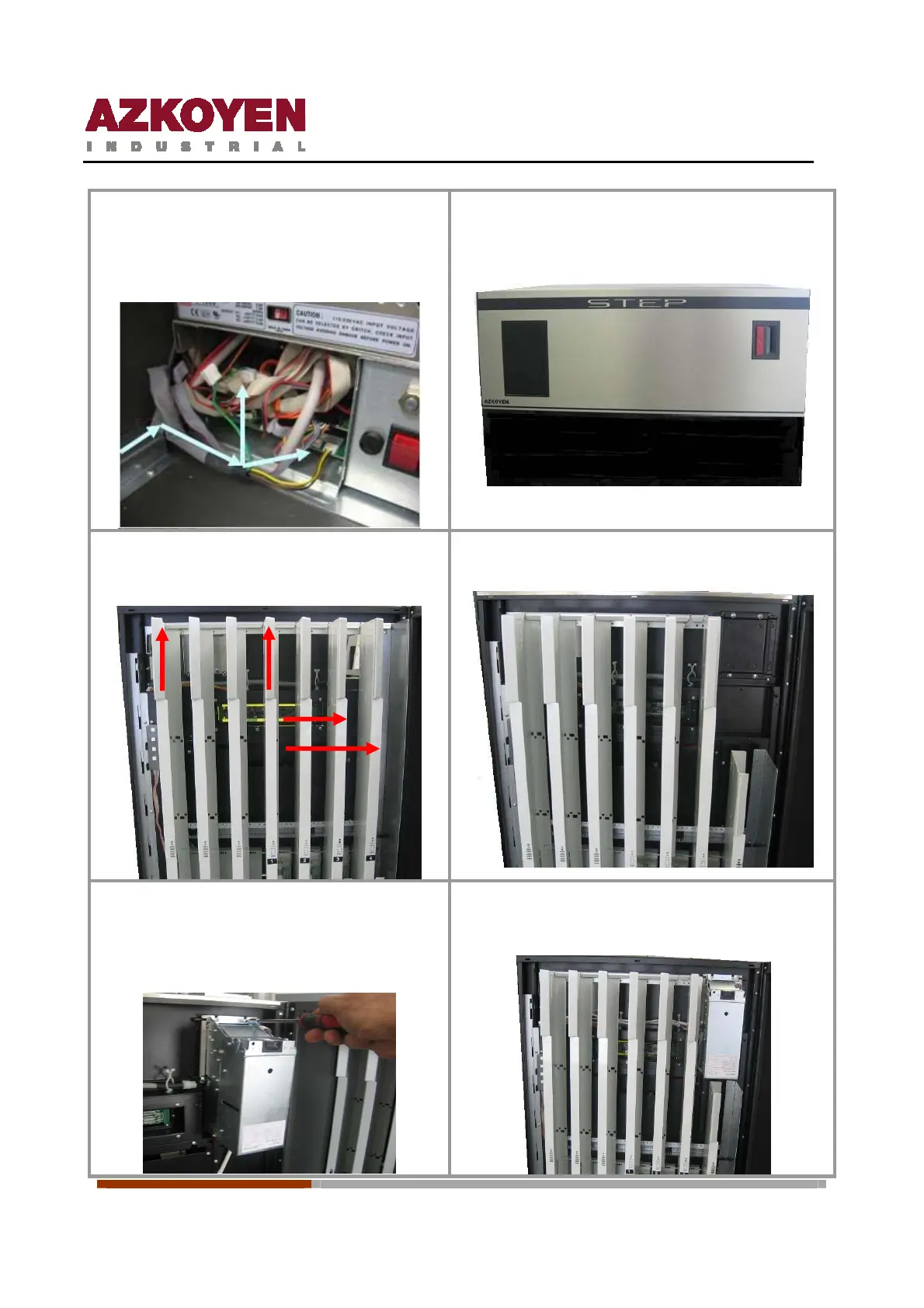

11. Connect the communication cable to the
port on the control board, connector J7 and
the power supply to the I/O board connector
J12.
12. Replace the glass and the new front panel.
13. Remove the gauge walls, the plastic and
metal side wall.
14. Place the new walls, and the new gauge.
15. Remove the cover of the reader and with
the same screws fasten the reader as
shown. Connect the MDB wiring loom of the
reader to the wiring loom previously
installed.
16. Tilt the grid down again. Consult the
programming manual to programme the note
reader.
