B-52 ACTPRO Active Systems - Instruction Manual
THE BEAUTY OF POWER
ACTPRO
15
EXAMPLE #2

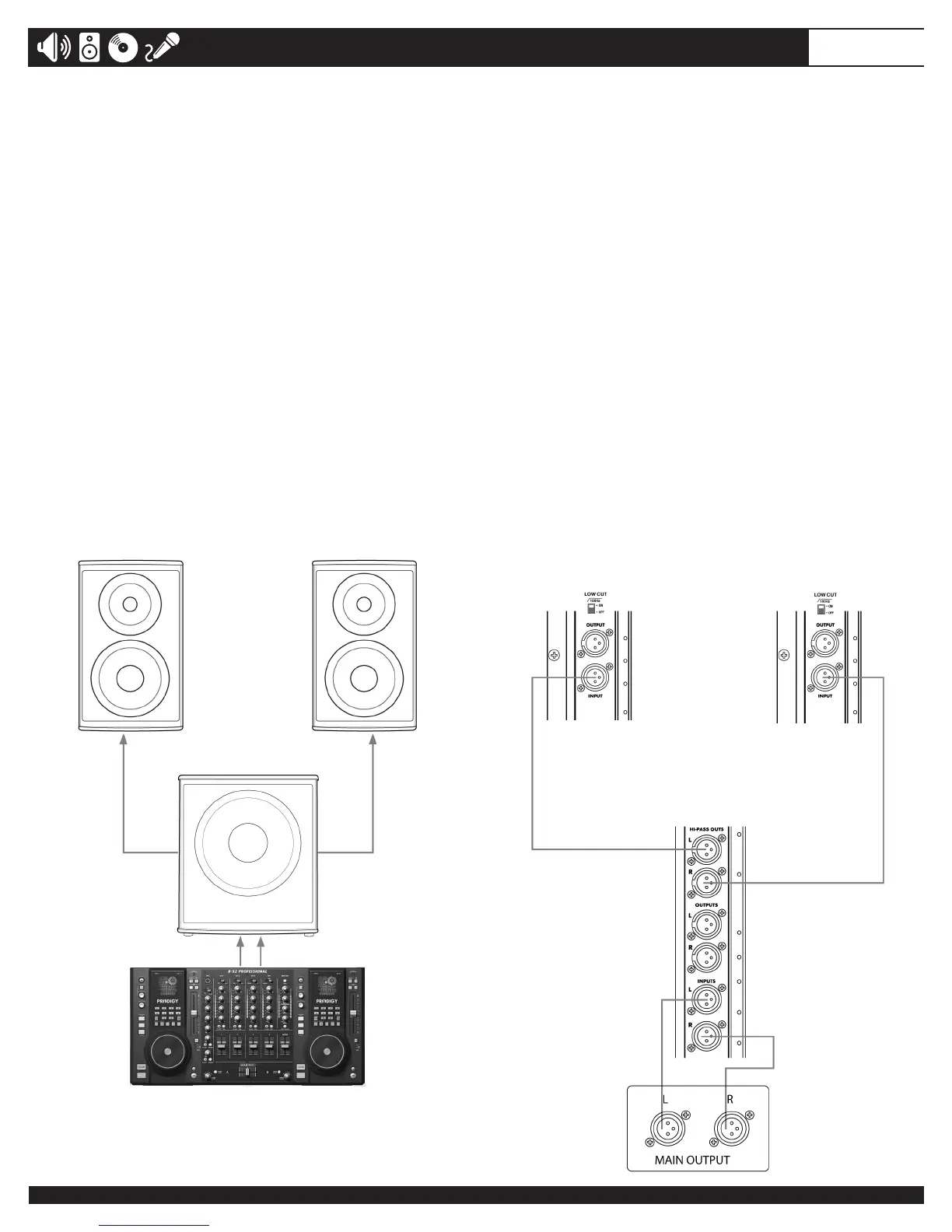

This example shows a two-channel (stereo) setup utilizing one subwoofer and two full-range cabinets. Audio
signals for the Left and Right channels are provided by the mixer. Audio output from the mixer is connected to
the L and R INPUTS of the ACTPRO18S. The Left HP OUTPUT from the ACTPRO18S is connected to the INPUT
on the left full-range cabinet. Likewise, the Right HP OUTPUT from the ACTPRO18S is connected to the right
full-range cabinet.
Note: If you are using a subwoofer other than ACTPRO18S for your setup, and this subwoofer does not have
100Hz High Pass outputs but only Full Range outputs, set the 100 Hz FILTER on you ACTPRO full-range cabi-
nets to the ON position.
Note: If using connection set-up below, set the LOW-CUT switches on the Full-range speakers to the OFF
position. The signal is processed by the ACTPRO18S subwoofers.
